3. Structure and function
3.1 System overview
The following overview displays the basic system components.

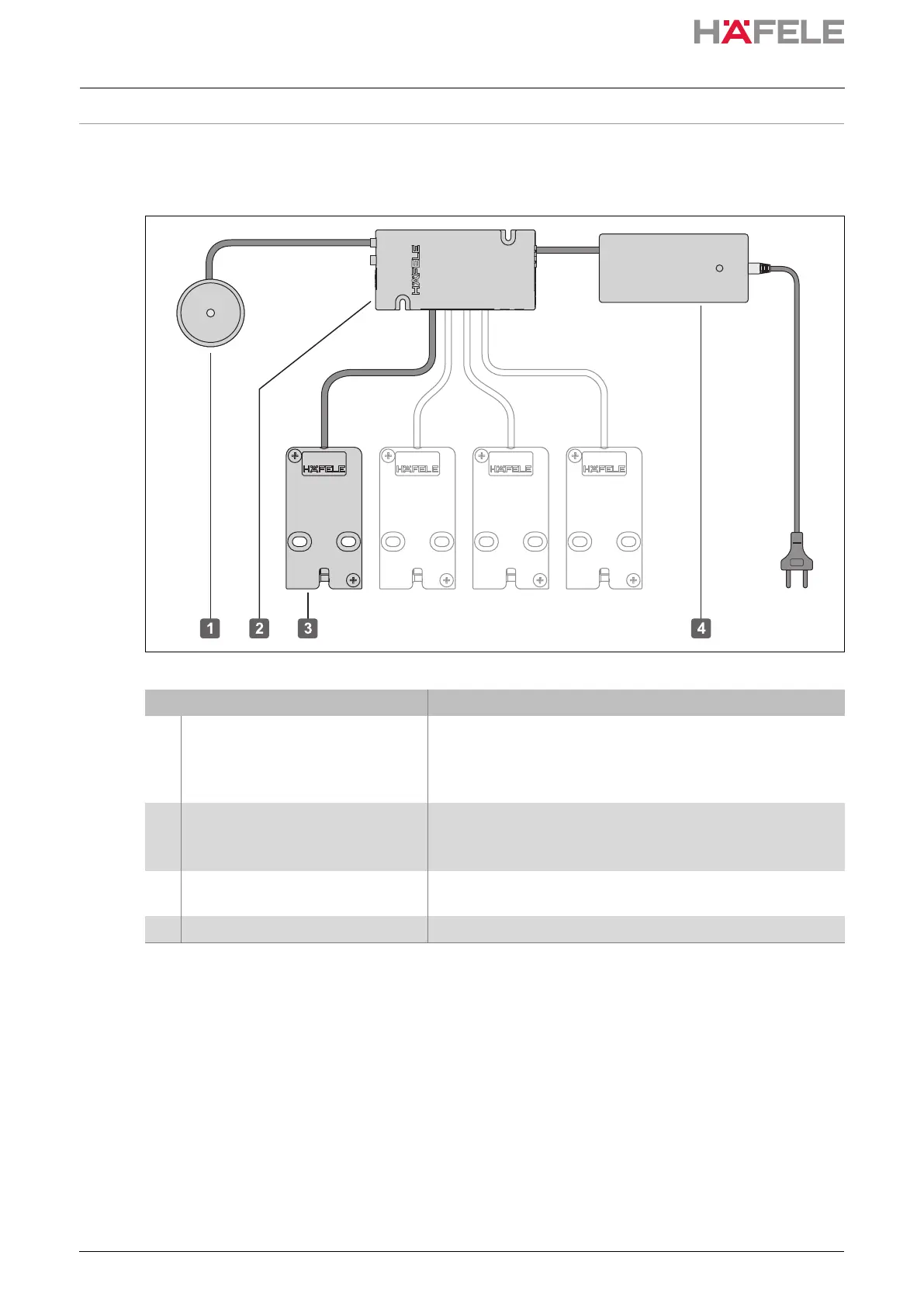

Fig. 1: Overview
Basic components Description
1 Antenna FAN 200 • Reader unit with integrated LED
• LED red/green
Red: In operation, lock engaged
Green: Lock disengaged
2 Furniture terminal
FT 200 / FT 200 CAP
• System control unit
• Connections for max. 4 furniture locks
EFL 3 / EFL 3C
3Furniture lock
EFL 3 / EFL 3C
• Electronically operated furniture lock
4 Power supply unit PS 4 • Voltage supply
