10. Installation examples
Installation is dependent on:
• The installation situation
• the components in use
10.1 Alarm on FT 200 / FT 200 CAP
Signal in the event of a break-in or unauthorised unlocking of an EFL 3 / EFL 3C by connecting
an alarm system to the FT 200 / FT 200 CAP (macro required).

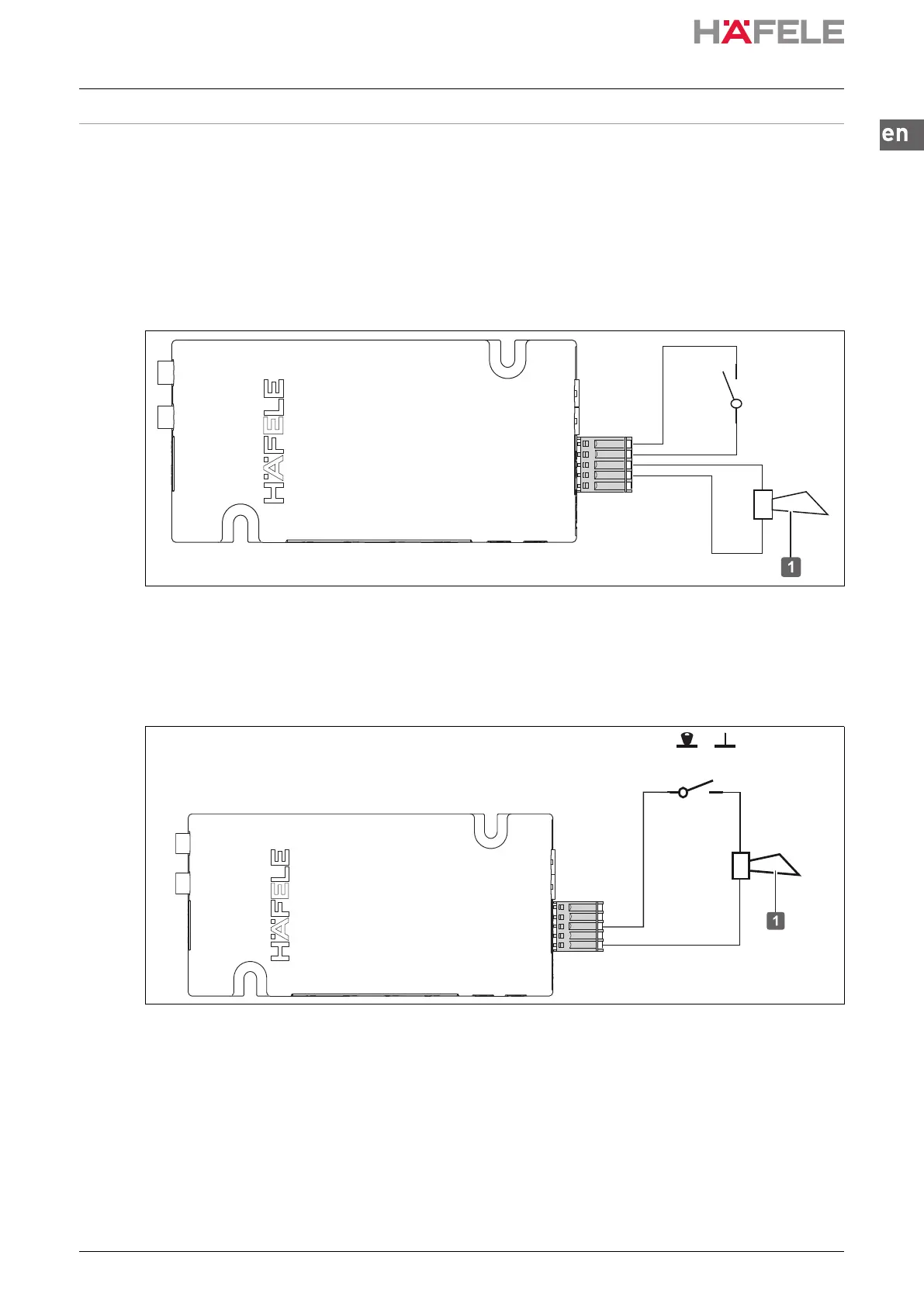

Fig. 4: Installation example 1 - Alarm [1] at FT 200 / FT 200 CAP
10.2 FT 200 / FT 200 CAP as a switching device for the alarm
FT 200 / FT 200 CAP only activates the alarm if all EFL 3 / EFL 3C are locked.
Fig. 5: Installation example 2 - FT 200 / FT 200 CAP as a switching device for the alarm [1]
FT 200
FT 200 CAP
Vin
Vout
AUX
Input
Input
COM
NC
NO
FT 200
FT 200 CAP
Vin
Vout
AUX
Input
Input
COM
NC
NO
ON
OFF
