As with any fixed electrical installation product, it is important to check the tightness at the various connection points of the installation during the
annual inspection. They must be in phase with the following torques:
18. Electrical maintenance

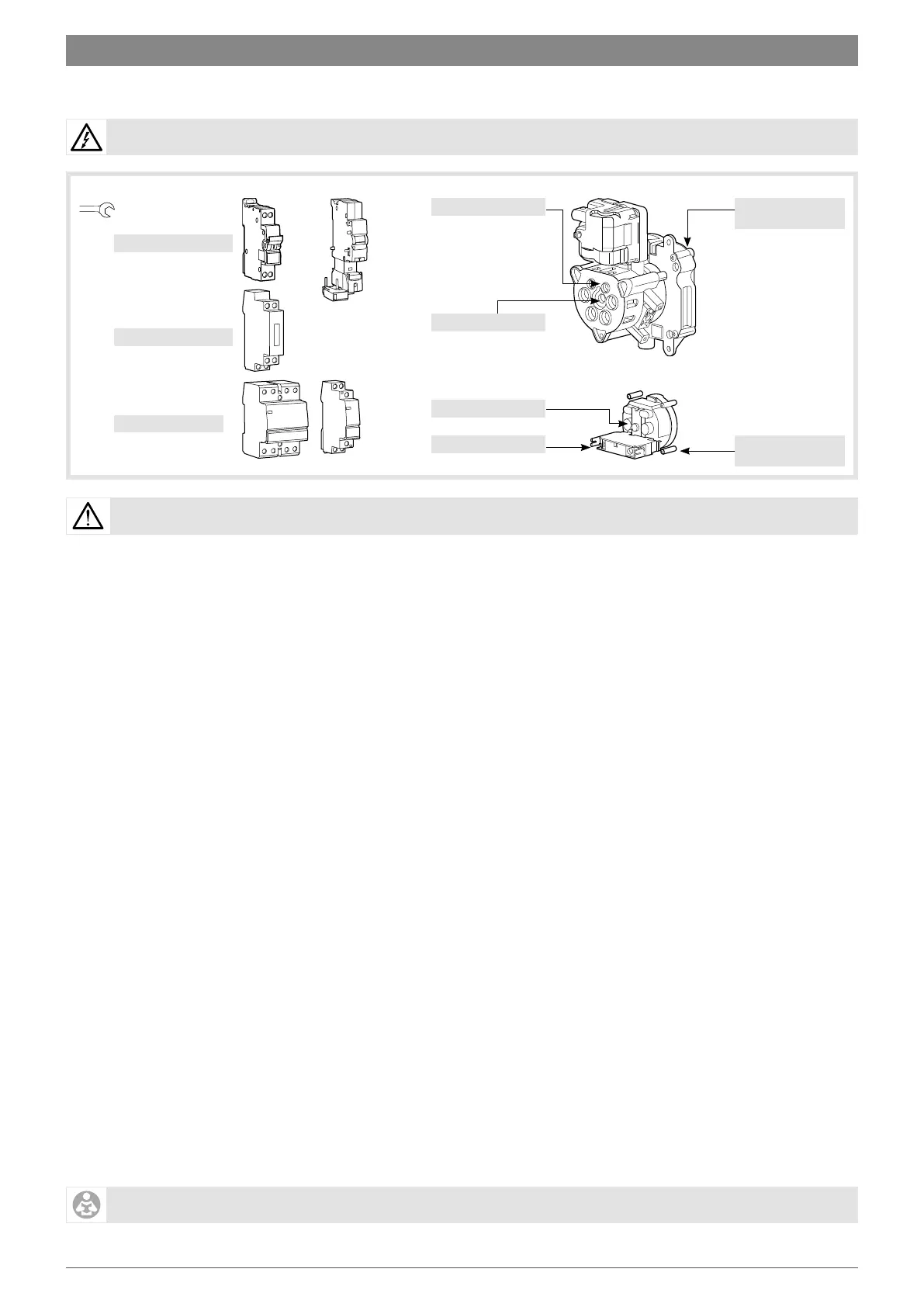

Tightening torques
2 N.m circuit breaker
M3T2S assembly:
0.6 N.m
M2 assembly:
0.5N.m
2 N.m energy meter
3 N.m contactor
CP/PP: 0.4 N.m
L1- L3/N/E: 1.2 N.m
CP/PP: 0.4 N.m
L/N/E: 0.8 N.m
Respect the tightening torque; risk of electrical shock.
For more details, refer to the maintenance manual for charging stations 6LE007370A.
After opening the charging station for wiring, configuration or maintenance reasons, you must put the cover back in place and adhere to the
tightening torques. Refer to chapter 13. Closing the charging station.
