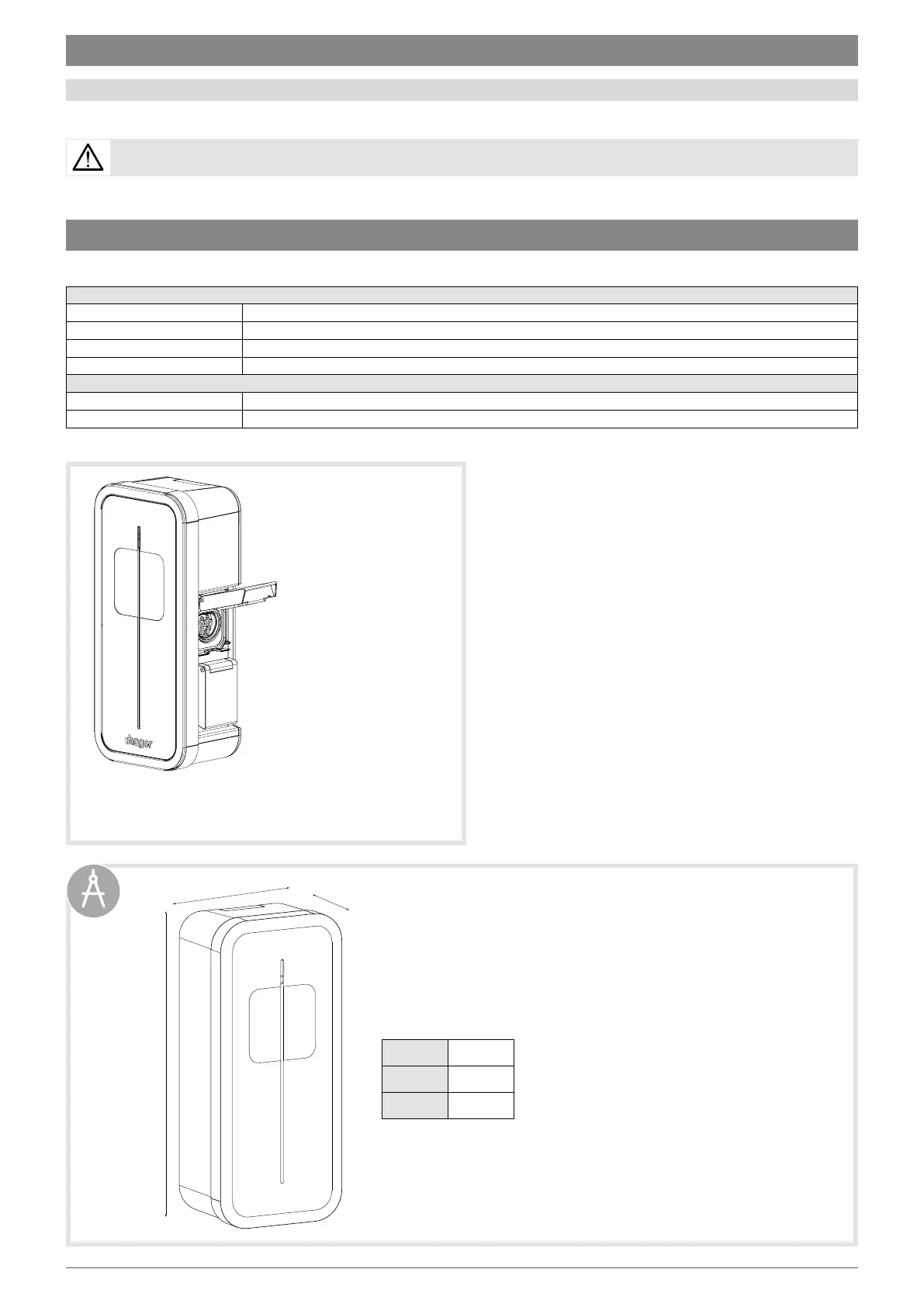

1. Please read before carrying out any electrical wiring on the charging station
1.1. Wiring the shunt coil (Shunt Trip function)
The electrical wiring of the shunt coil of this new charging station has been modified compared to the old Hager Witty Premium and Witty Eco stations.
To prevent any malfunctions in the charging station, please refer to chapter 7. Wiring the shunt coil MZ203 (Shunt Trip function).
2. Overview of the standard range
Description of the product reference structure
Reference XEV1K07T2 for example:
XEV1 code for the charging station 1 charge point
K key-controlled access (Key)
04/07/11/22 charging station power in kW
T2 T2S mode 3 socket (secure T2 socket)
Other references
XEVAxxx accessory for charging stations
XEVSxxx spare part for charging stations
Charging stations with T2/T2S socket
Ref.: XEV1K04T2 / XEV1K07T2 / XEV1K11T2 / XEV1K22T2
(a)
(b)
(c)
a (mm) 549
b (mm) 250.5
c (mm) 173
