35
1.3 m
from
the
floor

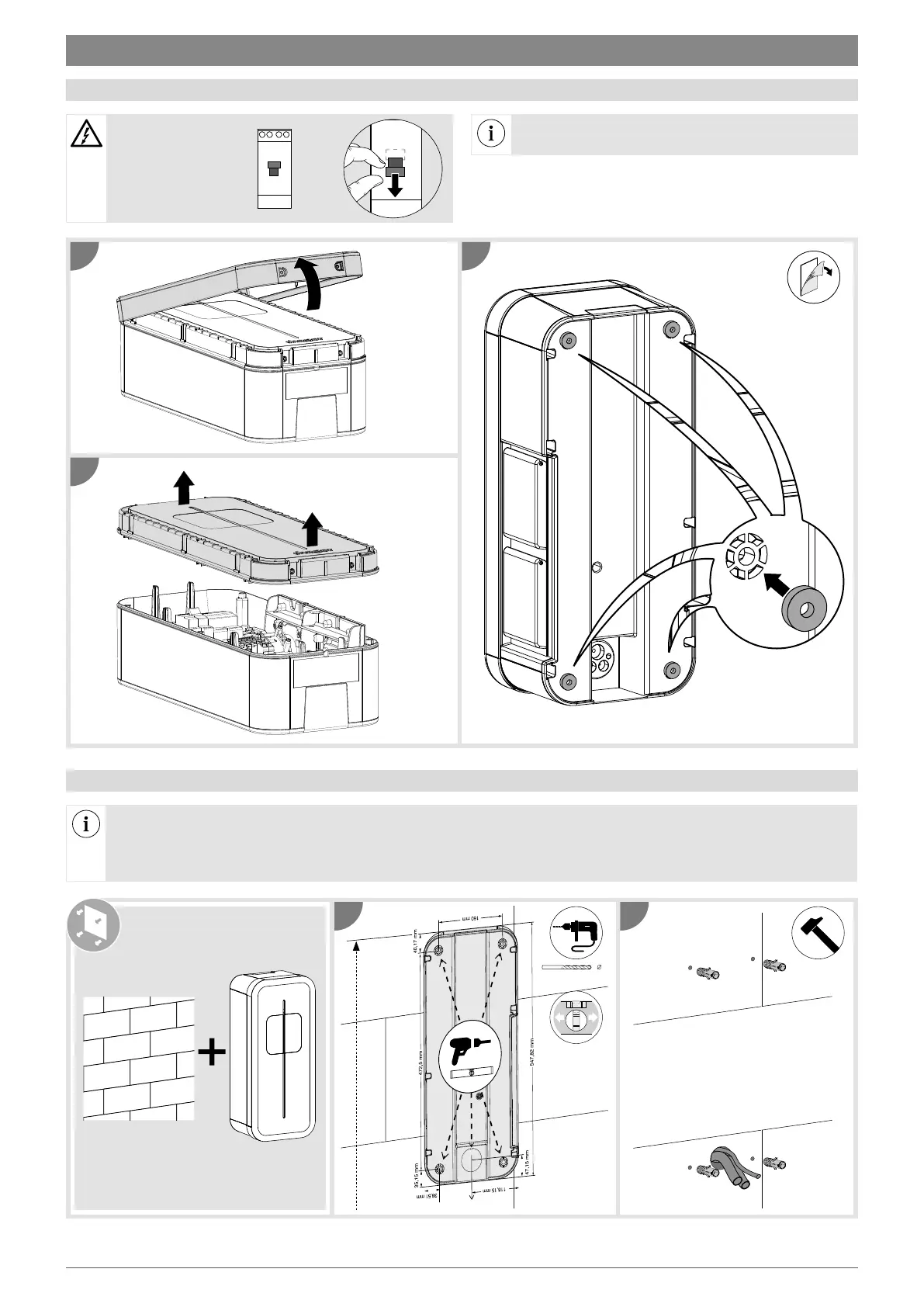

6.1. Opening
When leaving the factory, the frame and the front panel are not
screwed on, and the cable of the front LED electronic board is not
connected.
6. Installation
1
2
3
6.2. Mounting
Before mounting the charging station, please ensure that all of the cables are present:
• 3 Ph + N + Earth for a three-phase charging station, wire diameter: 5G10 or 5G16 flexible or rigid or 1Ph + N + Earth for a single-phase charging
station, wire diameter: 3G10 or 3G16 flexible or rigid,
• an SYT2 remote reading cable, or failing that, a cable with 1 twisted pair (wired connection) with a TIC board,
• a 2-wire cable (2 x 1.5 mm
2
) for the “Shunt Trip” function and/or the Day/Night (D/N) function (optional),
• the minimum wire diameter for a charging station with a current rated at 32 A is 10 mm².
1
2
8
The charging station
must be switched off
before opening.
ID 30 mA
NN
