16/64 CMp | Function
Bosch Rexroth AB, RE 15409 Version 08.2022,

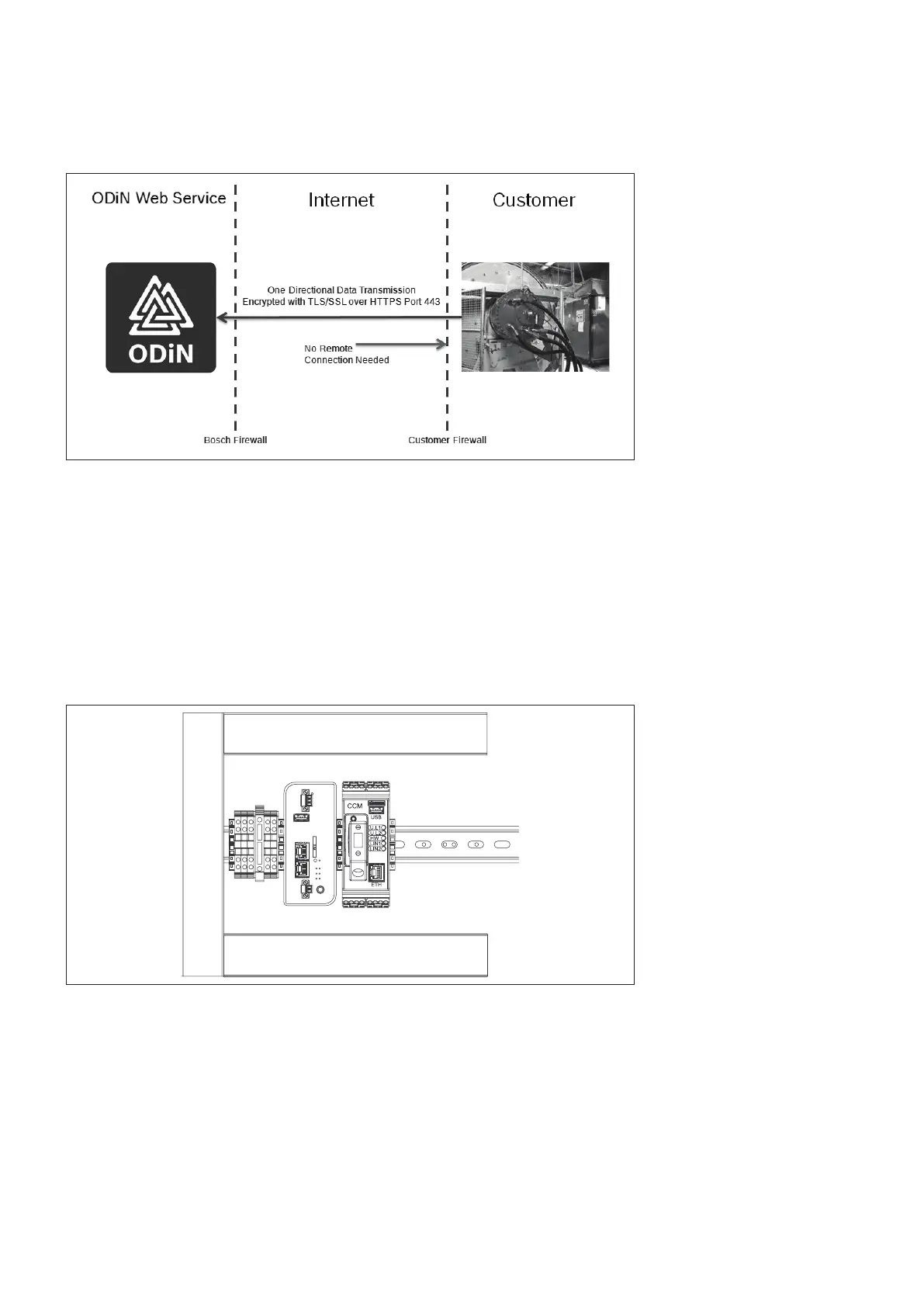

The transfer of data is encrypted to improve the security, see Fig. 2.
Fig. 2: Data transfer
The order code for the main article S-Link Hardware Package (SLHP) gives an
overview of the drive system that is monitored, as number of actuators (hydraulic
motors), number of Drive Units (PEC, PAC, DUe, DUc,) and the added number of
sensors in the package.
The S-Link Hardware Package contains sub blocks to simplify the handling. The
blocks are described in this document, see 4: Ordering code
The S-Link Monitoring Unit (SLMU) describes the conguration of the box
containing the active parts of the S-Link function.
Fig. 3: S-Link monitoring unit
The S-Link Mounting Package (SLMP) species the assembly alternatives for the
box. The S-Link Sensor Package (SLSP) handles the add-on sensors needed to
improve the condition monitoring of the system. This block will also handle the
adapters for mechanical connection to the hydraulic system and the cables needed
for the complete installation.
The complete delivery can contain a number of SLSP packages depending on how
many additional sensors to install.
