34/64 CMp | Technical data
Bosch Rexroth AB, RE 15409 Version 08.2022,
6.3.5 Adapter tube
Function
This adapter can be used to install temperature and/or pressure sensors in the
drain line from the motors and pumps.
Table 21: Dimensions adapter
Type A B C D E Max pressure
mm mm bar
50 G 1 ¼" G ¼"
G ¼"
30 30 50
51 G 1 ¼" G ½"
52 G 1 ½" G ¼"
53 G 1 ½" G ½"
54 G 1 ½" G ¼" G ⅜"
DD00078678
DD00078681

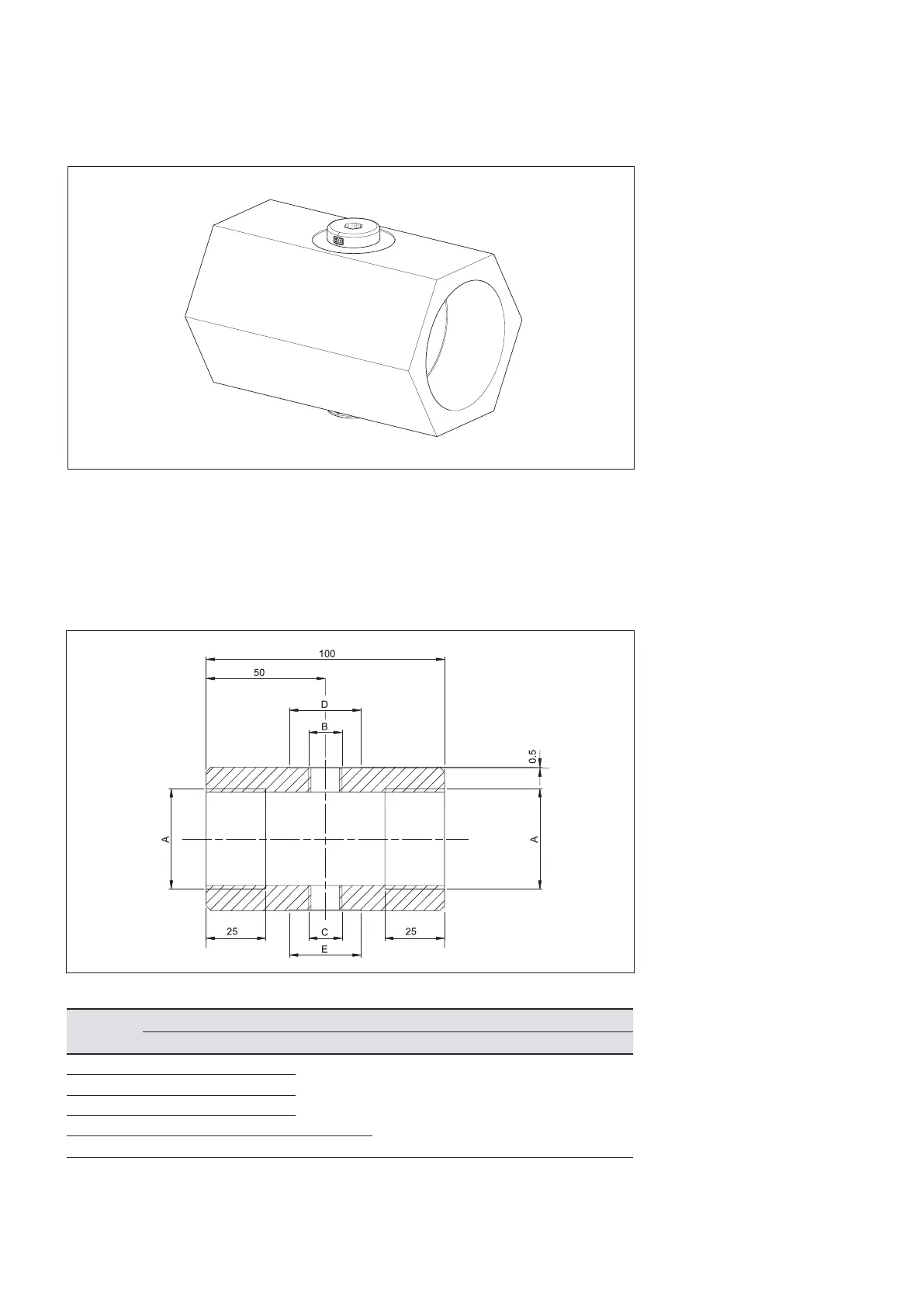

Fig. 32: Adapter tube, type 50, 51, 52, 53, 54
