Hägglunds CMp - Page 43

RE 15409, Version 08.2022, Bosch Rexroth AB
Installation | CMp 43/64
Screw M10X30 25X25
X 4
X 4
X 4
Washer M10
Hexagon nut M10

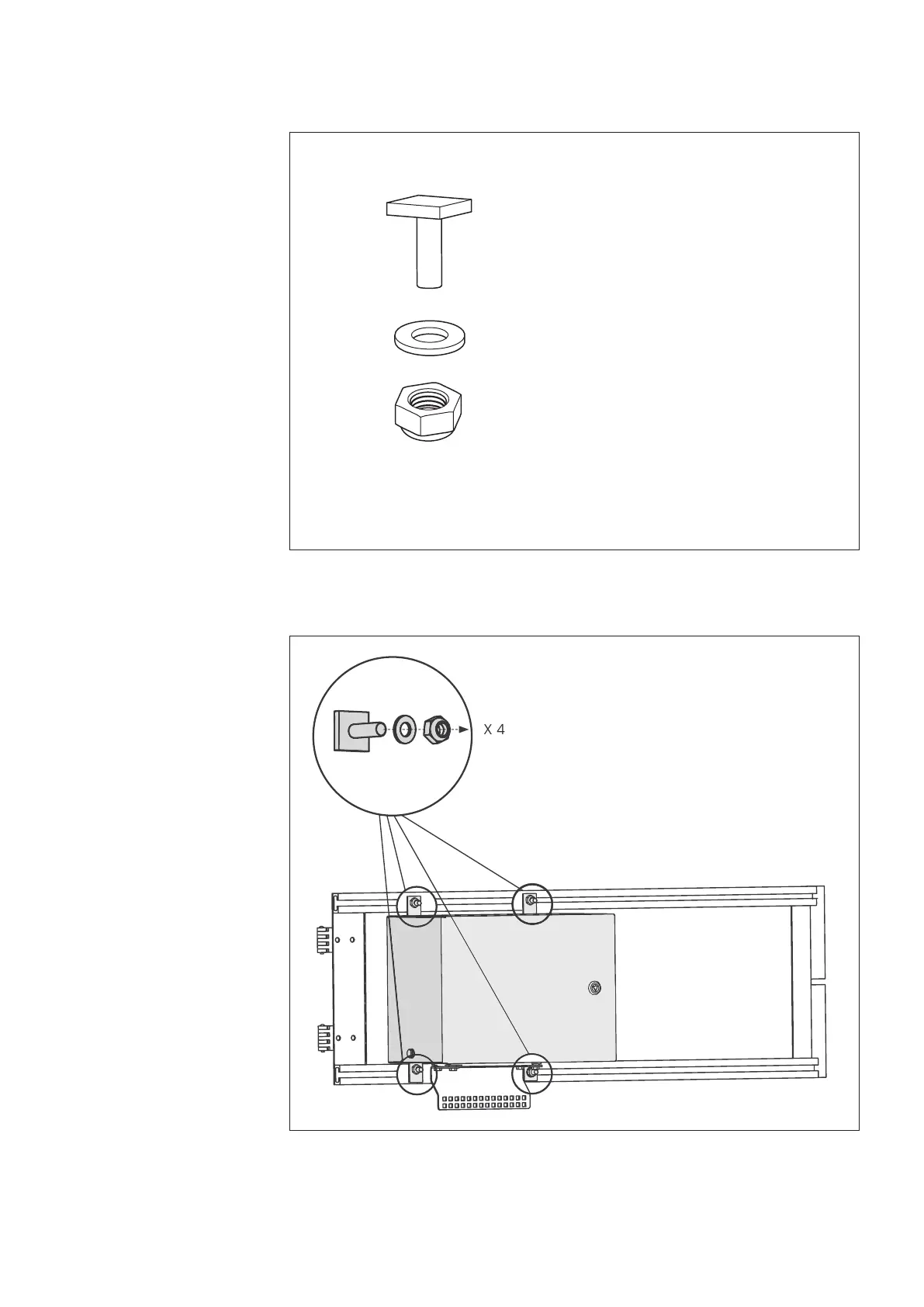

1. Mount the box with
the screws to the
swing frame on the
side of the DU.
Fig. 42: List of screws, nuts and washers
DD00077980
X 4
DD00077987
