Rev.7 11

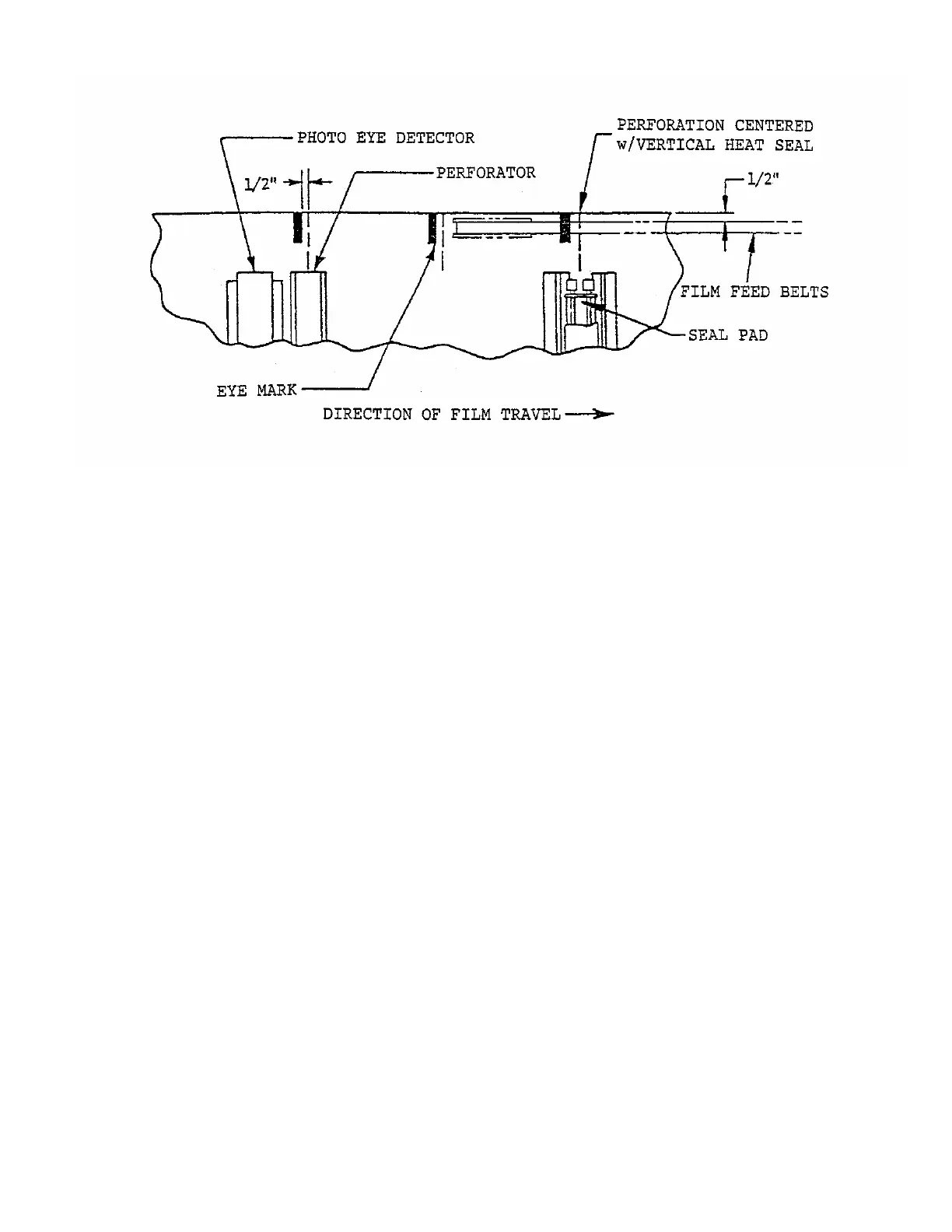

FIGURE 4
POSITIONING THE VERTICAL HEAT SEAL
The centering of the Bag with the Fixed Fill Opening is determined by the position of the Vertical Heat Sealer.
• Note: Do not be concerned with location of the label on the bag during this procedure.
1. Loosen the two Lock Knobs on the Carriage Locks, which secures the Vertical Heat Sealer Carriage.
2. With the Mode Selector Switch in the Hand position, using the Jog Button, cycle the machine to be sure
there is a complete bag around the Fixed Fill Opening.
3. Compare the center of the Bag with the center of the Fixed Fill Opening. Measure the distance from the
center of the Bag to the center of the Fixed Fill Opening. Move the Vertical Heat Sealer that same distance in
either direction to center the Bag with the Fixed Fill Opening.
4. Using the Jog Button cycle the machine several times to be sure the Bag is centered, if not repeat Step #3
as many times needed.
5. Tighten the Lock Knobs to secure the Vertical Heat Sealer in that position.
