PRODUCT SLAPPER AND WIGGLER
The purpose of the Product Slapper is to insure that all the product in the product chamber falls into the bag
during the fill cycle. During this cycle, the Slapper administers a sharp blow to the product in the chamber,
causing it to fall into the bag below.
The Product Wiggler prevents product in the Hopper from "bridging". The product remains separate and
flows easily into the bag. Parts on these systems are subject to wear, and noisy operation of these systems will
result when replacement is necessary. Inspect these parts for evidence of wear and replace as needed.
CAUTION: DISCONNECT POWER BEFORE PERFORMING ANY INSPECTION.
PRODUCT LOW LEVEL DETECTOR SENSITIVITY SETTING
If the machine is shutting down before the Volumetric Hopper is empty or the machine is not shutting down
when the Hopper runs empty, the Product Low Level Detector could possibly need adjustment. To adjust
remove the black screw from the back of the Detector and inside you will find another screw. By turning this
screw clockwise, the sensitivity will decrease.
Keep in mind, the sensor must be installed so the sensor will not read the Hopper.

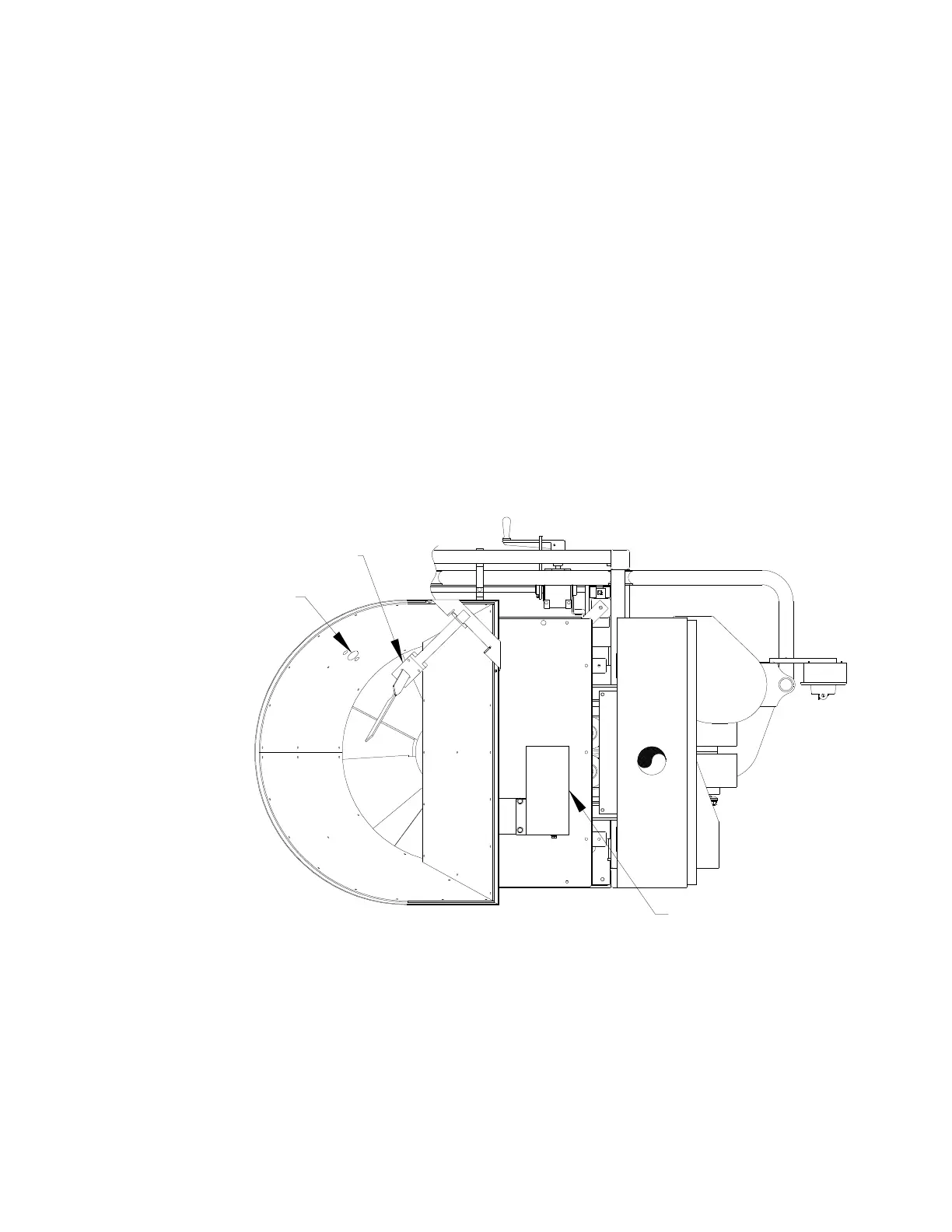

PRODUCT LOW LEVEL
DETECTOR
PRODUCT WIGGELER
PRODUCT SLAPPER
FIGURE 11
