Hamer 525WT - Page 45

9974
SCALE
DRAWN BY:
SIZE REV
TITLE:
DWG. NO.
TJB
DWG NO.
Hamer LLC
REMOVE ALL BURRS
SHEET 1 OF 3
SURFACE FINISH TO BE 125 MICROINCHES
2/22/2005
MINNEAPOLIS, MINNESOTA
B
AND TOLERANCES ARE
9974
1:6
UNLESS OTHERWISE SPECIFIED
DATE:
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP CORNERS
FRACTIONS 1/32
DECIMALS 2 PL .02
DECIMALS 3 PL .005
ANGLES 1/2

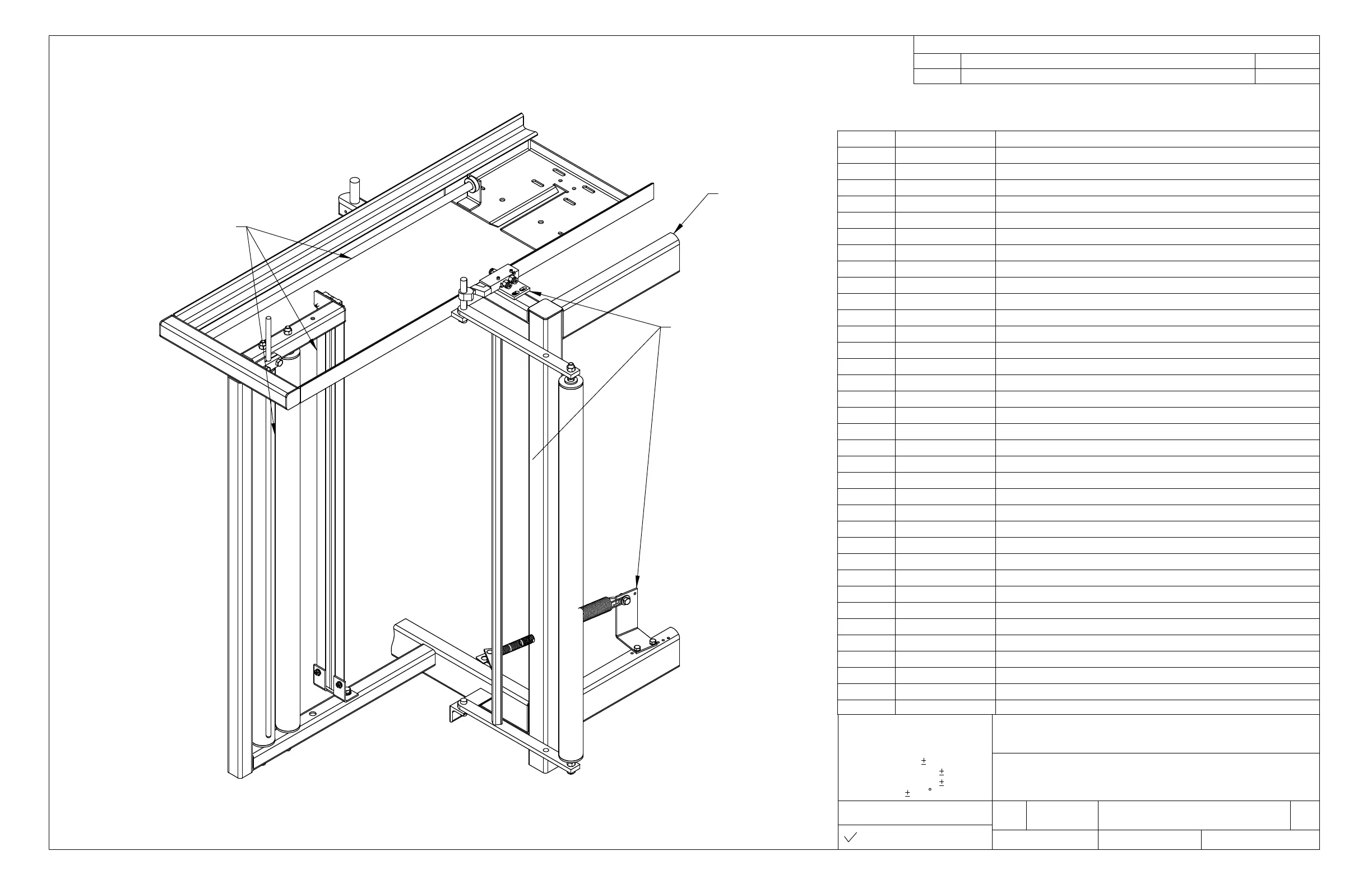

DANCER/ANTI-STATIC ASSY, 525WT
525 FFS FRAME
SWITCH, ARM, AND
SPRINGS SEE SHEET 3
EYE ROD, FILM ROLLERS,
ND BRUSHES SEE SHEET 2
REVISIONS
REV. DESCRIPTION DATE
REDRAWN TO SOLIDWORKS 2/8/10
QTY
PART NUMBER
DESCRIPTION
1
11508 SHAFT COLLAR, 5/8"
1
10125 SLIDE ROD
1
9957 AIR VALVE, BRAKE
2
9877 STATIC ELIMINATOR BRUSH, 310
3
9834-1 FILM FEED ROLLER
1
9793 DANCER WELDMENT
1
3592 CANE
1
3417-2 BRACKET, STATIC ELIMINATOR
1
3250 SPRING
1
3222-1 BRACKET, BRAKE VALVE
2
3220 BUSHING, DANCER
1
3219 SPRING CLIP
1
3218 BRACKET
1
3215 BLOCK,CANE MOUNT
1
3145 SPRING
4
3125B BOLT,ROLLER
2
3125A BOLT,ROLLER
1
3109 SWITCH CAM ASSEMBLY
2
2869 HSHCS #6-32 X 1"
1
2830 COTTER PIN
2
2781 WASHER, #10, SS
6
2595 SHCS #10-24x.5 SS
2
2585 WASHER,LOCK, 5/16,SS
2
2584 WASHER, LOCK, 1/4,SS
4
2583 WASHER, LOCK, #10,SS
1
2579 Washer,flat,3/8,SS
1
2578 WASHER,5/16
2
2550 HHCS 5/16-18x1 SS
1
2548 HHCS,5/16-18x.75,SS
1
2547 HHCS 5/16-18x.62,SS
2
2542 HHCS 1/4-20x1/2 SS
8
2532 NUT, 3/8-16
1
2531 NUT,5/16-18
2
2528 10-24 UNC HEX NUT
3
0634 1/8 PIPE x1/4" PLASTIC STRAIGHT CONN
