Hamer 525WT - Page 53

1. REMOVE ALL BURRS AND SHARP EDGES
2. ALL DIMENSIONS APPLY AFTER FINAL
SURFACE TREATMENT.
3. STAMP PART WITH NUMBER IN POSITION
SHOWN.
REVISIONS
REV. DESCRIPTION DATE
0
NEW RELEASE - SEE ECO #1288 8/8/06
1 RE-DESIGNED - SEE ECO #1334
10/19/2006
ITEM QTY
PART
NUMBER
DESCRIPTION
12 2 14192 SHCS, M5-.8x12
11 1 10127 EYE SUPPORT EXTENSION
10 1 3301A PHOTO EYE DETECTOR W/CABLE
9 1 3141-4 PHOTO EYE BRACKET
8 1 3140-3 PHOTO EYE SUPPORT ASSEMBLY
7 1 3139-2 GUIDE, PHOTO EYE
6 2 2781 WASHER, #10, SS
5 2 2718 HHCS, 1/4-20 x 5/8
4 4 2584 WASHER, LOCK, 1/4
3 2 2583 WASHER, LOCK, #10
2 2 2577 WASHER, 1/4
1 2 2542 HHCS 1/4-20 X 1/2
NOTES - UNLESS OTHERWISE SPECIFIED
DWG. NO.
9975-1
01
DFD
SURFACE FINISH TO BE 125 MICROINCHES
REMOVE ALL BURRS
BREAK ALL SHARP CORNERS
UNLESS OTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
AND TOLERANCES ARE
FRACTIONS 1/32
DECIMALS 2 PL .02
DECIMALS 3 PL .005
ANGLES 1/2
DATE:
HEAT TREAT:
FINISH:
MATERIAL:
DRAWN BY:
1:2 9975-1B
MINNEAPOLIS, MINNESOTA
Hamer LLC

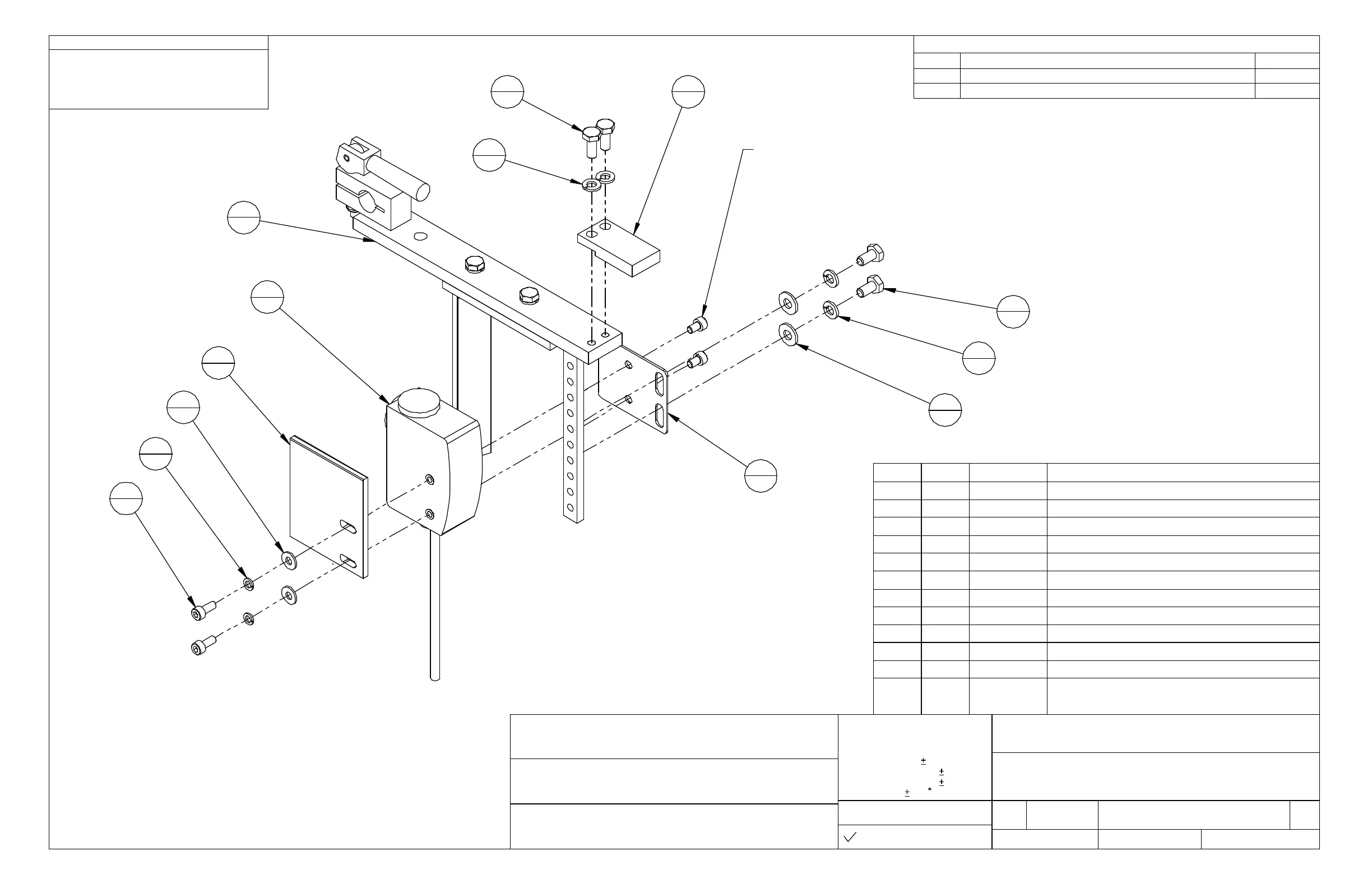

PHOTO EYE ASSEMBLY (525WT)
TITLE:
SCALE
SIZE
DWG NO.
REV
10/19/2006 SHEET 1 OF 1
12
2
3
2
6
2
7
1
10
1
2
2
4
2
1
2
9
1
8
1
FASTENERS COME WITH
PHOTO EYE (2 PLC)
M5-.8 x 8mm SHCS
11
1
4
2
5
2
