1. REMOVE ALL BURRS AND SHARP EDGES
2. ALL DIMENSIONS APPLY AFTER FINAL
SURFACE TREATMENT.
3. STAMP PART WITH NUMBER IN POSITION
SHOWN.
REVISIONS
REV. DESCRIPTION DATE
0 NEW RELEASE - SEE ECO #1334 10/19/2006
ITEM QTY
PART
NUMBER
DESCRIPTION
7 1 11376 DOUBLE CAM LOCK ASSY
6 1 3223 REFLECTOR, PHOTO EYE
5 1 3140-3B PHOTO EYE MOUNTING BRACKET
4 1 3140-1a PHOTO EYE SUPPORT WELDMENT
3 2 2718 HHCS, 1/4-20 x 5/8
2 2 2584 WASHER, LOCK, 1/4
1 1 2523 NYLOCK NUT, 1/4-20
NOTES - UNLESS OTHERWISE SPECIFIED
DWG. NO.
3140-3
00
DFD
SURFACE FINISH TO BE 125 MICROINCHES
REMOVE ALL BURRS
BREAK ALL SHARP CORNERS
UNLESS OTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
AND TOLERANCES ARE
FRACTIONS 1/32
DECIMALS 2 PL .02
DECIMALS 3 PL .005
ANGLES 1/2
DATE:
HEAT TREAT:
FINISH:
MATERIAL:
DRAWN BY:
1:2 3140-3B
MINNEAPOLIS, MINNESOTA
Hamer LLC

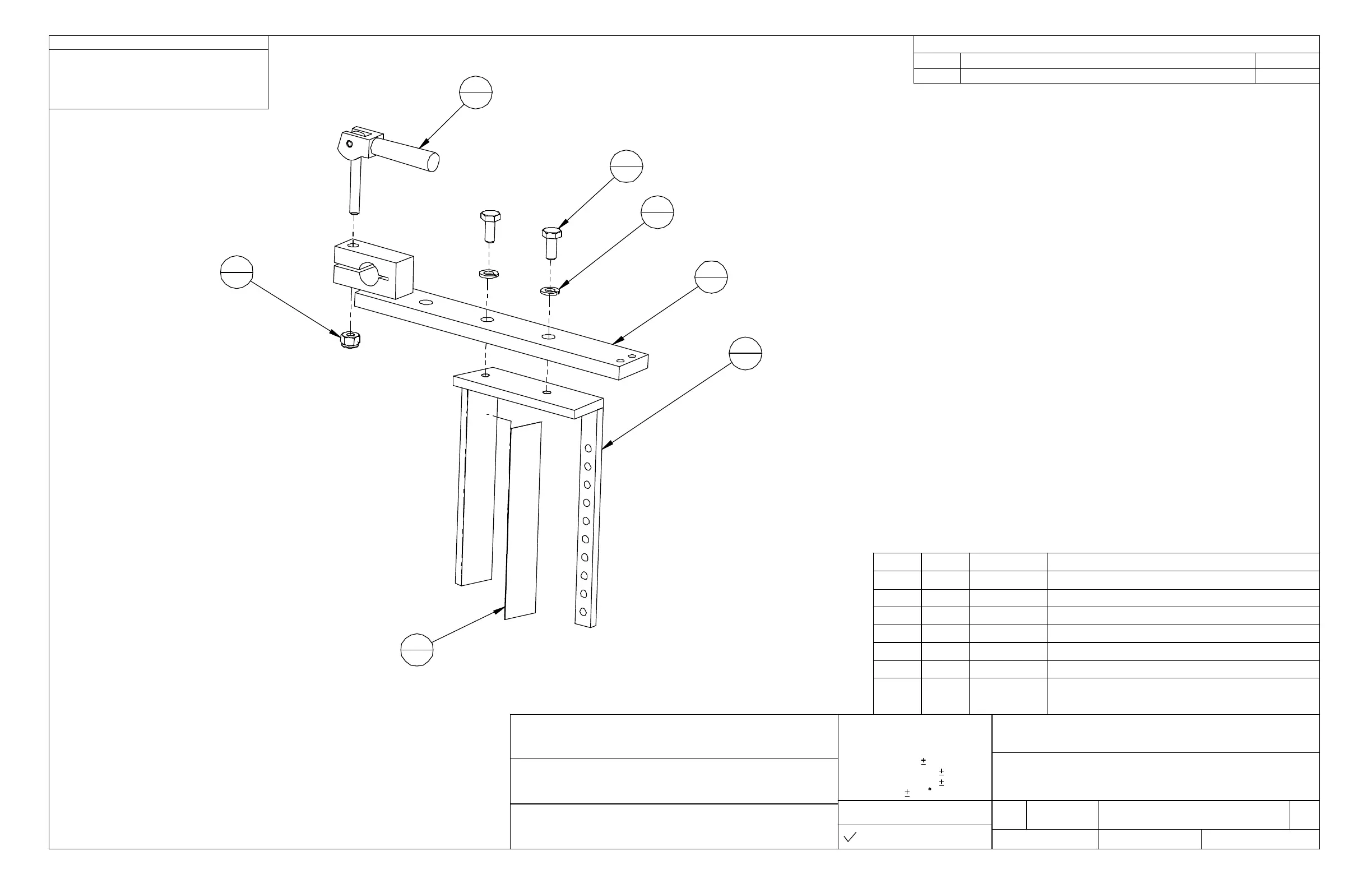

PHOTO EYE SUPPORT ASSEMBLY
TITLE:
SCALE
SIZE
DWG NO.
REV
10/18/06 SHEET 1 OF 1
7
1
3
2
2
2
4
1
5
1
1
1
6
1
