Hamer 525WT - Page 59

1
4
1
11
14
1
18
1
12
1
17
1
16
1
15
1
10
1
9
1
1
7
1 1
5
2
2
6
2 2
8
3
TOP HOLE
FOR WIRE-TIE
13455-525
REMOVE ALL BURRS
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP CORNERS
UNLESS OTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
SURFACE FINISH TO BE 125 MICROINCHES
DATE:
SIZE
AND TOLERANCES ARE
T.Pehrson
REV
FINISH:
DWG. NO.
SCALE
01
12/5/2007
TITLE:
B
SEE BILL OF MATERIAL

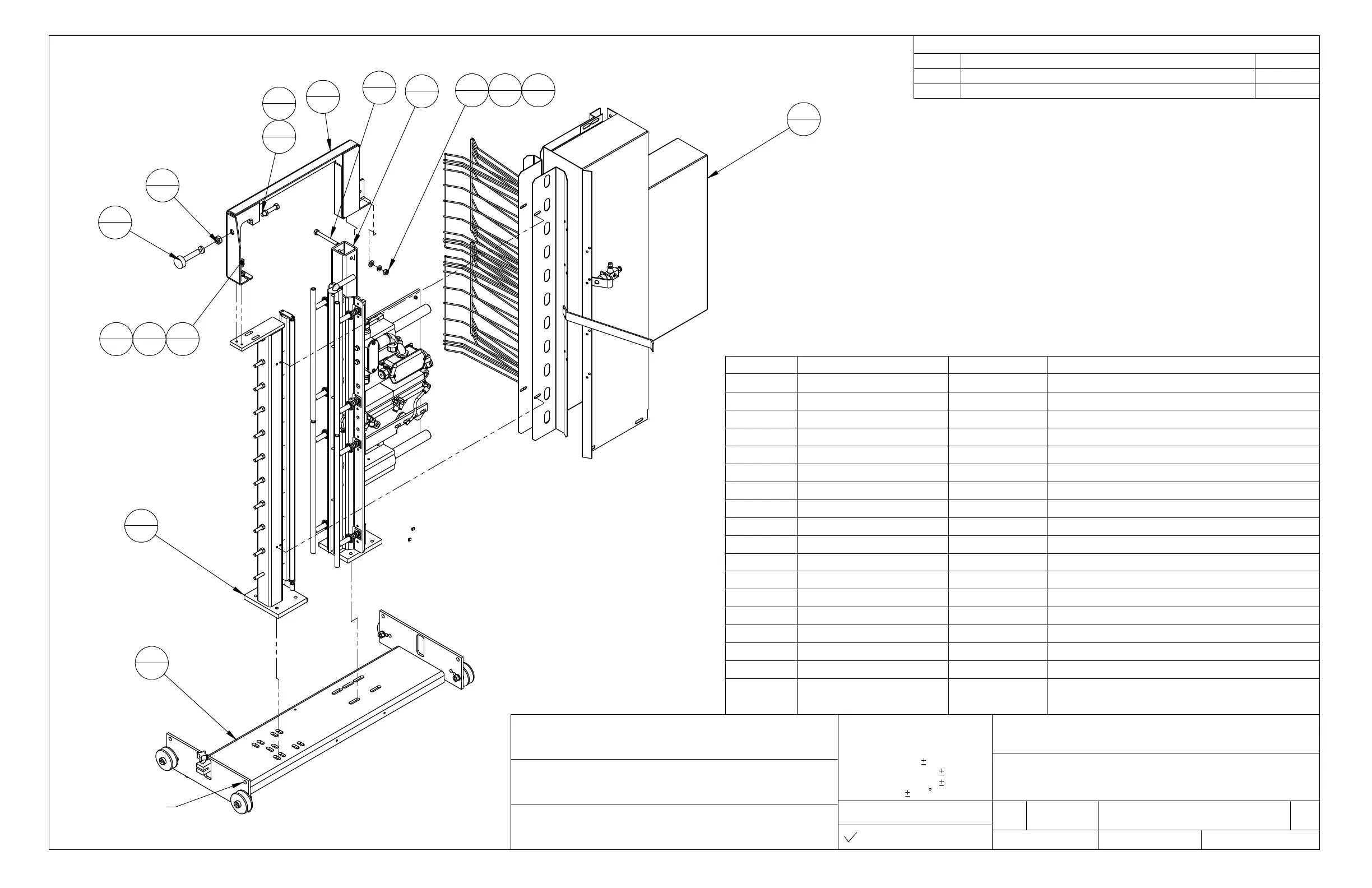

VERTICAL SIDE SEAL ASSY - HD
MINNEAPOLIS, MINNESOTA
Hamer LLC
DWG NO.
HEAT TREAT:
DRAWN BY:
13455-525
MATERIAL:
1:8
FRACTIONS 1/32
DECIMALS 2 PL .02
DECIMALS 3 PL .005
ANGLES 1/2
SHEET 1 OF 1
REVISIONS
REV. DESCRIPTION DATE
New Release ECO# 1625 12/5/07
1 Revision see ECO# 1716 (add fuses) 3/19/2008
ITEM EXPLODED VIEW/QTY.
PART NUMBER
DESCRIPTION
18 1 14313-525 BACKUP ASSY,VERT SEAL
17 1 13451-525 BRIDGE WELDMENT
16 1 14315 GUARD/GUIDE ASSY, VERT SEAL
15 1 14314 KNIFE ASSY, VERTICAL KNIFE
14 1 14312 CARRIAGE ASSY,VERT SEAL
13 OPTIONAL 12974 FUSE
12 1 11361 Screw, Swivel Head
11 1 2948 NUT, JAM, 3/8-16
10 1 2928 HHCS, 5/16-18x3 SS
9 1 2904 NUT,JAM,1/2-13
8 2 2718 HHCS 1/4-20 x 5/8 SS
7 1 2585 WASHER,LOCK, 5/16,SS
6 2 2584 WASHER, LOCK, 1/4,SS
5 1 2578 WASHER,5/16
4 2 2577 WASHER, 1/4
3 1 2559 HHCS 3/8-16x2.00 SS
2 1 2531 NUT,5/16-18
1 OPTIONAL 2344 FUSE
