Hamer 525WT - Page 61

14312
9/26/2006
DWG. NO.
01
T.Pehrson
SURFACE FINISH TO BE 125 MICROINCHES
REV
BREAK ALL SHARP CORNERS
UNLESS OTHERWISE SPECIFIED
REMOVE ALL BURRS
DWG NO.
AND TOLERANCES ARE
MINNEAPOLIS, MINNESOTA
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE SPECIFIED
B
SIZE
SCALE
14312

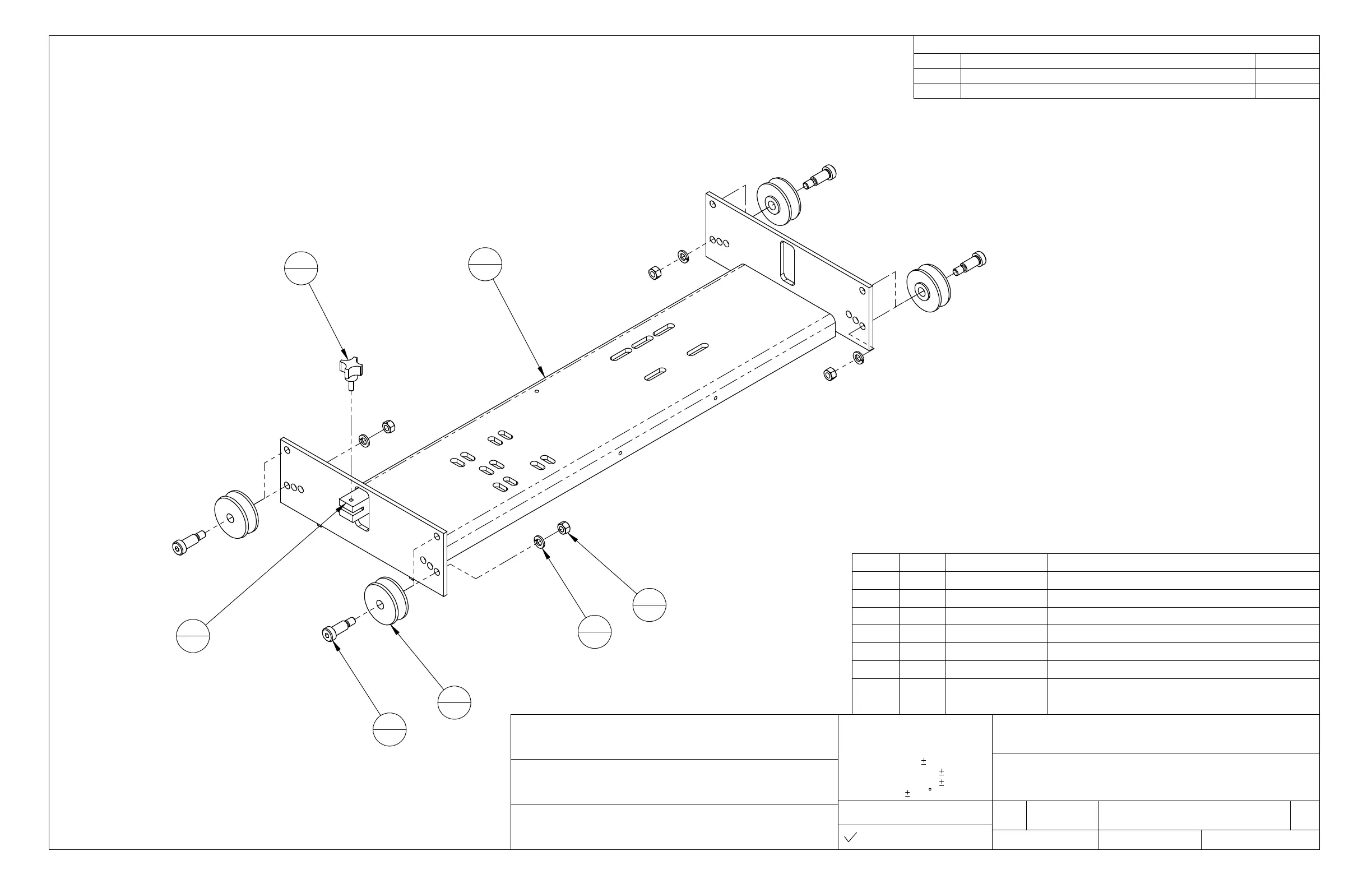

TITLE:
CARRIAGE ASSY,VERT SEAL
1:4
Hamer LLC
DRAWN BY:
DATE:
HEAT TREAT:
FINISH:
MATERIAL:
FRACTIONS 1/32
DECIMALS 2 PL .02
DECIMALS 3 PL .005
ANGLES 1/2
SHEET 1 OF 1
12/19/2007SEE ECO #16431
9/26/06NEW RELEASE - SEE ECO #1320
DATEDESCRIPTIONREV.
REVISIONS
ITEM QTY
PART NUMBER
DESCRIPTION
7 1 9950-1 CARRIAGE WELDMENT (VERTICAL-SEAL)
6 1 3744 LOCK, HEAT SEAL CARRIAGE
5 4 3251 SHOULDER SCREW 1/2 X 1" LG
4 4 3186 WHEEL, CARRIAGE
3 4 2586 WASHER,LOCK,3/8,SS
2 4 2532 NUT, 3/8-16
1 1 2137-1 LOCK KNOB ASSEMBLY
4
5
4
4
4
3
4
2
1
1
1
7
6
1
Install wheels in bottom holes for 540
Install wheels in top holes for 525
