14 MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL
Fitting the front chassis

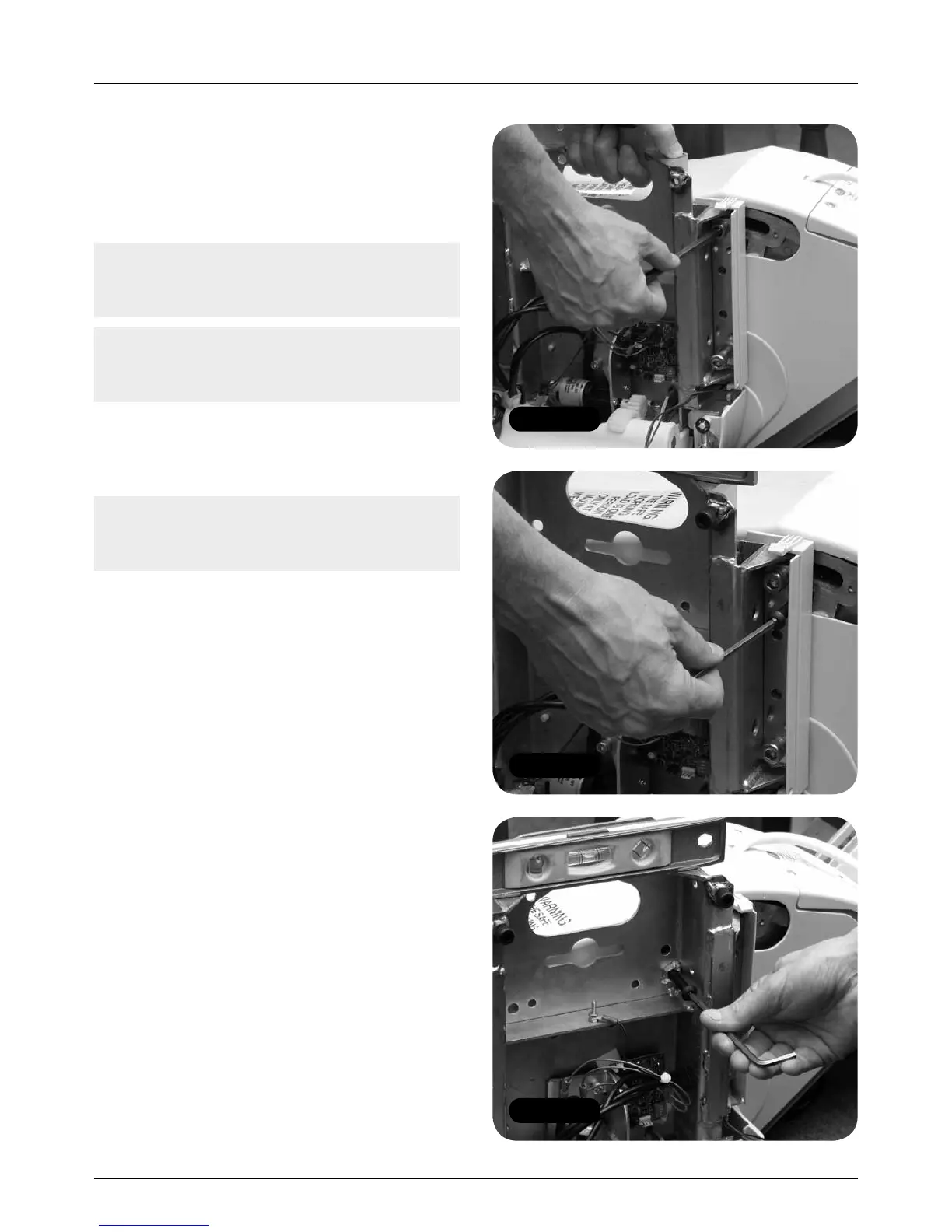

5 Offer the seat chassis to the power unit, and
using the bolts and spacers secure the seat
chassis to the power unit, ensuring that the
chassis is in the correct vertical alignment
(Figure 36).
Note: The power unit has an arched slot on
the seat chassis interface, to set the angle
of the seat and footplate.
Note: Use a spirit level positioned on the top
of the front chassis, or on the footplate, to
ensure that correct alignment is achieved.
6 Fit the safety bolt (Figure 37). This needs to
be left loose enough to allow the rear cover to
pass behind it.
Note: On left hand installations on staircases
steeper than 38° the alternative safety bolt
position must be used (Figure 38).
