Handicare Simplicity+ - Simplicity Slide Track Overhang

D
F
E
First Riser Height
A
C
B
MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL 43
Appendix 5

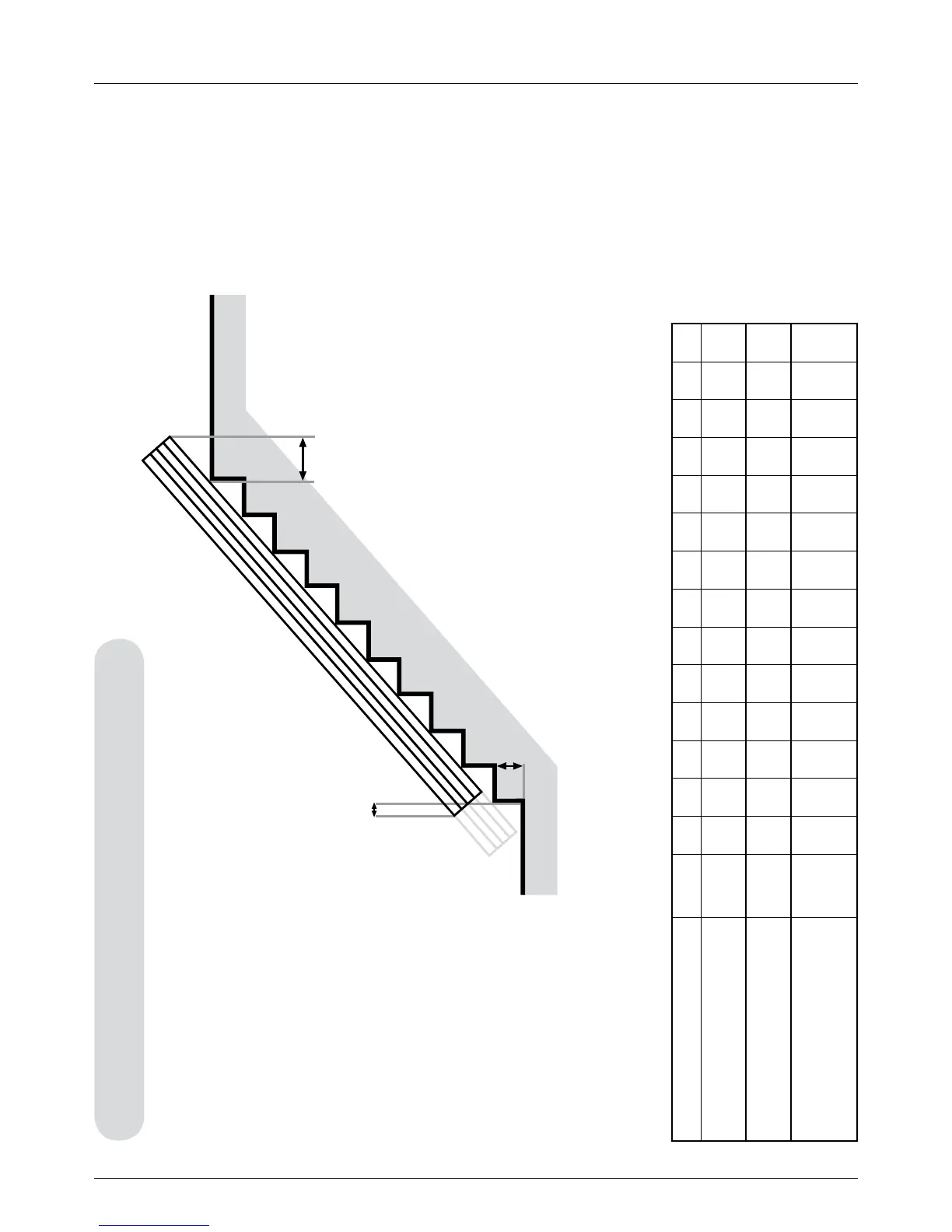

Simplicity Slide Track overhang
Angle 37° 38° 39° 40° 41° 42° 43° 44° 45° 46° 47° 48° 49° 50°
First Riser Max Height (mm)
for zero bottom intrusion
D
162 164 166 168 169 171 172 173 173 174 174 173 173 172
Top Overhang (mm)
at given staircase angle
E
213 211 209 207 205 202 200 198 195 193 190 187 185 182
Bottom Intrusion (mm)
at given angle assuming
200mm 1st riser
F
51 46 42 38 35 32 30 28 27 26 25 24 24 24
