Handicare Simplicity+ - Simplicity - Track Details

Stair Angle
A
C
D
E
B
44 MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL
Appendix 5

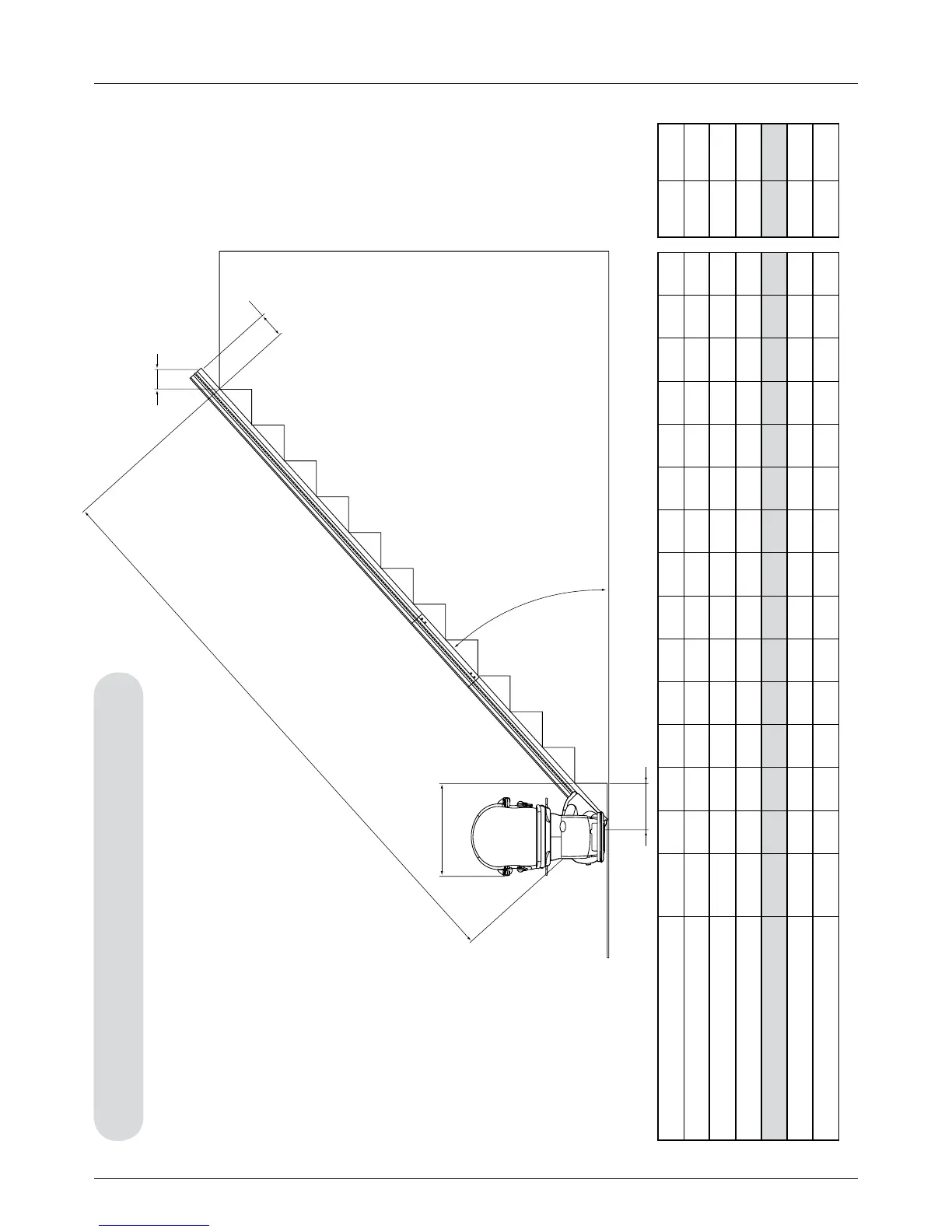

Simplicity – track details
Angle 37° 38° 39° 40° 41° 42° 43° 44° 45° 46° 47° 48° 49° 50°
Horizontal Track Overhang* A
141 141 140 139 138 138 137 136 135 135 134 133 132 132
Ground Lift Parking Space B
752 750 749 748 746 745 744 742 741 740 738 737 736 734
Ground Track Intrusion C
352 349 346 343 340 336 333 330 327 324 321 318 315 312
Top Nose to Ground D
Track Extension from Nose* E
178 180 182 184 186 189 191 193 195 198 200 202 204 206
Track Cut Length (
D
+
E
) F
Angle 45°
A
135
B
706
C
327
D
3250
E
195
F
3445
*Minimum figures – when top intrusion is critical.
Example
