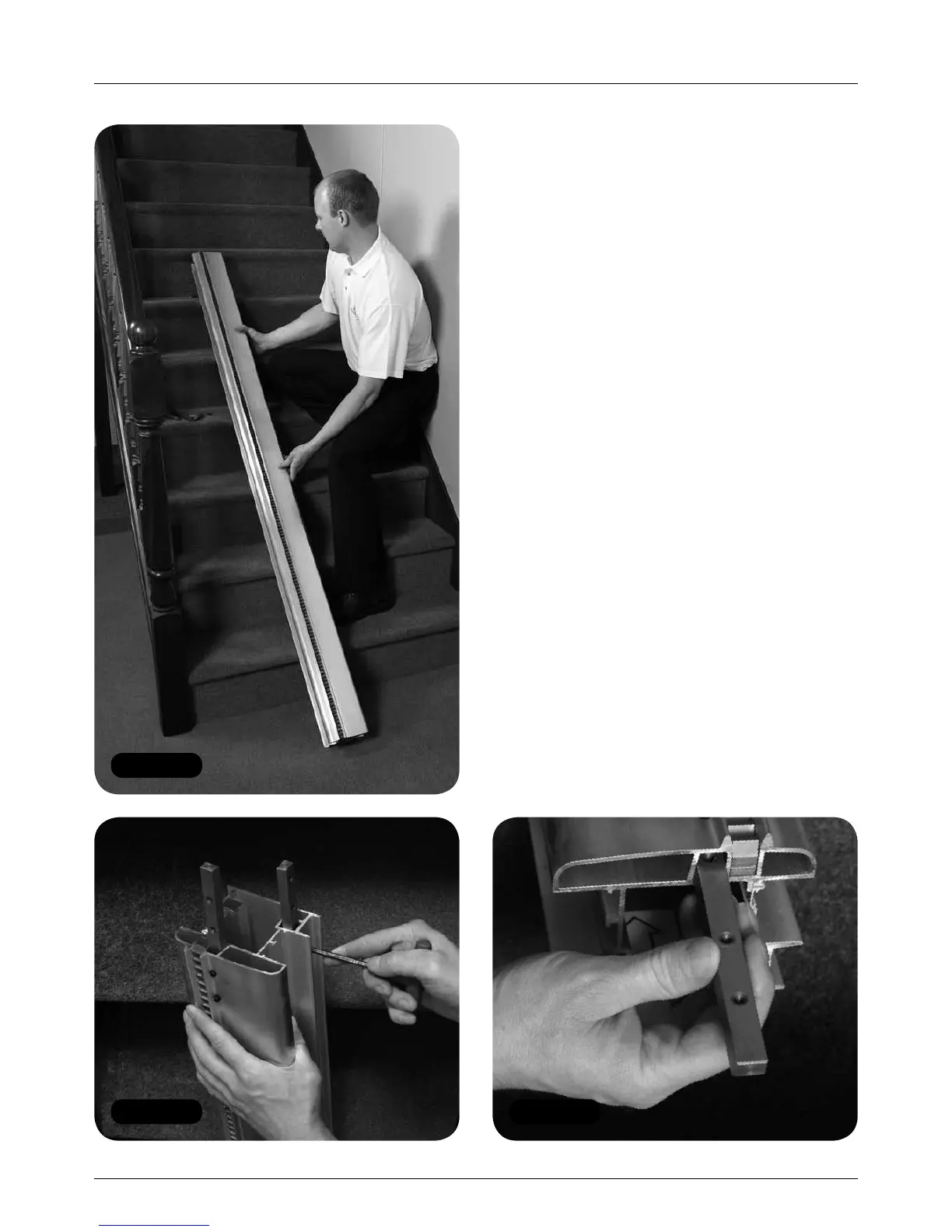

Figure 1
Figure 2 Figure 3
MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL 3
Track assembly
Track assembly
Before beginning the installation please
ensure that the track is the required length.
Refer to Appendix 5 for details.
Items required: Tools required:
• Fit kit • 2.5mm Allen key
Splice bars x 3 • 3mm Allen key
Track ends cap x 1 • 6mm Allen key
Red bag • 13mm Spanner
8 x bolts • Hacksaw
4 x grub screws • Tin snips
Final limit stops x 1
End stops x 1
Mounting feet x 3
• Top track section x 1
• Bottom track section x 1
1 Position the bottom section of the track (2m)
on the stairs with the splice holes at the top
(Figure 1). Regardless of the hand of the lift
the rack should always be on the left hand
side of the track when looking up the stairs.
2 Bolt in the splice bars to the bottom section of
track extrusion (Figure 2) using 2 grub screws
for the top splice bar and the 4 bolts in the
bottom splice bars (from the red fittings bag).
