42 MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL
Appendix 5

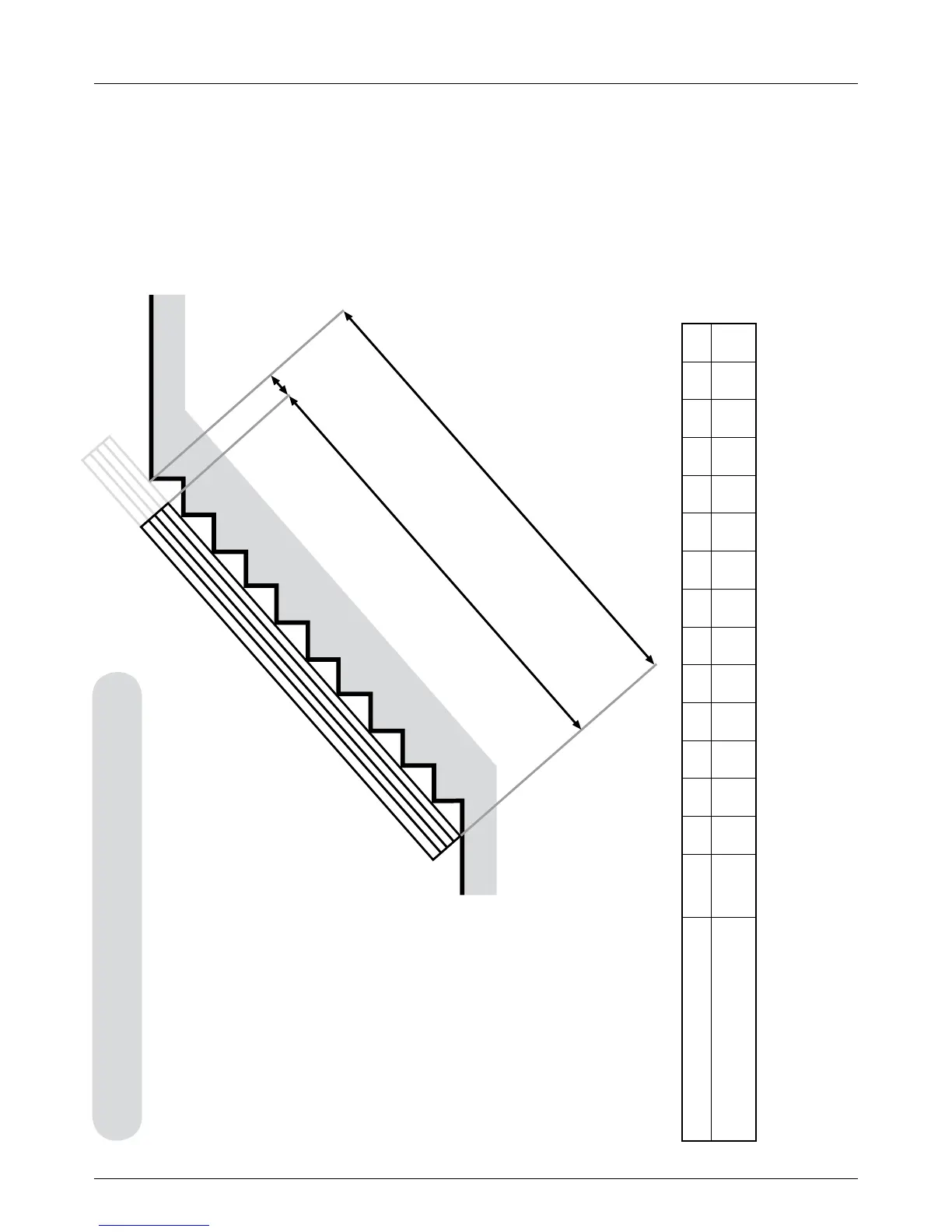

Simplicity Slide Track length
A (top nose to floor mm) minus B (track reduction from nose) equals C (cut track length) Example: Dimension A = 3250mm, Angle = 45° (3250 - 74 = 3176)
Final cut track length = 3176mm
Angle 37° 38° 39° 40° 41° 42° 43° 44° 45° 46° 47° 48° 49° 50°
Track reduction from nose
values for a standard finish
B
81 81 80 79 78 77 76 75 74 72 71 70 68 66
