Handicare Simplicity+ - Smart Seat Power Swivel PCB Connections

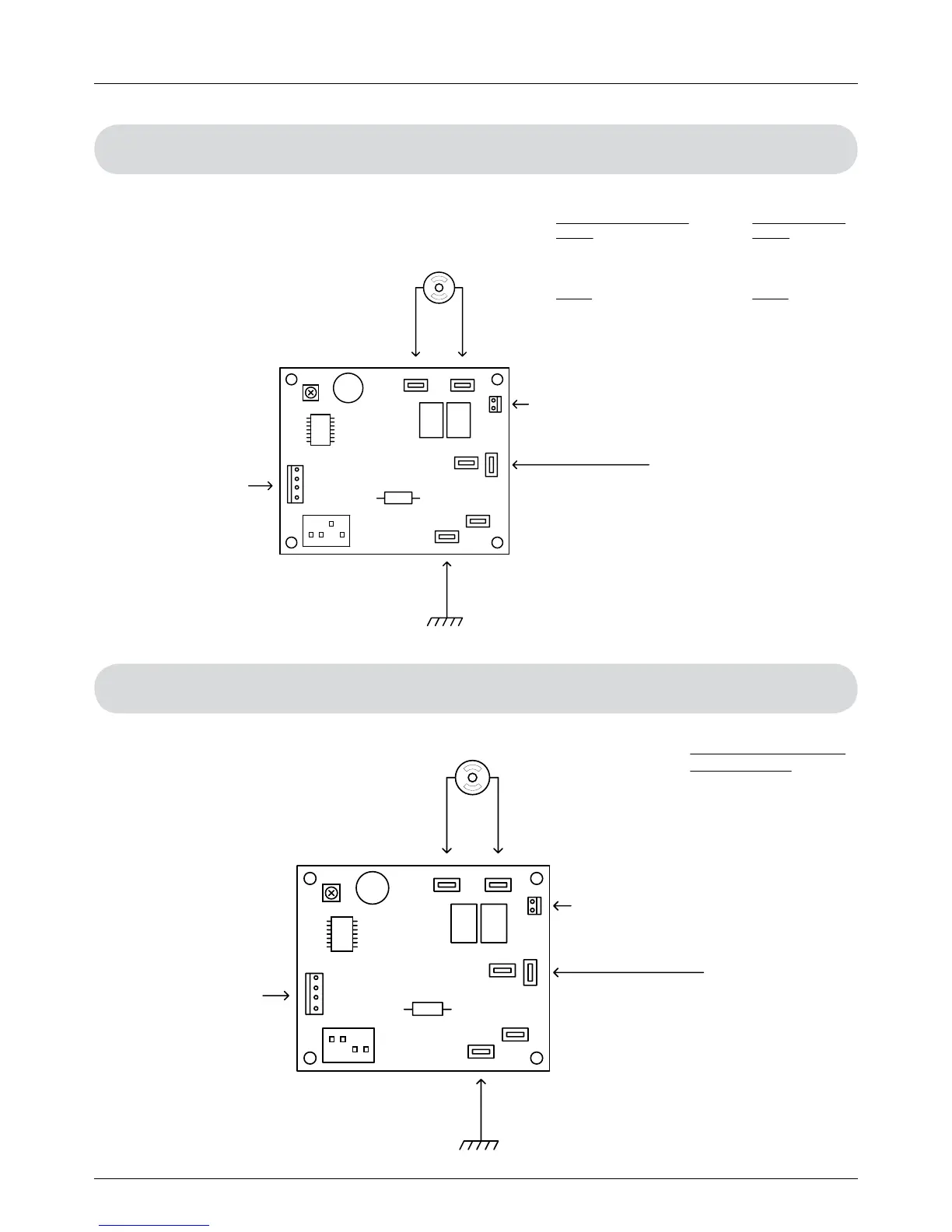

SMART SEAT POWER SWIVEL PCB CONNECTIONS
(950 LIFTS ONLY)
MOTOR LEAD CONNECTIONS:
RH SEAT
BLUE = M1
BLACK = M2
LH SEAT
BLUE = M2
BLACK = M1
SEAT CONNECTIONS:
RH SEAT
BROWN TO WHITE
WHITE TO BROWN
LH SEAT
BROWN TO BROWN
WHITE TO WHITE
SWIVEL MOTOR
DIP-SWITCH
NEGATIVE
COMMS
GREY
(USE ANY CONNECTION)
BLACK
(USE ANY CONNECTION)
PLEASE SEE ACROSS
FOR MOTOR CONNECTIONS
ENSURE JUMPER IS
PRESENT ON CONNECTOR
NOTE: THERE ARE NO END
LIMITS ON THE POWER
SWIVEL.
MOTOR STOPS USING
CURRENT LIMIT.
M1 M2
ON
1 2 3 4
FOOTPLATE MOTOR
MOTOR LEAD CONNECTIONS:
LH or RH ASSEMBLY
BLUE = M1
BROWN = M2
DIP-SWITCH
NEGATIVE
COMMS
GREY
(USE ANY CONNECTION)
BLACK
(USE ANY CONNECTION)
PLEASE SEE ACROSS
FOR MOTOR CONNECTIONS
ENSURE JUMPER IS
PRESENT ON CONNECTOR
BLUE BROWN
NOTE: THERE ARE NO END
LIMITS ON THE POWER
FOOTPLATE.
MOTOR STOPS USING
CURRENT LIMIT AND
TIMEOUT.
M1 M2
ON
1 2 3 4
40 MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL
Appendix 4
Smart seat power swivel PCB connections
Smart seat power footplate PCB connections
