Handicare Simplicity+ - Fitting the Seat Base

Figure 40
Figure 41
Figure 39
MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL 15
Fitting the seat base
Fitting the seat base
Items required: Tools required:
• Seat base • 10mm socket
• Cover plate • 13mm socket
• 2 x clips • Narrow nosed pliers
• 6mm Allen key

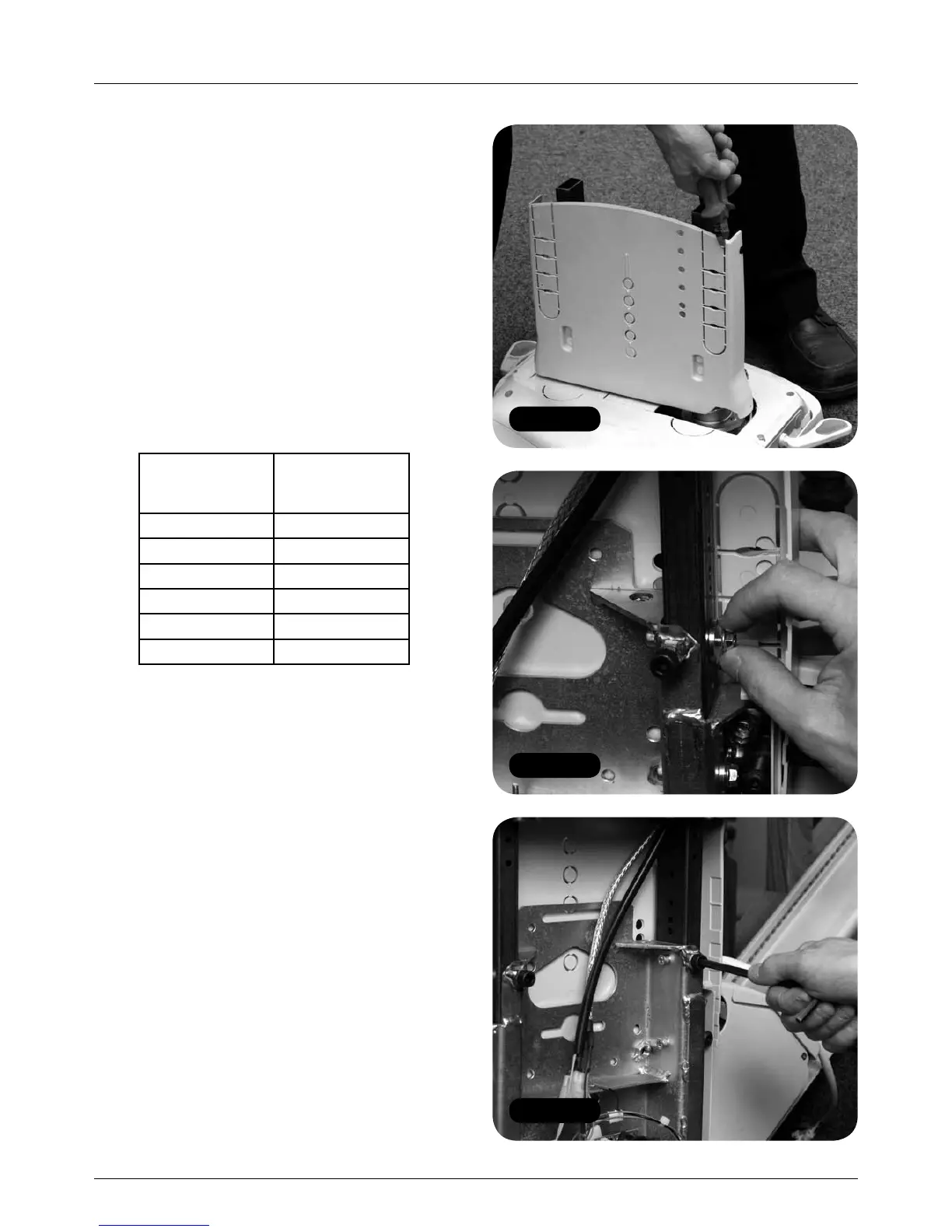

1 Depending upon the hand of the stairlift being
fitted, remove the appropriate knock-outs
from the chassis top rear cover (Figure 39 –
Left hand shown). Refer to the table below
for the number of knock-outs to be removed
for the client height.
Required seat
to footplate
height (mm)
Knock-outs
to be
removed
540 1
515 2
490 3
465 4
440 5
430 5
2 Load the seat base and feed the two seat
post retaining bolts through the washers and
the seat stems into the bottom front chassis;
selecting the appropriate seat height for the
client by using the holes corresponding to
the height that is required (Figure 40).
3 Tighten the seat post stabilising bolts
(Figure 41), and tighten the safety bolt.
4 Remove the lowest of the available central
knockouts from the top rear cover and feed
through the main pack loom (Figure 42).
5 Using the clips provided (Figure 43) fit the
cover plate to the front chassis (Figure 44).
