Handicare Simplicity+ - Simplicity+ DIP Settings MS125 LH & RH Standard & Auto Swivel

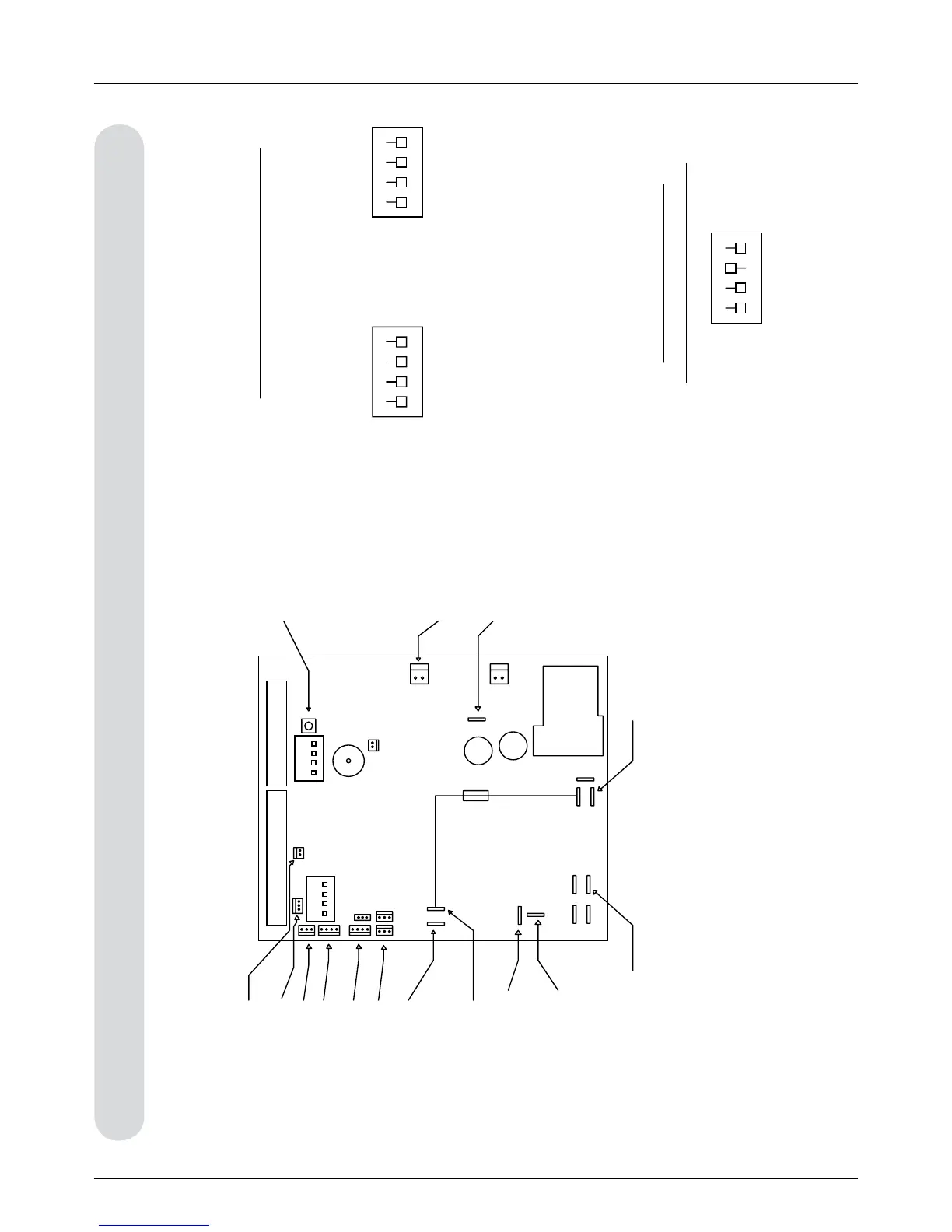

9 WAY CONNECTOR 8 WAY CONNECTOR
DIP SWITCH 2
DIP SWITCH 1
5A
QUICKBLOW
WHITE
N/C
WHITE
BLUE
BLUE
BLACK
BLACK
N/C
N/C
VIOLET
GREY+GREY
N/C
BROWN
N/C
ORANGE
BLUE
GREEN
INFRARED/RADIO LEARN BUTTON
INFRARED/RADIO
EXTERNAL DIAGNOSTIC
DIAGNOSTIC DISPLAY
POWER FOOTPLATE
NO CONNECTION
REQUIRED
NO CONNECTION
REQUIRED
BRAKE CONNECTOR
BATTERY POSITIVEBATTERY NEGATIVE
MOTOR 2
(BLACK)
MOTOR 1
(WHITE)
+24V FUSED
HINGE DATA
(GREY CABLE)
CHARGE +
1 2 3 4
1 2 3 4
ON
ON
IF ANY DIP SWITCHES ARE CHANGED, PLEASE TURN OFF LIFT, WAIT 10 SECONDS, THEN POWER THE LIFT BACK ON. FOR A RIGHT HAND SEAT, THE TOGGLE DIRECTION MUST BE CHANGED OTHERWISE THE LIFT WILL TRAVEL IN THE WRONG DIRECTION. THIS IS DONE BY CHANGING OVER THE WHITE AND BROWN WIRES ON THE MAIN SEAT LOOM.
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
SLIDE ENABLE
PING ENABLE
PLATFORM ENABLE
SLIDE DISABLE
DEFAULT OFF
PING DISABLE
PLATFORM DISABLE
FAST RAMP
NOT USED
DEFAULT OFF
DEFAULT OFF
SLOW RAMP
NOT USED
THIS SETTING WILL ENABLE POWER SWIVEL MODE
DIP 1 DIP 2
DIP SWITCH SETTING MS125
POWER SWIVEL DIP
SWITCH SETTING CSE126
38 MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL
Appendix 4
Simplicity
+
DIP settings MS125 LH & RH standard & auto swivel
