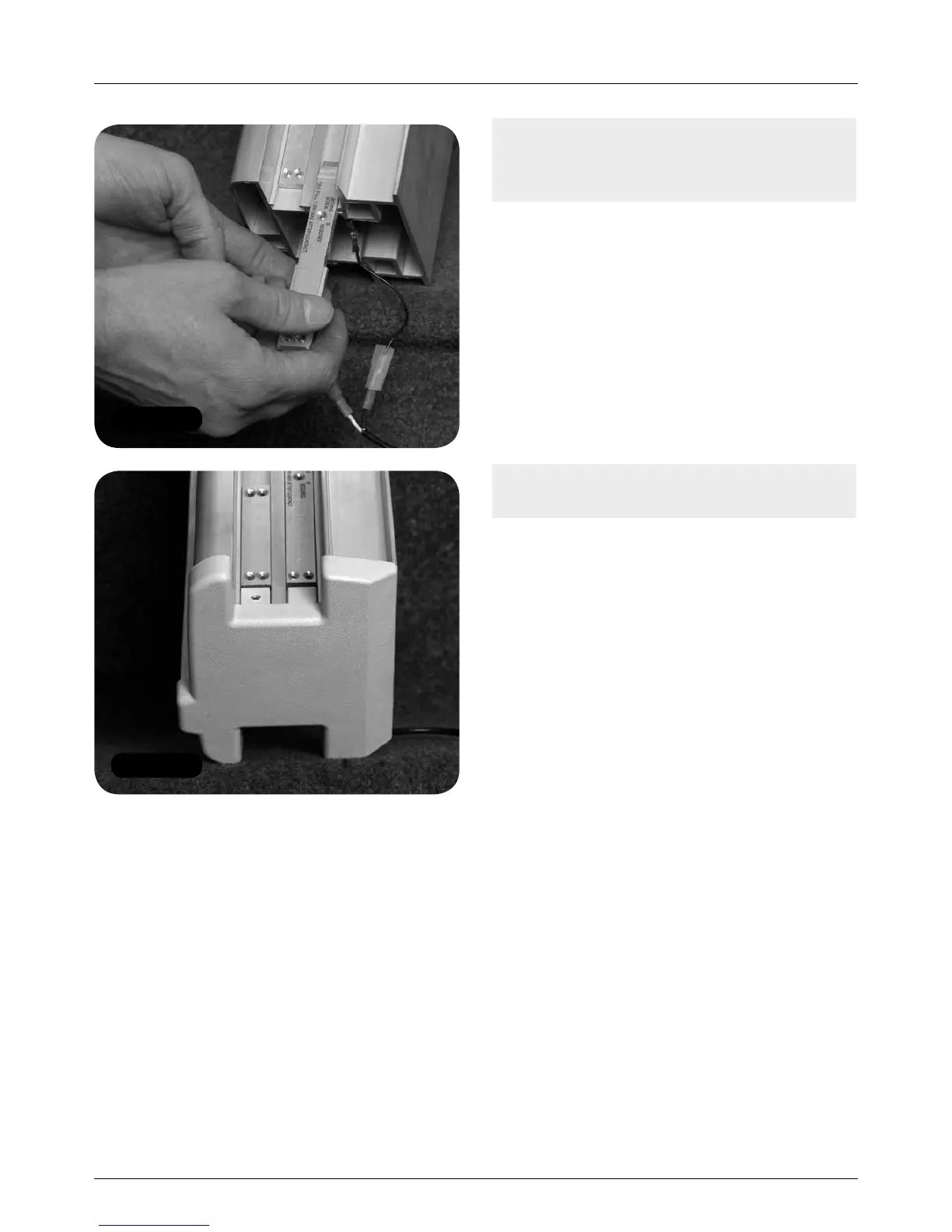

Figure 13
Figure 14
MINIVATOR SIMPLICITY
+
INSTALLATION MANUAL 7
Track assembly
Note: The shorter (square ended stop)
must be fitted in the top channel – failure
to do this correctly could damage the lift.
17 Fit the bottom end cap to the track
(Figure 14), ensuring that the power supply
cable is fed through the channel provided
so that it exits the track on the WALL side.
18 Tighten the grub screws to secure the end
cap to the track.
19 Now slide the bottom end stop and final limit
stop so that they sit against the positioning
extensions of the end cap and then tighten
the grub screws (Figure 14).
Note: The grub screws on the end cap
should not be over tightened.
