IX. Various signs/labels: various signs or labels are affixed to
different parts of the forklift truck.
驱动桥 差速锁 开关
两驱/四 驱切 换开关
注意
两驱/四驱切换开关:车辆正常运行 请选择两驱模式;当驱动桥动 力
输出不足时,可使用四驱模式；
驱动桥差速器锁开关:车辆正常运 行请关闭,避免转弯时损坏 差速器
和存在翻车隐患;当驱动桥轮胎 打滑时,可使用驱动桥差速 器锁功能;
其他情况下,请操作者按需使用。
LUBRICATION SYSTEM CHART
起吊方 法
②
①
微动
制动 加速
门架型号
载 荷 曲 线 图
载 荷 中 心 距 B
门架垂直状态承载能力
属具型号
最大起升高度A
产品编号
工业用途，依据标准GB/T 26949.2-2013
越野用途，依据标准GB/T 26949.13-2017
实
际
起
重
量
防冻液
M IN I
R PM
E m iss ions
WAIT
≈ 30′
P a rked rege n e ration m ust be do n e
C
Inhibit
Regen
WA L
7bar
5.5bar
102psi80psi
TIRE PRESSURE
FRONT
REAR
refer to the m od el plate of the attachm ent or the rated cap acities and load centers graph.
If an attachm ent is installed ， the actual capacity at maxim um lifting height
CAPA CITY AT M AX.L.H
MA X .LIFTING HEIGH T
W ITHOU T ATTACH ME NT
LOA D CEN TER
YEAR OF M ANU FACTUR E
MO DEL-TYP E
SERIAL N O.
LOA D CEN TER
SERVICE W E IG HT
RATE D CAP ACITY
ENG INE PO W ER
kW /r/min
RO UG H TE RR AIN FOR KLIFT TRU CK
HA NG CH A G RO UP CO.,LT D .
Add: 66 6 Xiangfu Road , H angzhou ,Zhejiang,China(311305 )
排放控制 诊断系统

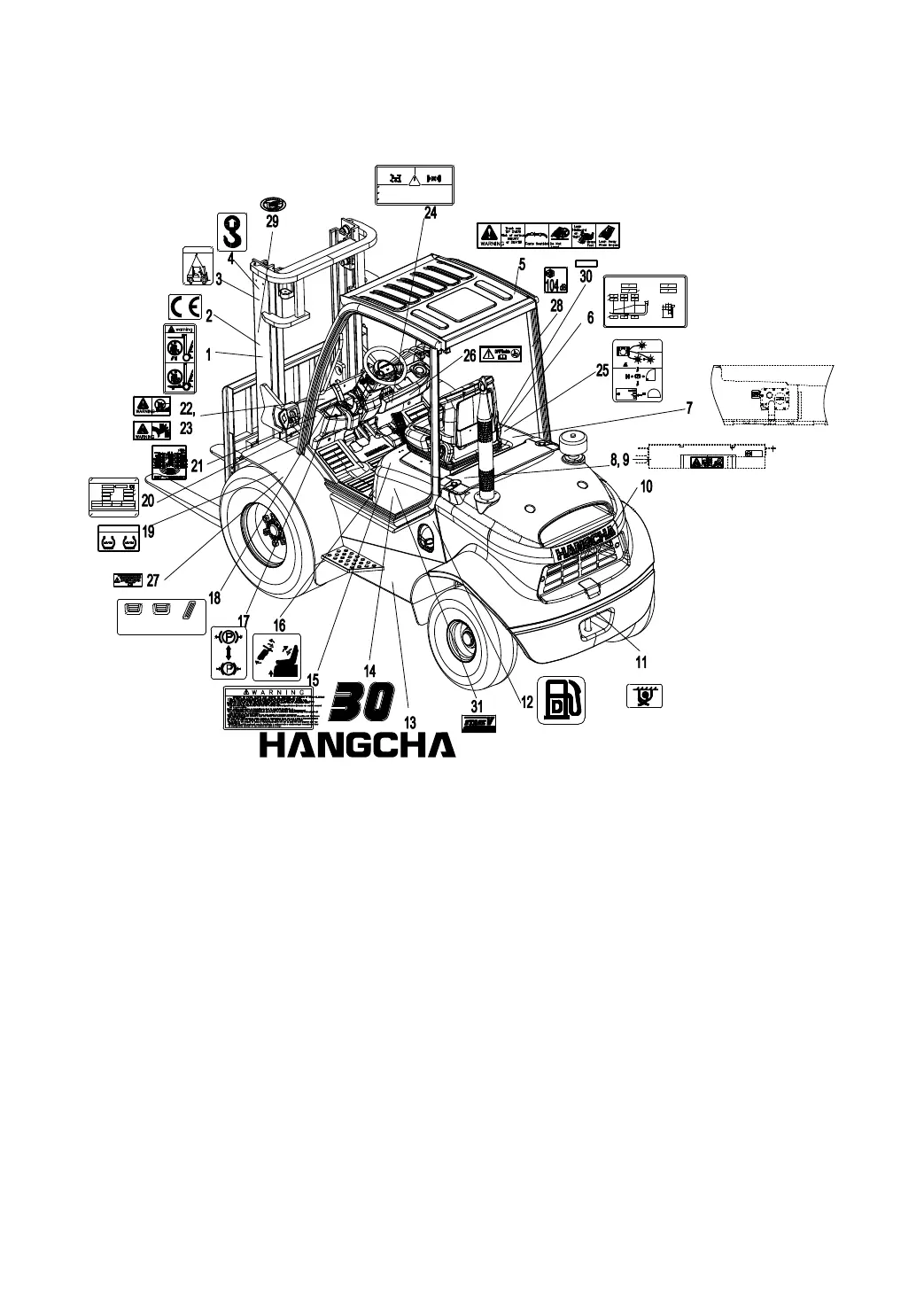

1. Hazard label
2. CE label
3. Lifting label
4. Lifting label
5. Safety belt label
6. Load curve sign
7. Hydraulic oil label
8. Cutting and
clamping labels
9. Antifreeze label
10. Typeface label
11. Tie-down point
label
12. Diesel label
13. Typeface label
14. Tonnage label
15. Warning label
16. Engine hood
opening label
17. Hand brake label
18. Control label
19. Tire pressure
label
20. Product
nameplate
21. Lubricating
system label
22. Hazard label
23. Hazard label
24. Operating
instruction label
25. Regen operating instruction label
25. DPF warning label
27. Semi-axle dismounting warning label
28. Noise label
29. China IV emission
label
30. Emission control diagnosis system label
31. Euro 5 emission
label
