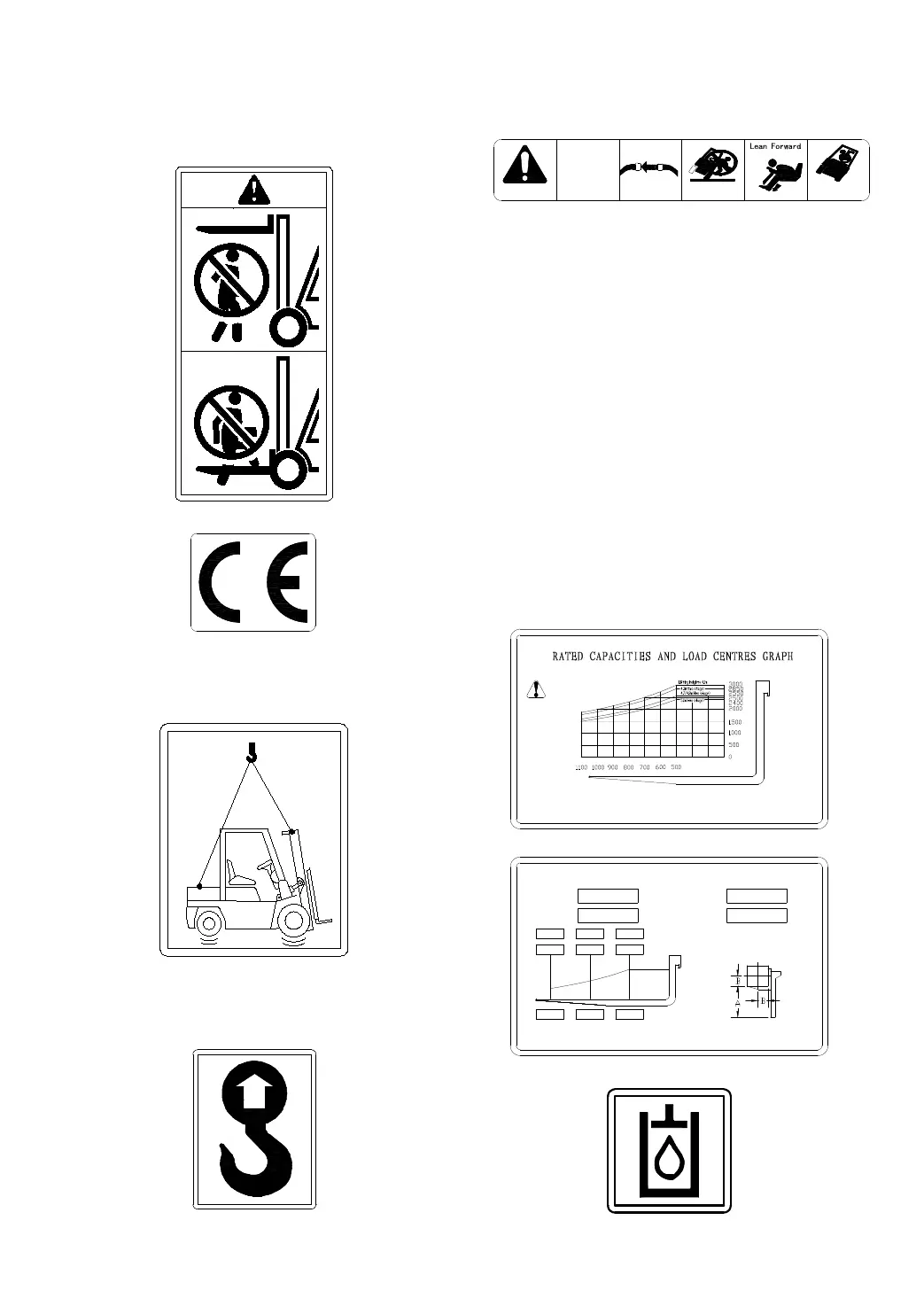

1. Hazard label: Stuck on the outer mast
Do not stand on or under the fork arm carrier;
otherwise, your safety will be at risk.
2. CE label
3. Lifting label: Indicates the lifting position and
method of the truck. When lifting, prevent the
rope from rubbing and damaging the lamp.
4. Lifting label: Indicates the lifting position and
method of the truck. When lifting, prevent the
rope from rubbing and damaging the lamp.
5. Safety belt label and its (anti tilting warning
label)
WARNING
Faste Seatblet
Do Not Jump!
Brace
Feet
Hold
on
Tight
Lean Away
From Impact
Truck can
TIP OVER!
Risk of serious
INHURY
or DEATH!
6. Load curve sign
It shows the relationship between the location
of the load center distance and the maximum
load or maximum lift height.
The load capacity of trucks with side shifter
and accessories is reduced. When the lift
height is increased, the load capacity will be
decreased.
Check whether the load and the load center
distance are within the allowable range of the
Bearing Capacity Chart before loading. If the
load shape is complicated, the heaviest part
should be placed in the center of the fork and
close to the load-backrest.
SUBTRACT 200kg WITH SIDESHIFTER
mm
LOAD CENTRE POSITION
kg
RATED LOAD WEIGHT
Actual Lifting Cap acity
mm
M ast M od el
RATE D CA P ACITIES AN D LO AD G E N TR E S G R AP H
Load Cen ter D istance B
Capacity W ith M ast Vertical
mm
kg
Attachm en t M o del
M ax.Lift H eigh t A
Serial N o.
RT
FO R IN D U STR IA L U SE - A CCO R D IN G TO STA N D A R D ISO 2 2 9 1 5 -2
FO R R O U G H TE R R A IN U SE - ACCO R D IN G TO STA N D A R D ISO 22 9 1 5 -13
kg
