Hanna Instruments C 99 series - Functional Description of the Photometer; Front Panel Controls and Display; Rear Panel Connections

6

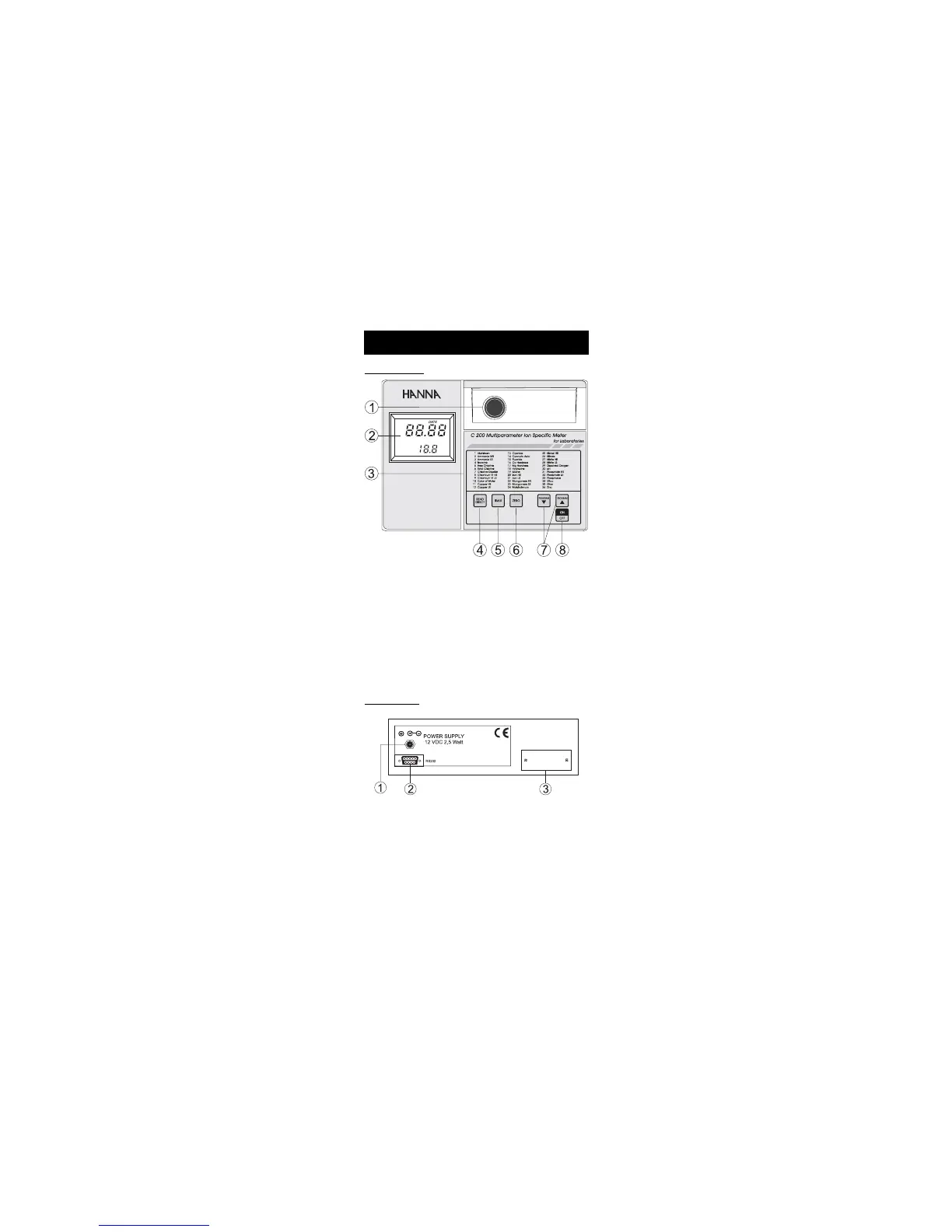

FRONT PANEL
1) Cuvet Holder
2) Dual Level Liquid Crystal Display
3) Programs List
4) READ DIRECT, to perform measurement immediately
5) TIMER, to perform measurements after a preprogrammed
countdown
6) ZERO, to zero the meter prior to measurement
7) Program W and V, to select the desired parameter
8) ON/OFF, to turn the meter on and off
REAR PANEL
1) Power Supply 12 VDC 2.5 Watt
2) RS 232 Socket
3) Batteries Compartment
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTION
