HT360 series user manual Copyright©Qingdao Hantek Electronics Co.,LTD
10

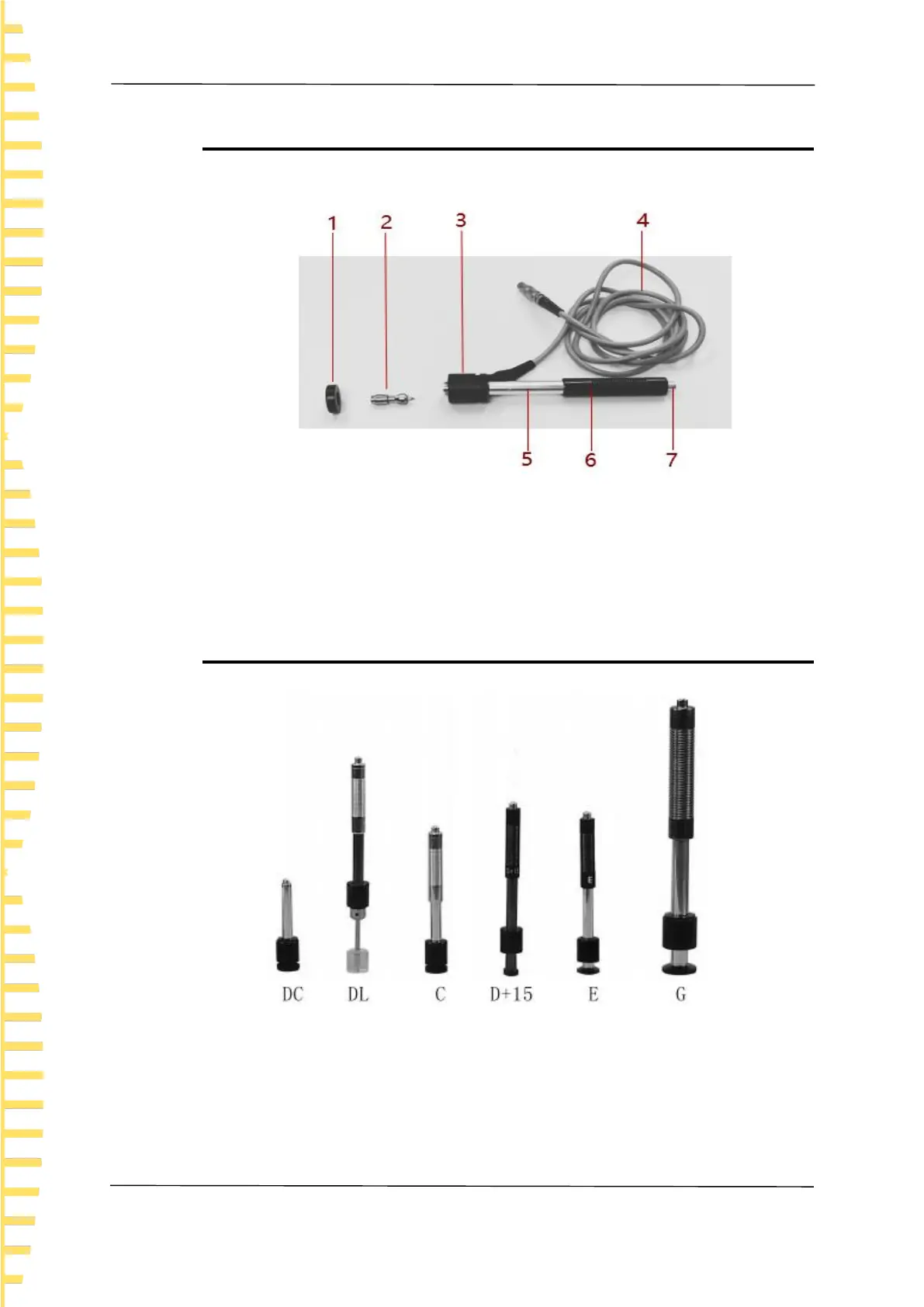

4.3 D-type impact device
Fig. 2 D-type impact device
1 Supporting ring
5 Conduit
2 Impact body
6 Loading set
3 Coil
7 Release button
4 Conductor
4.4 Profiled impact device
Fig. 43 Profiled impact device
Working principle
Impact the sample surface with an impact body with specified mass at a certain speed
