3 - Description
17
Liquid system
Pump
Diaphragm pump with 3 diaphragms, model 1303 or diaphragm pump
with 6 diaphragms, model 363 or 364 or 464.
Standard = 540 rpm (6 splines shaft). The design of the diaphragm pump
is simple, with easily accessible diaphragms and valves, which ensure
that liquid does not contact the vital parts of the pump.

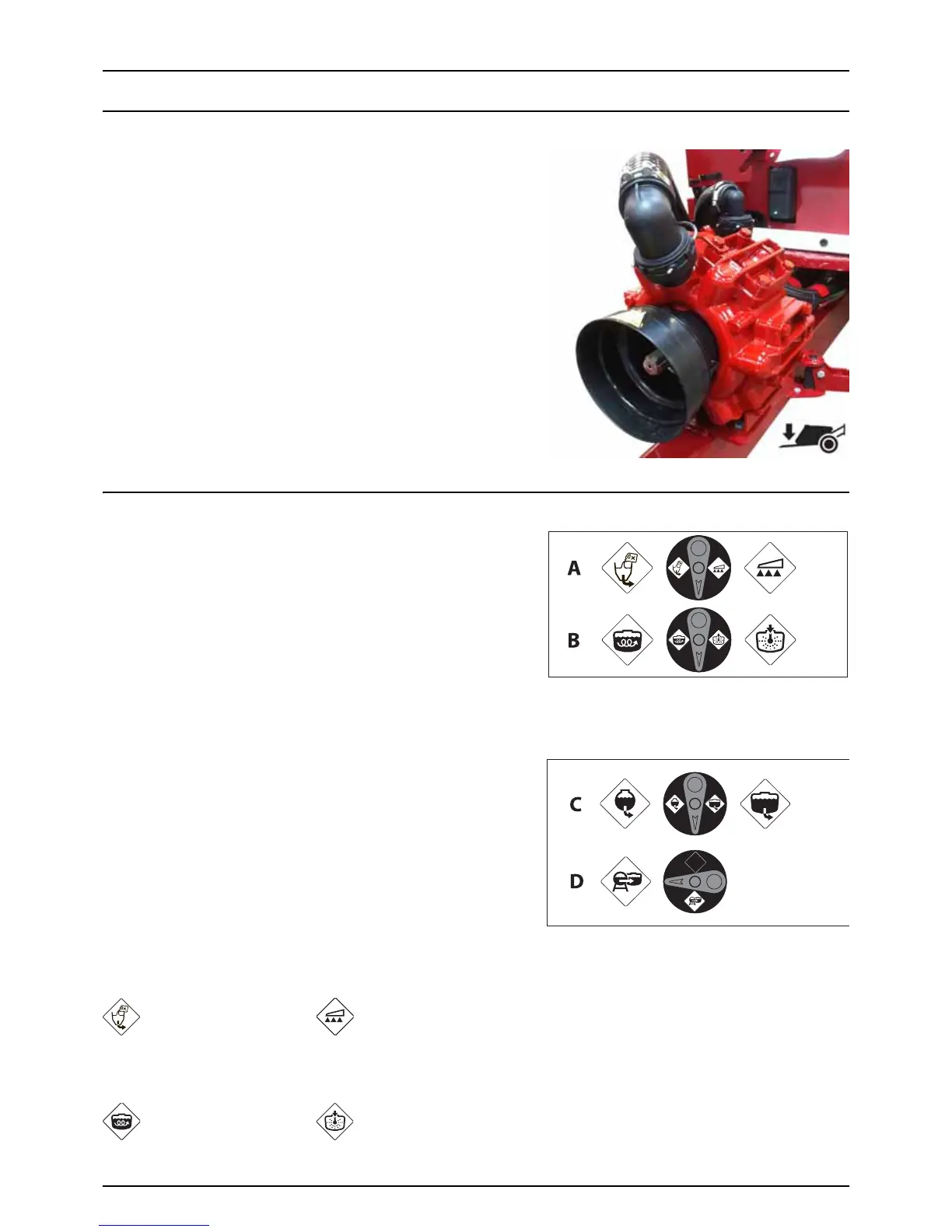

Pump model 363 is shown on the picture.
Valves and Symbols
The valves of the valve system are distinguished by coloured
identification on the function labels. Symbols corresponding to every
possible function of use are located on the discs for easy identification
and operation. The modular manifold system facilitates the addition of
optional extras on both pressure side and suction side.
Furthermore the suction manifold can be fitted with a return valve,
which ensures better draining of the sprayer before cleaning.
A function is activated by turning the handle towards the desired
function. If the handle is turned to a label-free position (unused
function), the valve is closed. The valves are:
A. Agitation Valve
B. Pressure Valve
C. Suction Valve
D. External Filling Valve (optional equipment)
A - Pressure valve
With this valve you can select where to direct pressurized liquid.
B - Agitation valve
With this valve you can select between agitation in the tank or tank cleaning using the rinsing nozzle.
Filling of main tank from
TurboFiller
Spraying
Adjustable agitation Tank rinsing nozzle
