4 - Sprayer Setup
43
Spray Boom

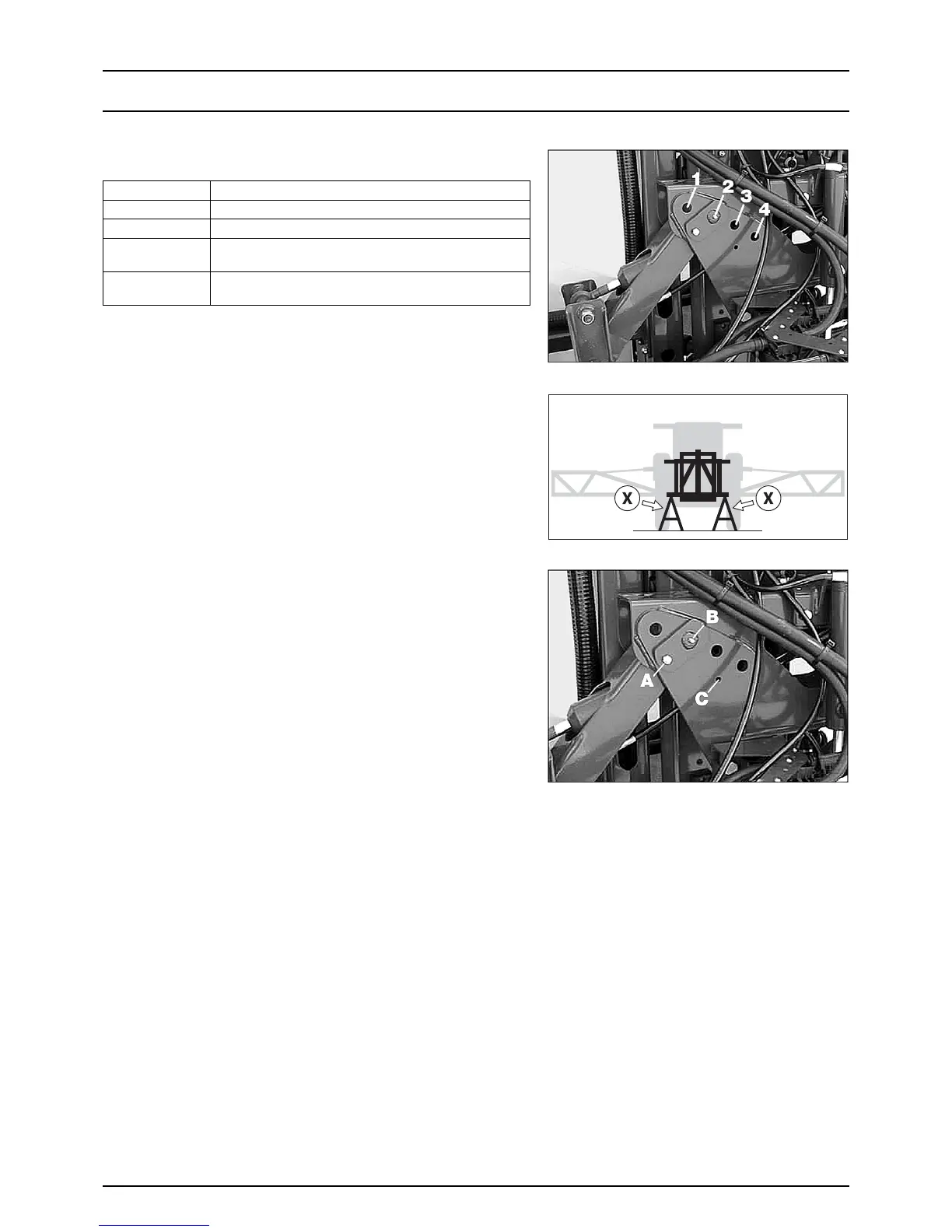

Suspension Effect Adjustment
In order to adjust the behaviour of the boom, the trapeze has 4 settings.
How to change the setting
1. Unfold and support the centre section (X).
2. Loosen the locking bolt (A).
3. Remove the cross pin + split pin (B).
€
DANGER! Do not remove the cross pin, unless the boom is fully
supported in a safe way!
4. Place (B) in new setting position (1-4).
5. Fasten bolt in locking hole (A) again.
μ
ATTENTION! The locking bolt is mounted in the opposite hole
from the cross pin + split pin. Locking bolt in position A, when
using hole 1 or 2, and locking bolt in position C, when using hole
3 or 4.
Carry out similar adjustments to both sides of the trapeze.
Setting Behavior
1 For use on uneven ground with many obstacles.
2 All-round standard setting (Factory setting).
3 Slightly slower moving trapeze. Good at following slopes, but less
compensating for obstacles.
4 Very slow moving trapeze. For use on even ground and slopes where
there are no obstacles.
