8 - Technical specifications
Dimensions
General Info
All dimensions, values and weights are depending on mounted options and specific adjustments.
Overall Dimensions
÷

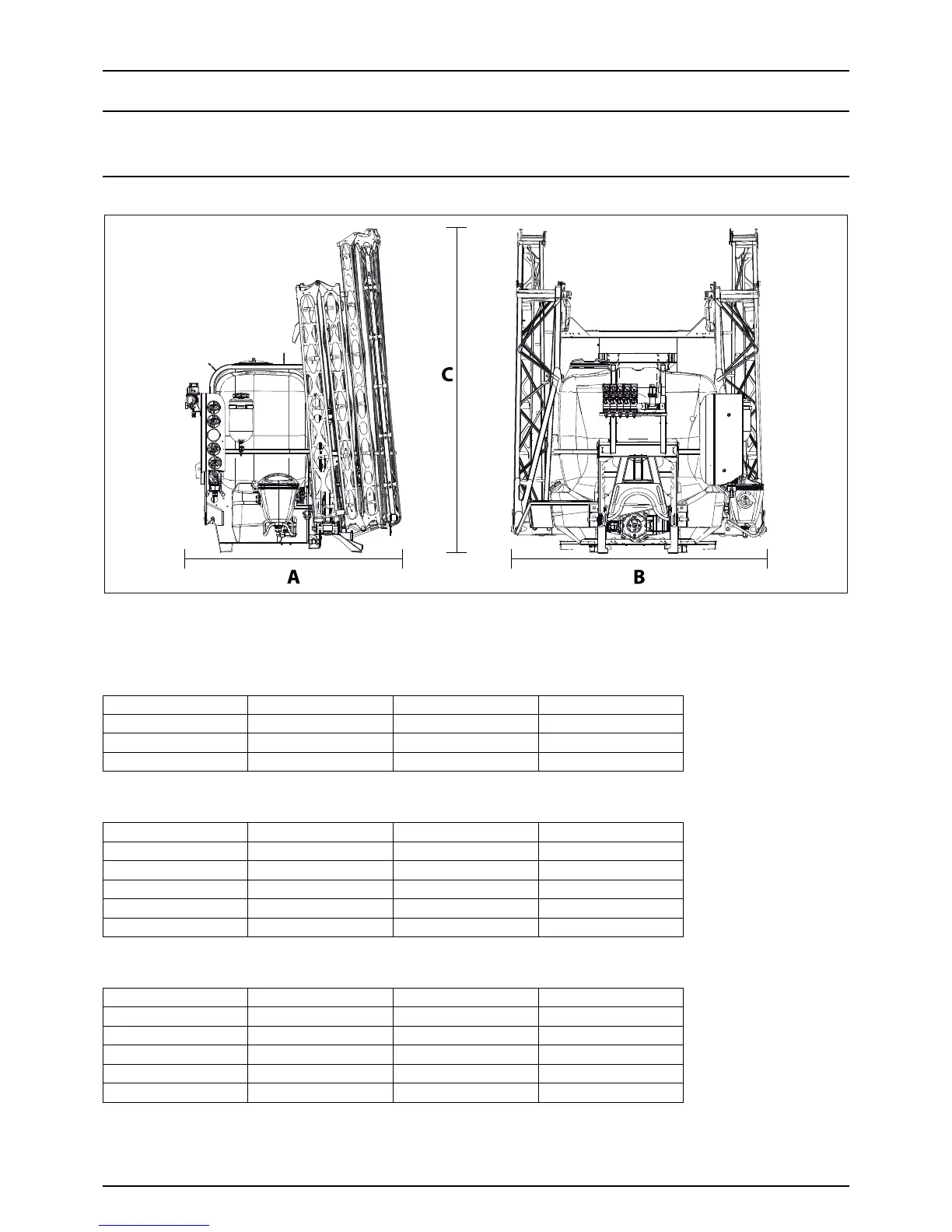

The sprayer equipment shown on the illustration above might differ slightly from the actual sprayer.
Tank 1200 litres:
Tank 1500 litres:
Tank 1800 litres:
Boom width A - Total length, mm B - Total width, mm C - Total height, mm
20 m 2200 2500 2900
21 m 2200 2500 2900
24 m 2200 2500 3250
Boom width A - Total length, mm B - Total width, mm C - Total height, mm
20 m 2380 2500 2900
21 m 2380 2500 2900
24 m 2380 2500 3250
27 m 2380 2500 3260
28 m 2380 2500 3260
Boom width A - Total length, mm B - Total width, mm C - Total height, mm
20 m 2380 2500 2900
21 m 2380 2500 2900
24 m 2380 2500 3250
27 m 2380 2500 3260
28 m 2380 2500 3260
