4 - Sprayer Setup
39
Electrical Connections
Installation of Control Unit Brackets

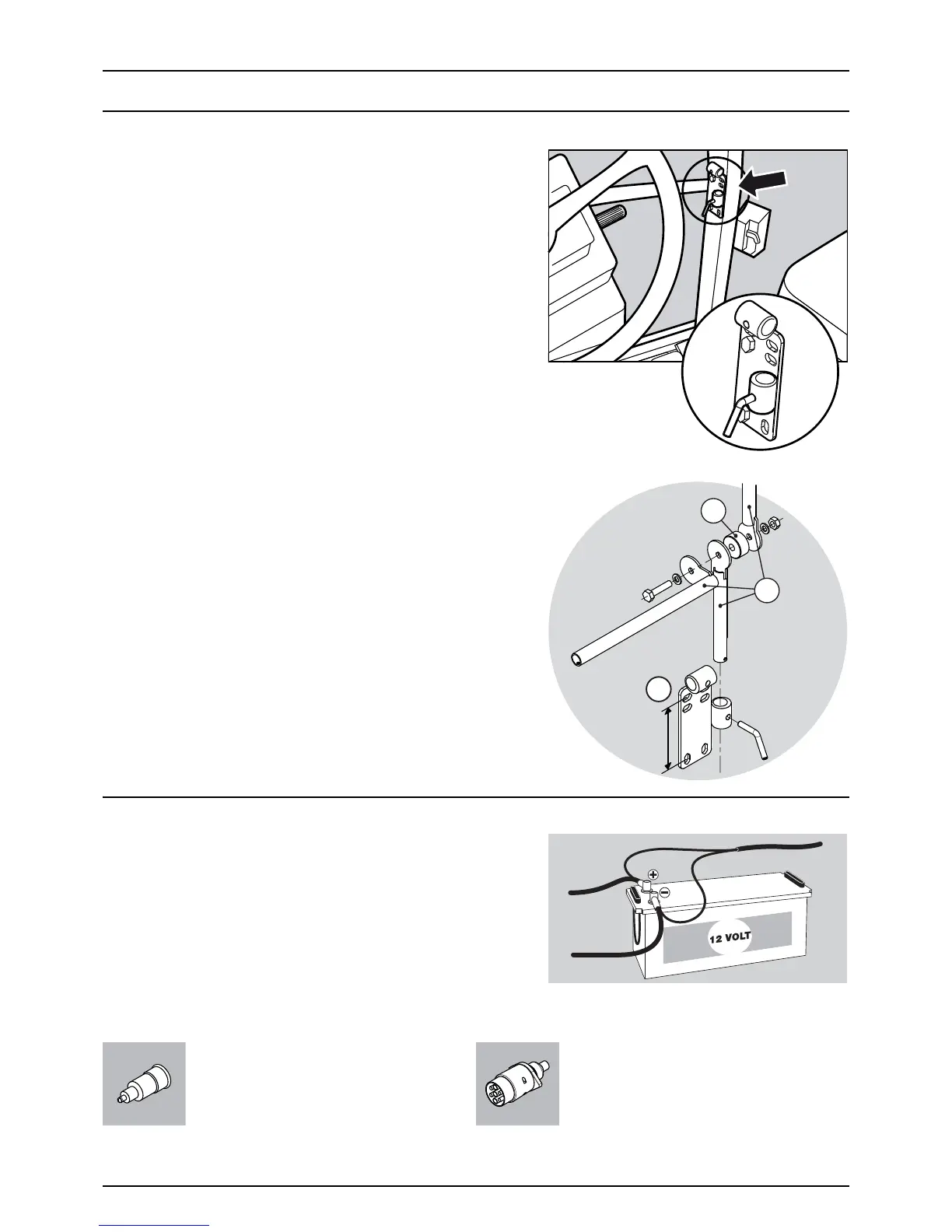

Find a suitable place in the tractor cabin to mount the control units. Best
recommended position is to the right of the driver seat.
The supplied tractor pillar bracket (A) has a hole spacing of 100 and 120
mm, which fits most tractors. Threaded mounting holes may be hidden
behind front corner cover. Check the tractor’s instruction book for
information regarding attachment points.
Three mounting tubes (B) are supplied. One, two or all three may be
used. They can be bent and shortened. A spacer (C) is also supplied to
allow further attachment possibilities. Find the best solution for your
tractor or vehicle.
Tube (B) plate is staggered so that, if correctly orientated, all boxes will
line up.
μ
ATTENTION! See also the controllers instruction book for further
details of fitting the controller equipment.
Power Supply
Power requirement is 12V DC. Always note polarity! For proper function
of the electric equipment, the wires must have the following
recommended cross sectional areas and correct fuses to ensure a
sufficient power supply.
The delivered power connectors follows the standard of most modern
tractors. If you have a tractor with another power connector, it is
necessary to disassemble the connector and fit it to the actual tractor
connector.
The number and the type of connectors may vary on the specific
sprayer, depending on its equipment.
Cigar connector
Spray control unit requires:
Wire 2.5 mm
2
, Fuse 10 Amp
Hydraulic control unit requires:
Wire 4.0 mm
2
, Fuse 16 Amp
7-Pole traffic light connector
