3 - Description
25
Dilution Kit (optional)

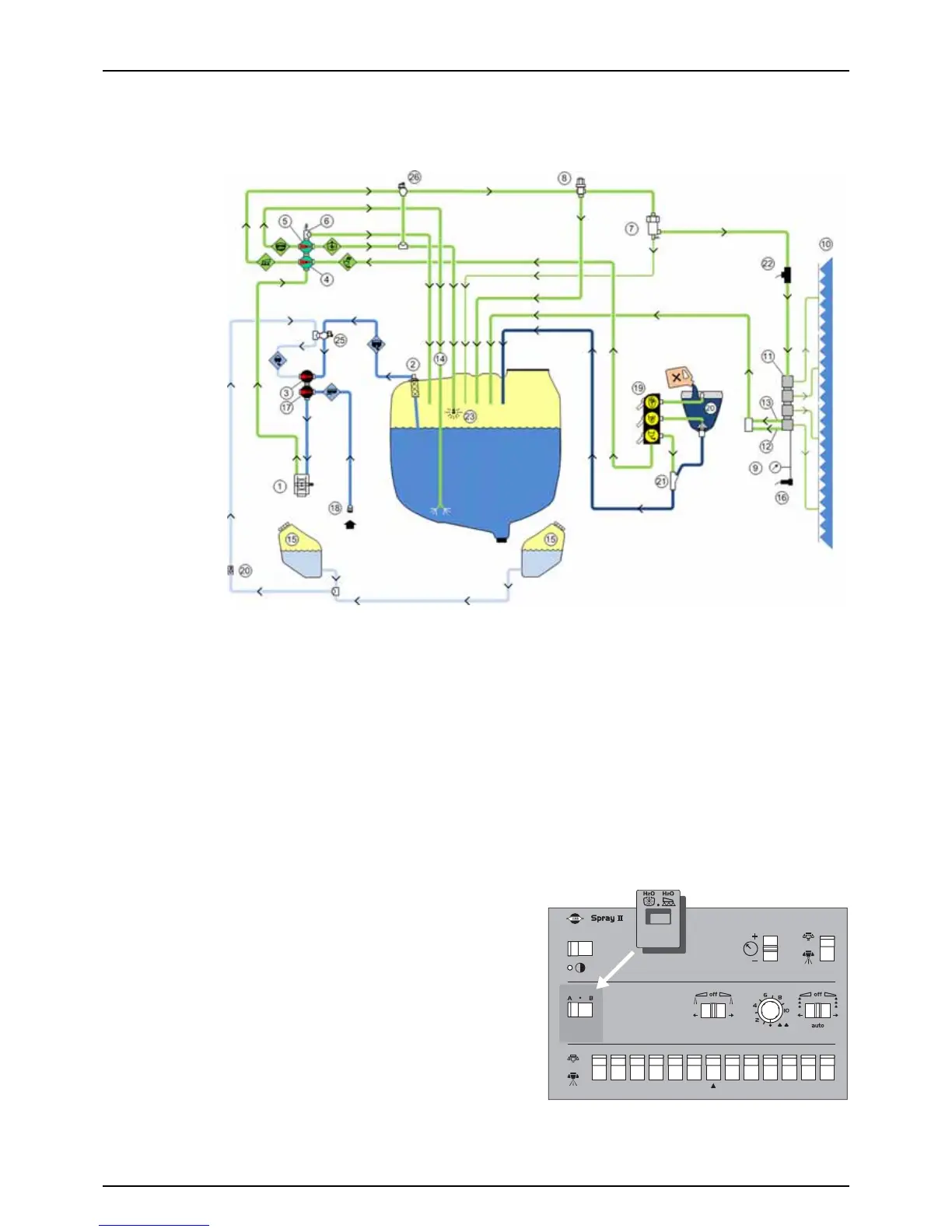

The dilution kit is a built-in system consisting of the two valves (no. 25 and 26 below) added to the liquid system, enabling
the liquid to be redirected from the rinsing tanks into the main tank and piping to dilute the spray liquid residues.
The dilution kit will ease diluting of chemicals in main tank or boom piping done from the drivers seat, while driving in the
field. This can be useful when interrupting a spray job, e.g. because of rain or before the tank has to be refilled at the farm.
The dilution kit has two functions which are selected from the optional function switch on the Spray Box in the tractor.
• Tank dilution: Dilute boom piping and the main tank at the same time.
• Boom dilution: Dilute the boom piping only.
÷
NOTE! The dilution kit is NOT a rinsing device. For rinsing the sprayer, please see the section “Cleaning” in this book.
÷
NOTE! Dilution of chemical residues may be required by law in certain situations before returning to the farm for filling
or cleaning. Please familiarize with applicable rules and follow these.
Dilution kit label
As the Dilution kit uses the optional function switch on the Spray Box, a
label (HARDI item no. 97617800) has to be fitted before use. The label is
to easily recognize, which function of the Dilution kit is to be selected.
Place the label around the switch used for optional functions, as shown
on the picture.
