Hardi Master Plus User Manual

3 - Description
23

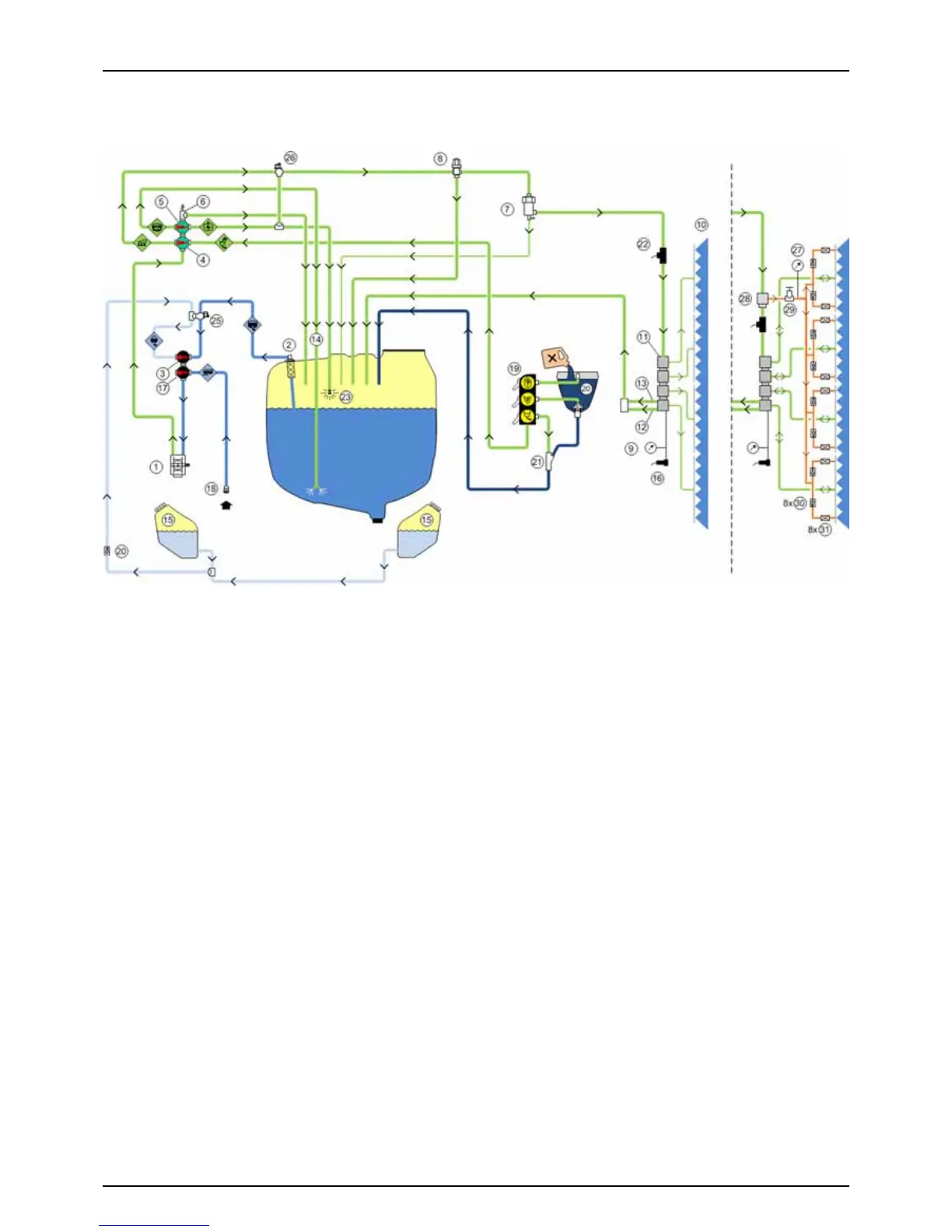

Diagram - Liquid System with Options
BoomPrime system
1. Pump
2. Suction Filter
3. Suction Valve
4. Pressure Valve
5. Agitation Valve
6. Safety Valve
7. Self-Cleaning Filter
8. Pressure Regulation
9. Pressure Gauge
10. Spray Boom
11. Distribution Valves
12. Return - Pressure Drop
13. Return - Pressure Equalization
14. Agitation Tube
15. RinseTank
16. Pressure Sensor
17. Filling Valve
18. Filling Coupler
19. Valve Block for TurboFiller
20. TurboFiller
21. Ejector for TurboFiller
22. Flowmeter
23. Tank Rinsing Nozzle
24. One-Way Valve
25. Dilution Valve for Suction
26. Dilution Valve for Rinsing
27. Pressure Gauge
28. Bypass Valve
29. Pressure Control Valve
30. One-Way Valve
31. Restrictor
