6 - Maintenance
88

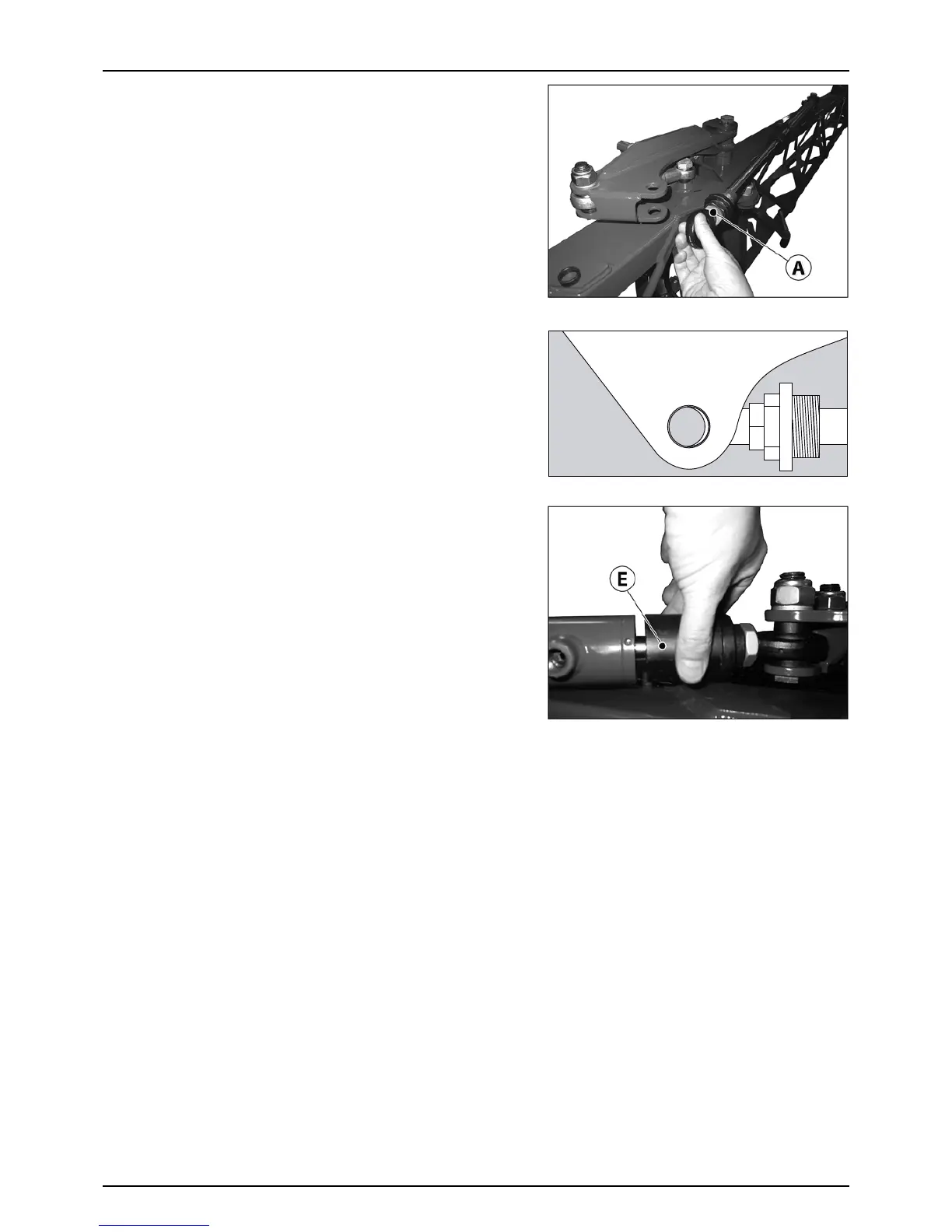

9. Adjust the piston rod end (A) further out with one turn
(approximately 2 mm). Tighten the counter nut again.
10. After adjustment, looking through the hole, it should look like this.
The piston rod is a little too long when fully extracted.
11. Fit cylinder arm (A) to the lock bracket again (B).
12. After adjustment, the lock mechanism should be in locked
position, when the cylinder (A) is fully extracted.
13. Fold the boom to horizontal transport position (half the folding
procedure).
14. Adjust the cylinder stop (E), so that it is just touching the cylinder
housing.
