Chapter 5 Maintenance and Troubleshooting Power Supply
© 2015 Harmonic Inc. All rights reserved. 44 Electra 9200, Rev O
4. If the power supply on the right is being replaced, use a Phillips-head screwdriver to
remove the bracket attached to the inside of the chassis on the right side, as shown in
Figure 5–8.

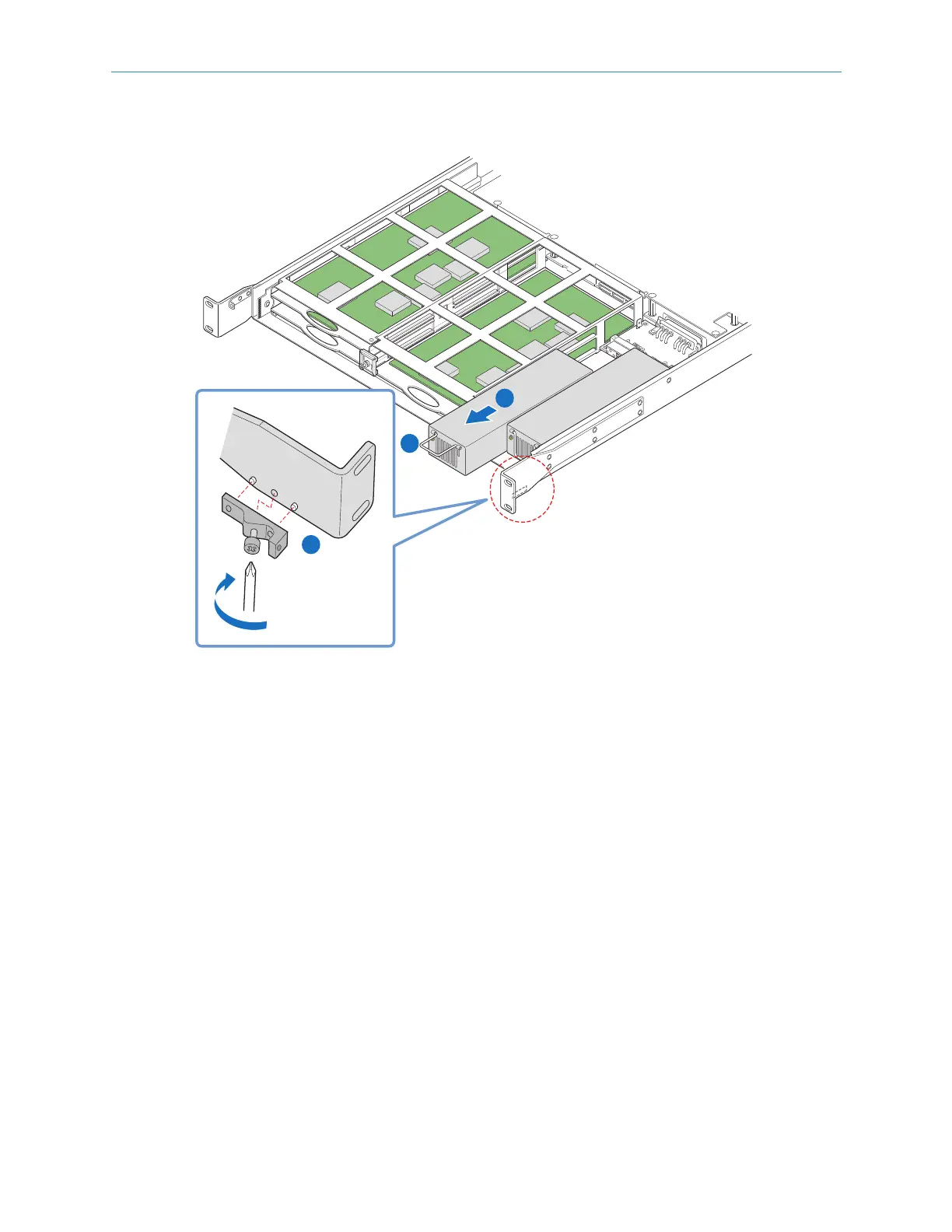

Figure 5–8: Removing the Power Supply
5. Grasp the metal handle on the front of the power supply unit and pull firmly to disengage
the power supply from the connector, as shown in Figure 5–8.
6. Slide the power supply away from the unit.
4
5
6
(RN-14)
