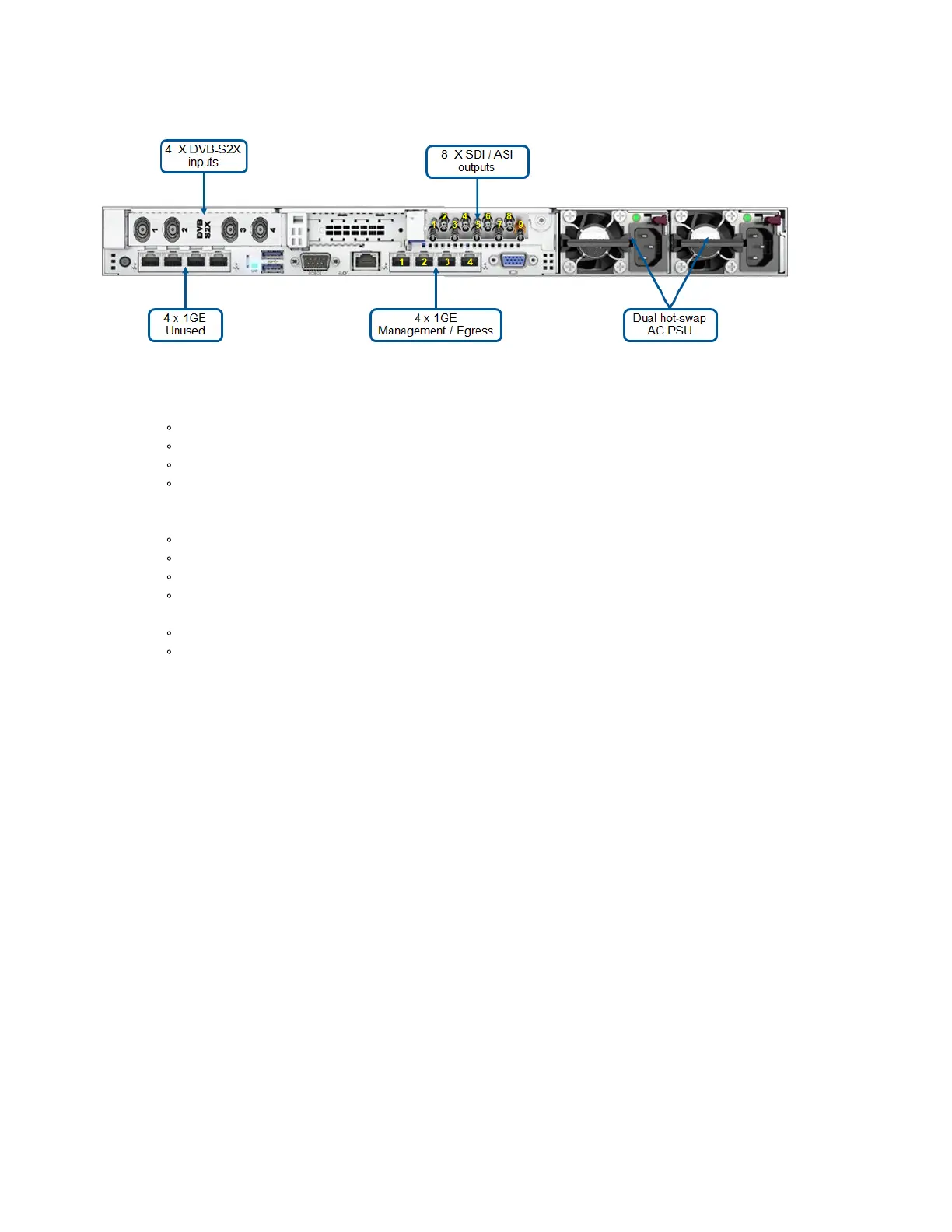

Two hot swappable AC Power supplies.
The VGA and the USB ports are only used to set the Management IP address.
Four 1GbEports:
Port 1: Connected to management network.
Port 2: Not used.
Port 3: Connected to the data network switch
Port 4: Optional. Connected to the backup data network switch.
Network interface card (NIC) on the left: Not used
Four DVB-S2X RF ports:
Port 1 (RF input 1): Connected to the satellite downlink, to receive transponder WM-20.
Port 2 (RF input 2): Connected to the satellite downlink, to receive transponder WM-21.
Port 3 (RF input 3): Connected to the satellite downlink, to receive transponder WM-18.
Port 4 (RF input 4): Connected to the satellite downlink, to receive transponder WM-19.
Eight SDI/ASI ports + Genlock port:
Ports 1 to 8 (ASI or SDI outputs): depends on configuration.
Port 9 (Bi/tri-level genlock input): Not used.
