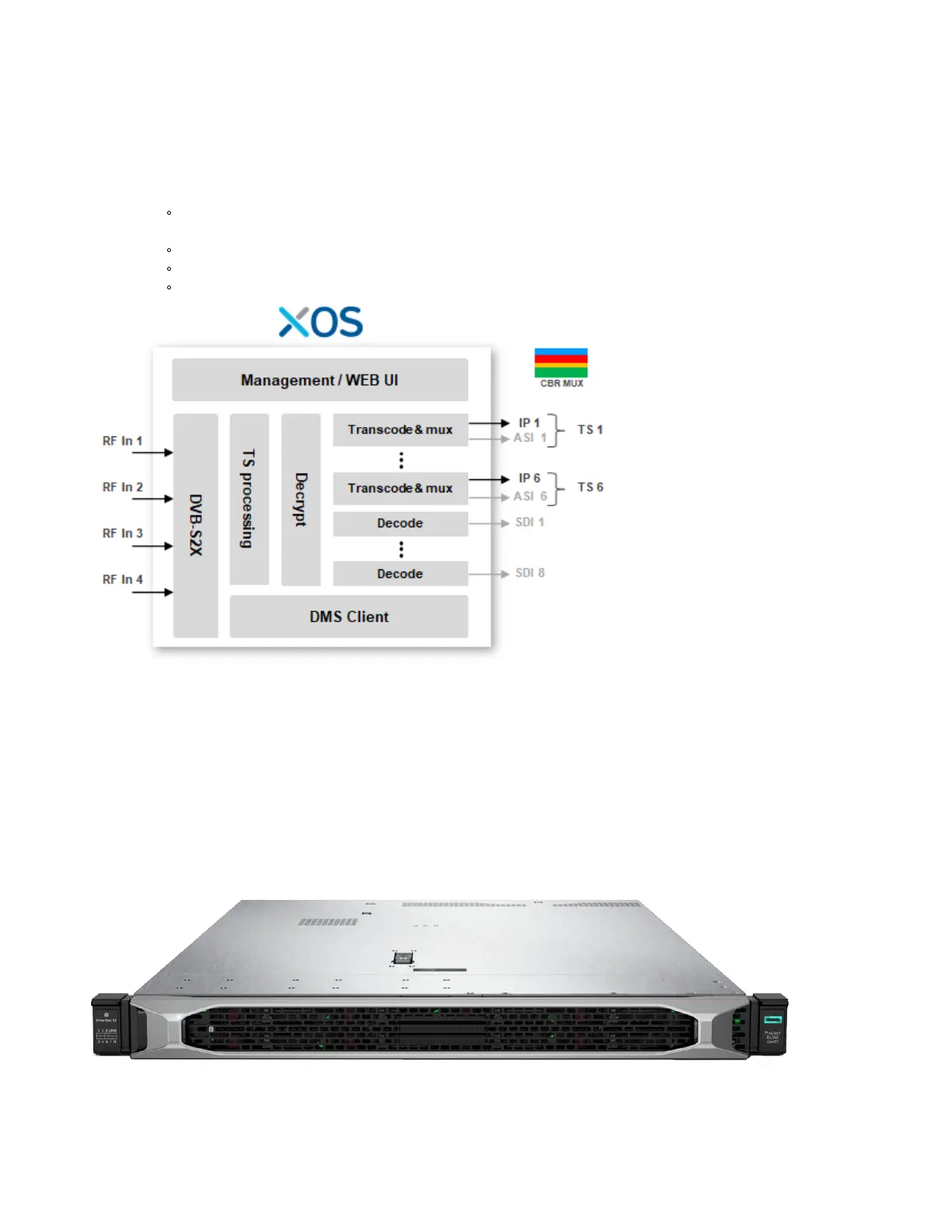

TS Processingextracts services and signaling.
Decryptdescrambles entitled services.
Transcode & Mux generates constant bit rate (CBR) multiplexed output.
DMS client handles over-the-air configuration and upgrade.
Management / WEB UI provides the interface for the following functions:
Extracting the XOS configuration, sent in a transport stream (TS) over satellite, and applying it when
required.
Checking the radio frequency (RF) parameters.
Management of output services.
Monitoring and troubleshooting.
XOS hardware configuration
The hardware is composed of:
1 x XOS server platform
1 x DVB-S2X card
1 x SDI / ASI card
2 x 1GEth card (4 ports)
1 x SIM card reader for CAS inside the chassis
