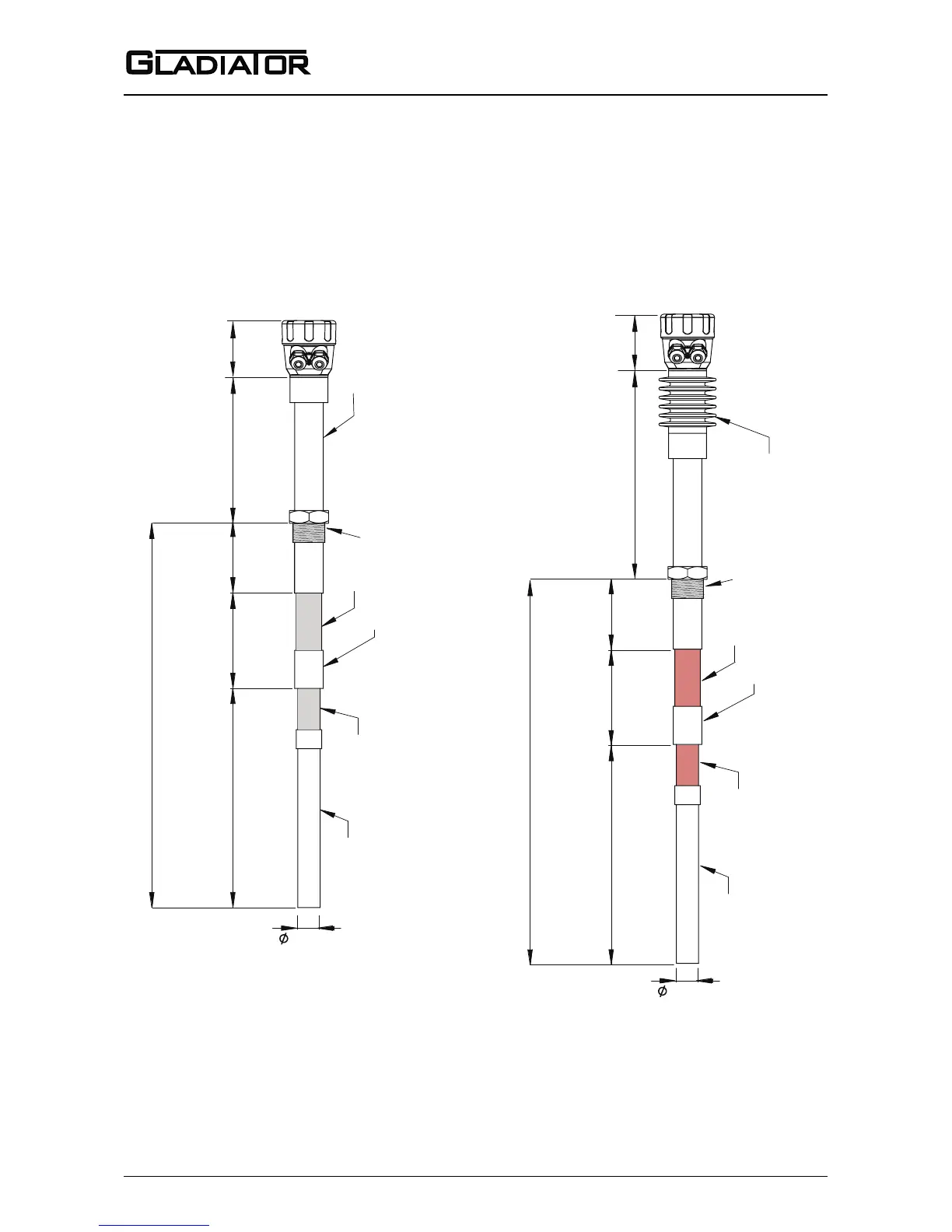

DIMENSIONS
HIGH TEMPERATURE PROBES
HIGH TEMP PROBE (<250°C, <482°F) HIGH TEMP PROBE (450°C, 842°F)
Probe length
150mm
(5.9”)
Guard
Active
Element
Temperature extension
100mm
(3.9”)
Ground
Teflon
Teflon
Max 150ºC (302ºF)
Max 250ºC (482ºF)
SS 316
SS 316
SS 316
16mm (0.6”)
Mounting Thread
Ø90mm (3.5”) L100mm (4”)
Aluminium heat sink
Ceramic
Ceramic
Max 450ºC (842ºF)
SS 316
SS 316
36mm (1.4”)
329mm (13”)
Probe length
150mm
(5.9”)
Guard
Active
Element
100mm
(3.9”)
Ground
Mounting Thread
(1.5” NPT or BSP only)
90mm (3.5”)
90mm (3.5”)
(See page 5 for
temperature extension
options)

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
