HBM A0114-6.3 en
Peak value operating-mode
The peak value operating-mode enables the below values to be acquired:
• minimum value or
• maximum value or
• peak-to-peak values
Use the ”Hold” control contact to hold the store contents.
Store contents
TS101 output
t
V
i
, V
o
HoldRun Run
Function
Operating
mode
Peak value
Current value
Hold

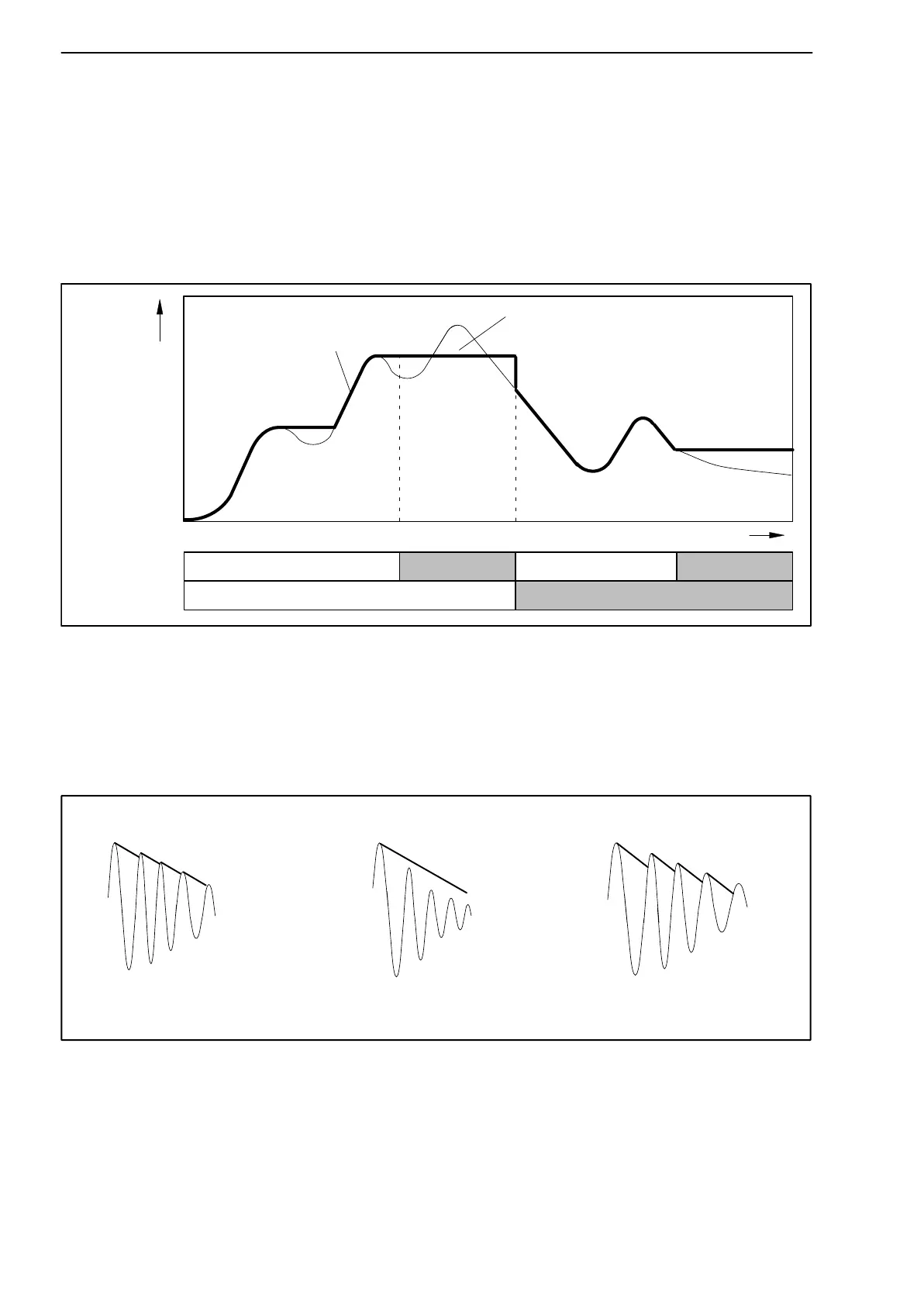

Fig. 5.3: Peak values operating-mode (PEAK)
Upon acquisition of peak values, enabling and adjusting the discharge rate
enables an envelope-curve function to be prepared (Fig. 5.4 and Fig. 5.5). By
adjusting the discharge rate you determine the speed of linear discharging of
the peak-value store to the current value.
Discharge rate: too highDischarge rate: too lowDischarge rate: correct
Fig. 5.4: Envelope-curve function
