35
Clip
HBMA0114-6.3 en
Open control contacts correspond to the ”Low” state (”Peak values” operating
mode; ”Run” function).
The RDY control output (terminal 6) signals a valid tare value. The signal level
corresponds to the level of the supplied voltage (15 ... 26 V).

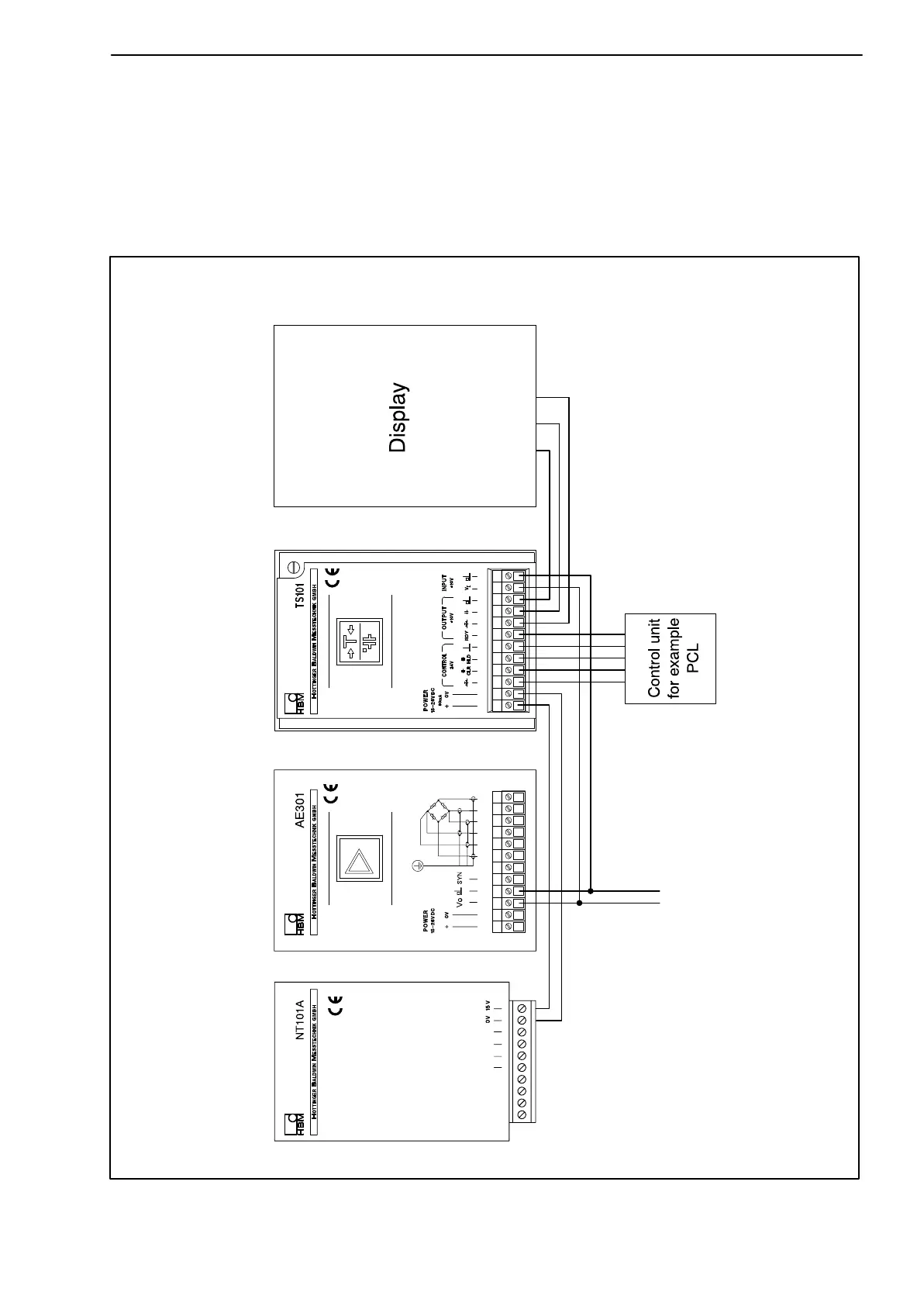

Fig. 5.7 shows the connections required for TS101 operation. For the terminal
assignment refer to table Tab. 5.1.
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
Output
1234567891011122’3’ 124589101112 3
"10 V/5 kΩ
Fig. 5.7: TS101 connection (example)
