16
PME-MP60/MP07
A0616-13.4 enHBM

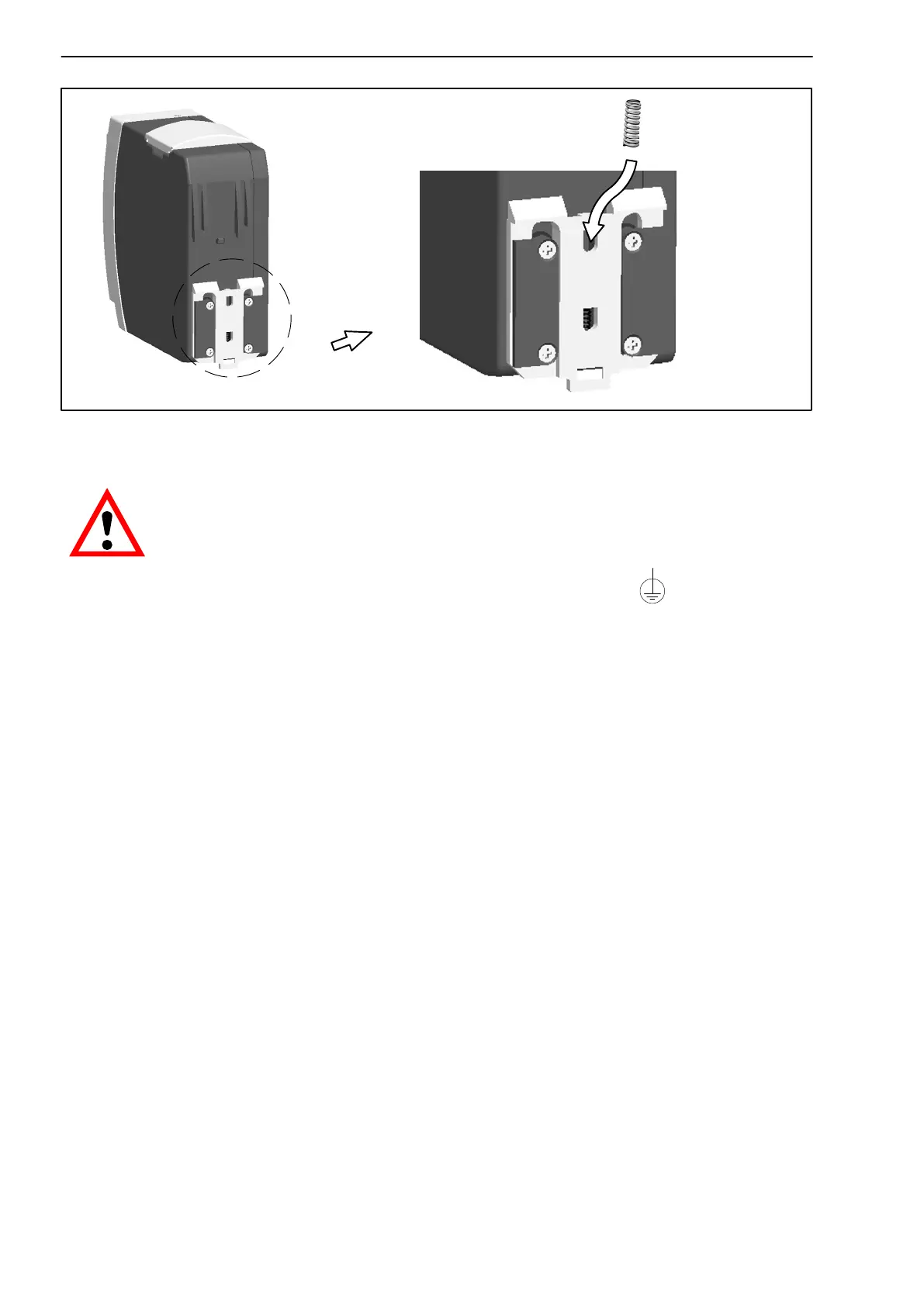

Fig. 3.3: Fitting of a second spring fore more stable mounting of the module on the
DIN rail
CAUTION
The support rail must be on protection circuit potential .
