HBM MP60 - Introduction; Scope of supply and accessories; General

9
PME-MP60/MP07
A0616-13.4 en HBM
1 Introduction
1.1 Scope of supply and accessories
Scope of supply:
D 1 MP60 module or 1 MP07 module
D For the MP60: 3 x 6-pin terminal plugs, coded
Order No.: 3.3312−0427 (terminal plug 3);
3.3312−0428 (terminal plug 4); 3.3312−0426 (terminal plug 1)
D 1 flat ribbon cable connector, 10-pin
D Additional spring for assembly of housing (enclosed in bag)
D 1 operating manual for MP60/MP07 module
D For the MP07: shielded MP60-MP07 connector cable,
Order no.: 2-9269.0226
Accessories:
D Standard ribbon cable, 10pin, 1.27 mm pitch
1.2 General
MP60 module:
The MP60 module, from the PME product line, is a frequency measurement
module intended for connecting incremental transducers, frequency
generators and HBM T10F-SF1 and T10F-SU2 torque flanges.
The MP60 module is set up and parameters assigned via the keyboard and
display or with the aid of the PME Assistent. The PME Assistent gives you a
simple operator interface under MS-Windows for assigning parameters to the
modules (described in the ”PME Assistent” online help).
Keyboard and display
Voltage supply
electrically isolated
24 V
μP
D
A
Counter
Intelligent signal
conditioning,
e.g. limit value switch
MP60 / MP60DP
Scalable
Analogue output
Control inputs
Control outputs
Frequency outputs
CANopen interface
Profibus DP interface
(for MP60DP)
F1
F2
Zero reference
Error

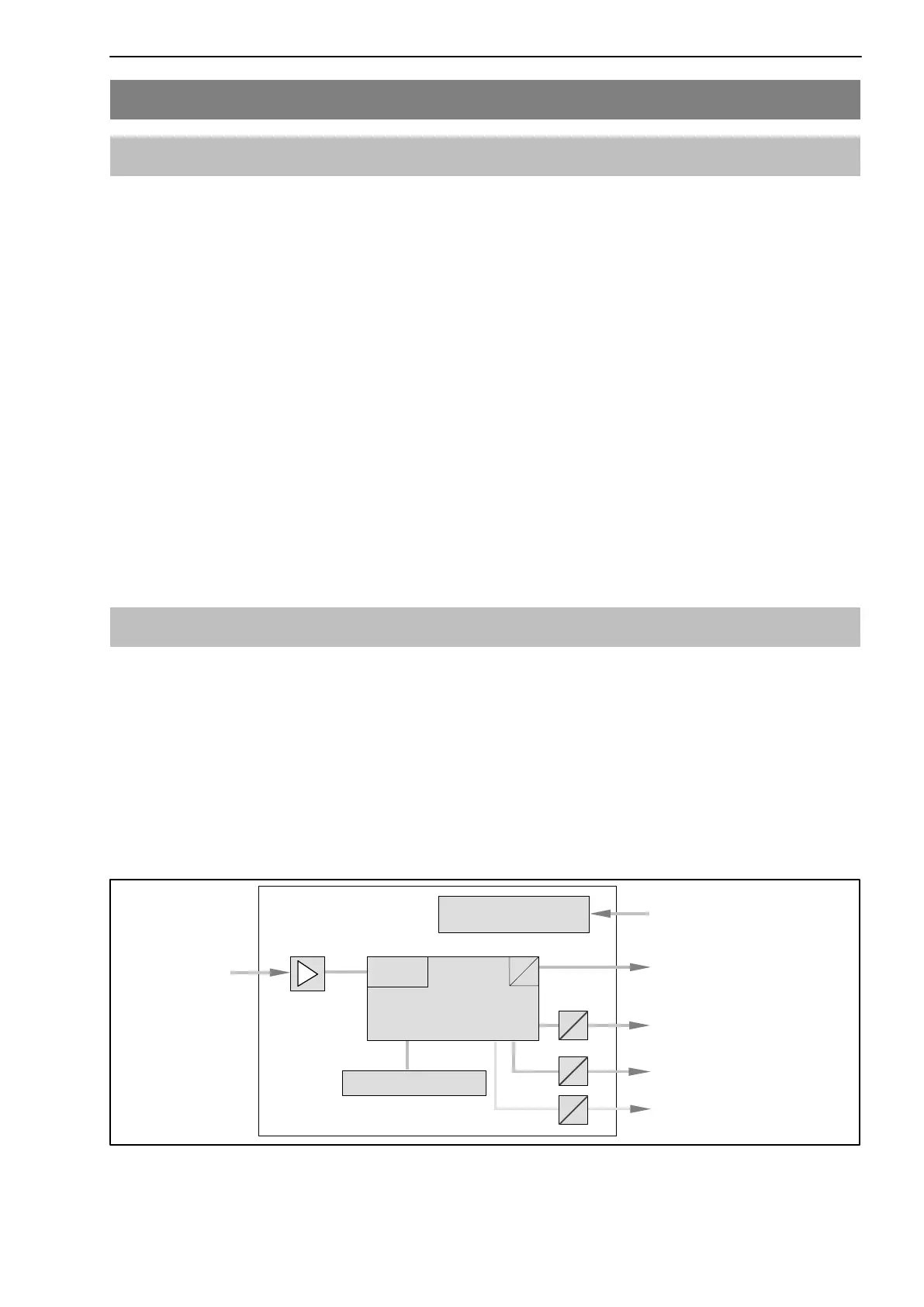

Fig. 1.1: Block diagram of MP60 module
