HBM MP60 - Connecting several modules

17
PME-MP60/MP07
A0616-13.4 en HBM

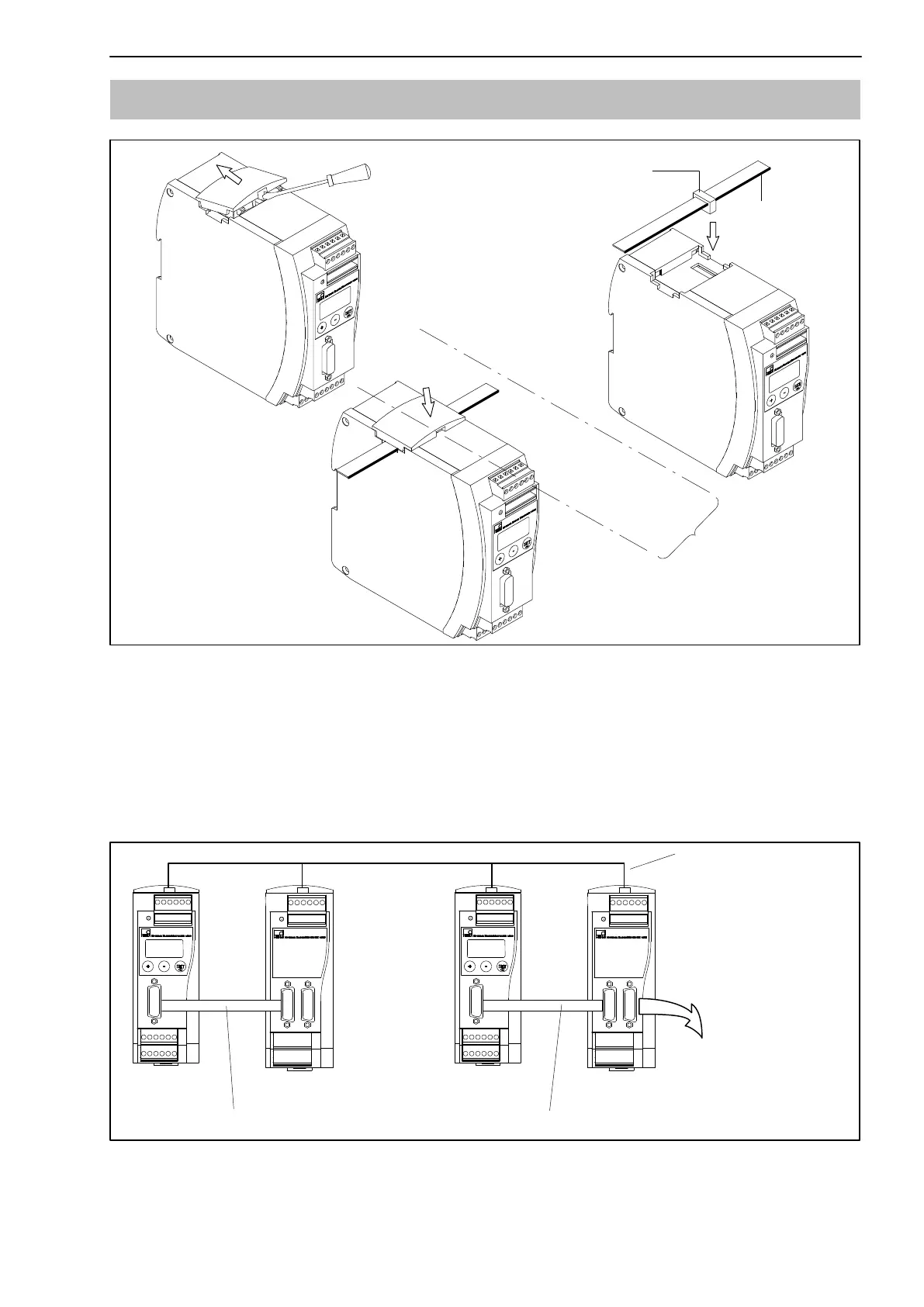

3.1 Connecting several modules
1.
2.
3.
Colour coding
at Pin 1
Flat ribbon cable connector
Recommended
spacing of flat ribbon
cable connectors
Subsequent devices are
interconnected via this connector.
58mm
Fig. 3.4: Connecting the flat ribbon cable
Several MP60 or MP07 modules may be connected over one flat ribbon
cable. This cable is used for local connection of the supply voltage and
synchronization between the modules. You should not interconnect more than
8 modules with one flat ribbon cable.
Connect MP60 to MP07
MP60 MP07
Flat ribbon cable,
Product number 171
(see Accessories)
MP60 MP07
Transducer shaft
Shielded MP60-MP07 connector cable, Order no.: 2-9269.0226
Fig. 3.5: Connect MP60 and MP07 with shielded cable
