5.4 Example: measuring Md and N with torque
transducer T10F (24 V supply)
Both the T10F and the MP60 are set to symmetrical signals at the factory.
Torque measurement
Measurement preparation:
" Use the standard cable md-cab149.
" Connect the 24 V external supply voltage to terminal plug 4 as well (see
page 19).

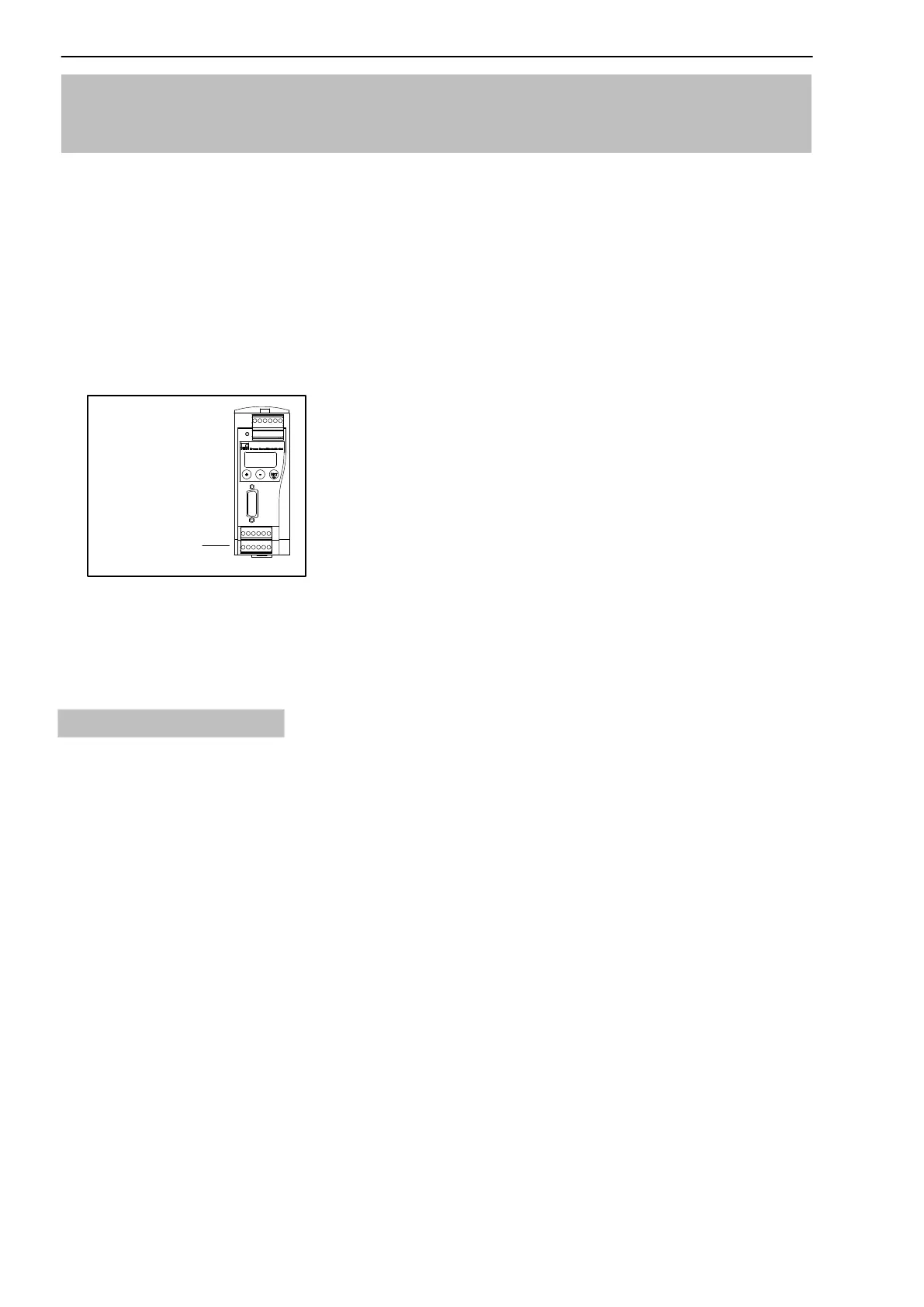

Terminal plug 4
" Connect the transducer (see Connection A, page 22)
" No DIP switch position changes!
Enter T10F characteristic values:
Group: TRANSDUCER
Unit: kNm
Input range: 100 kHz
F2 OFF
Zero index (+) OFF
Frq x 4 OFF
Direction of rotation OFF
Switching threshold 2.5 V
Glitch filter ON
Zero kHz 10
Zero kNm 0
NVal kHz 5 kHz
NVal kNm 100 kNm (see transducer identification plate)
Trans Err OFF
