PME-MP60/MP07
A0616-13.4 enHBM
4.2.1 External supply voltage for control outputs (MP60)
Example: PLC connection
OUT3
24 V*
0 V*
max. 100 mA
MP60 module
PLC
Relay
0 V*
max. 100 mA
OUT1
Terminal plug 4
24V

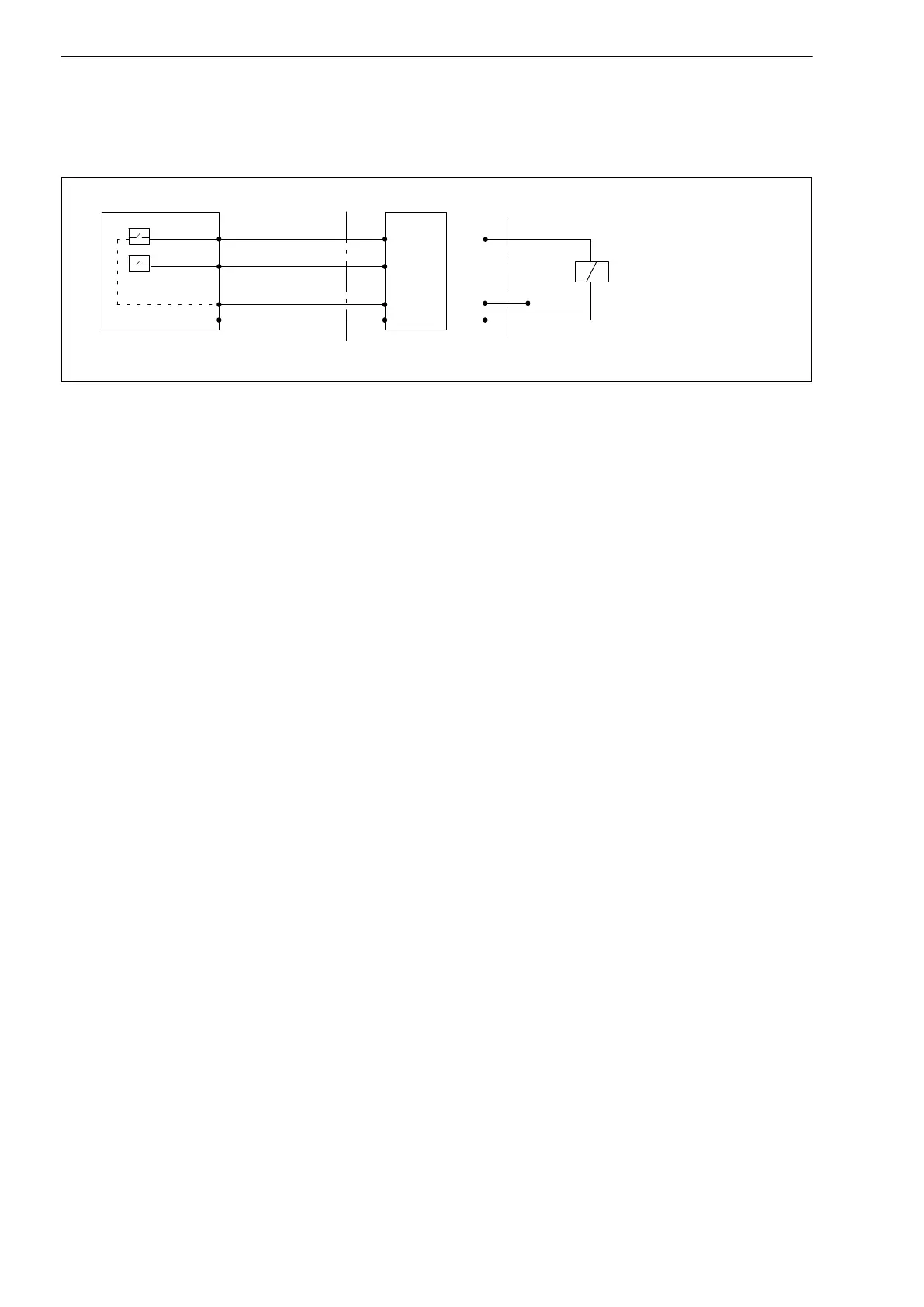

Fig. 4.2: Connection to a PLC
Control inputs are provided at terminal plug 3 and control outputs at terminal
plug 4, and are electrically isolated internally from the supply voltage (see also
Chapter 6, ”Declaring the significant parameters” page 44).
*
)
The control outputs must be supplied with an external voltage (ground and
24 V [maximum +30 V]).
