HBM MP60 - Supply voltage MP07

21
PME-MP60/MP07
A0616-13.4 en HBM
4.3 Supply voltage MP07
Connection
for MP60
*)
1
8
9
15
1
8
9
15
Connecting a torque
transducer
*)
Connect voltage supply
The MP07 module must be connected to an external voltage supply of
18-30 V
DC
(24 V
nom.
).
Warning
D Twist wires of the voltage supply and fit end sleeves for strands.
D Screw ends of conductors to terminal plug 1.
D Insert terminal plug in top socket.
D Switch on voltage supply.
0 V
24 V
Label
Terminal plug 1
M
P
6
0
S
E
N
S
O
R
Voltage supply
MP07

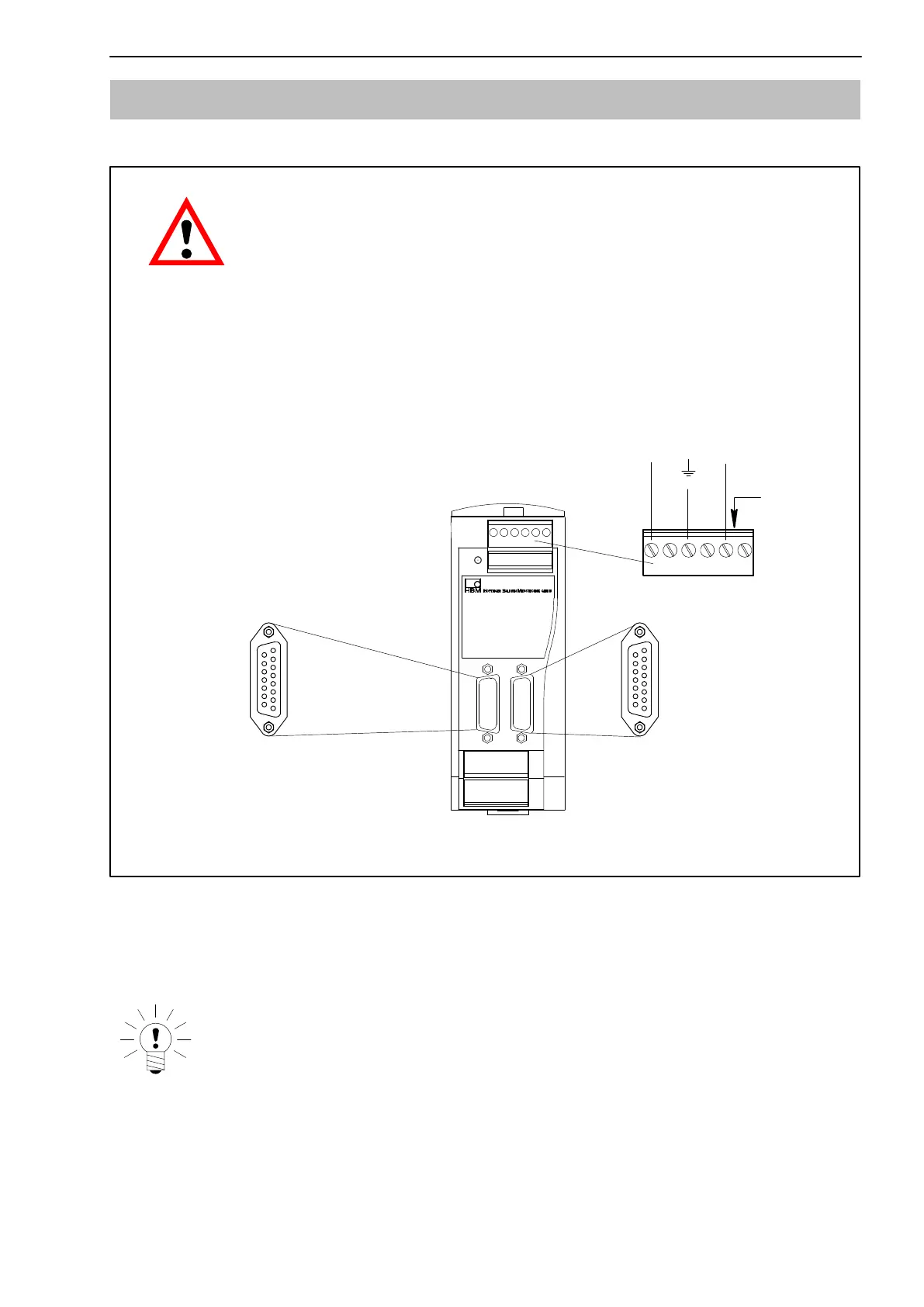

Fig. 4.3: Pin assignment for terminal plug 1
*)
See Chapter 4.4
NOTE
Use standard HBM cable for the transducer connection. When using
other shielded, low-capacitance measuring cable, connect the trans-
ducer cable shielding to the connector housing in accordance with the
HBM Greenline concept (Internetdownload http://www.hbm.com/Green-
line). This ensures EMC protection.
