19
PME-MP60/MP07
A0616-13.4 en HBM
4.2 Supply voltage and control inputs/outputs MP60
Four removable terminal plugs are provided for connection.
0V
SYN
Analogue OUT
±10 V
±20 mA
4...20 mA
IN1
IN2
IN3
IN4
0 V
24 V
OUT1
OUT2
OUT3
OUT4
Terminal plug 3
Terminal plug 4
LH
Terminal plug 1
IN = Digital input OUT = Digital output
You will find more about inputs and outputs in Chapter 6, page 44.
CAUTION
In the event of a power failure on the MP60 module, all
control outputs are set to 0 V.
24 V
Label
Label
Label
Terminal plug 2
Connect voltage supply
The MP60 module must be connected to an external voltage supply of
18-30 V
DC
(24 V
nom.
).
Warning
D Twist wires of the voltage supply and fit end sleeves for strands.
D Screw ends of conductors to terminal plug 1.
D Insert terminal plug in top socket.
D Switch on voltage supply.
Voltage supply
MP60

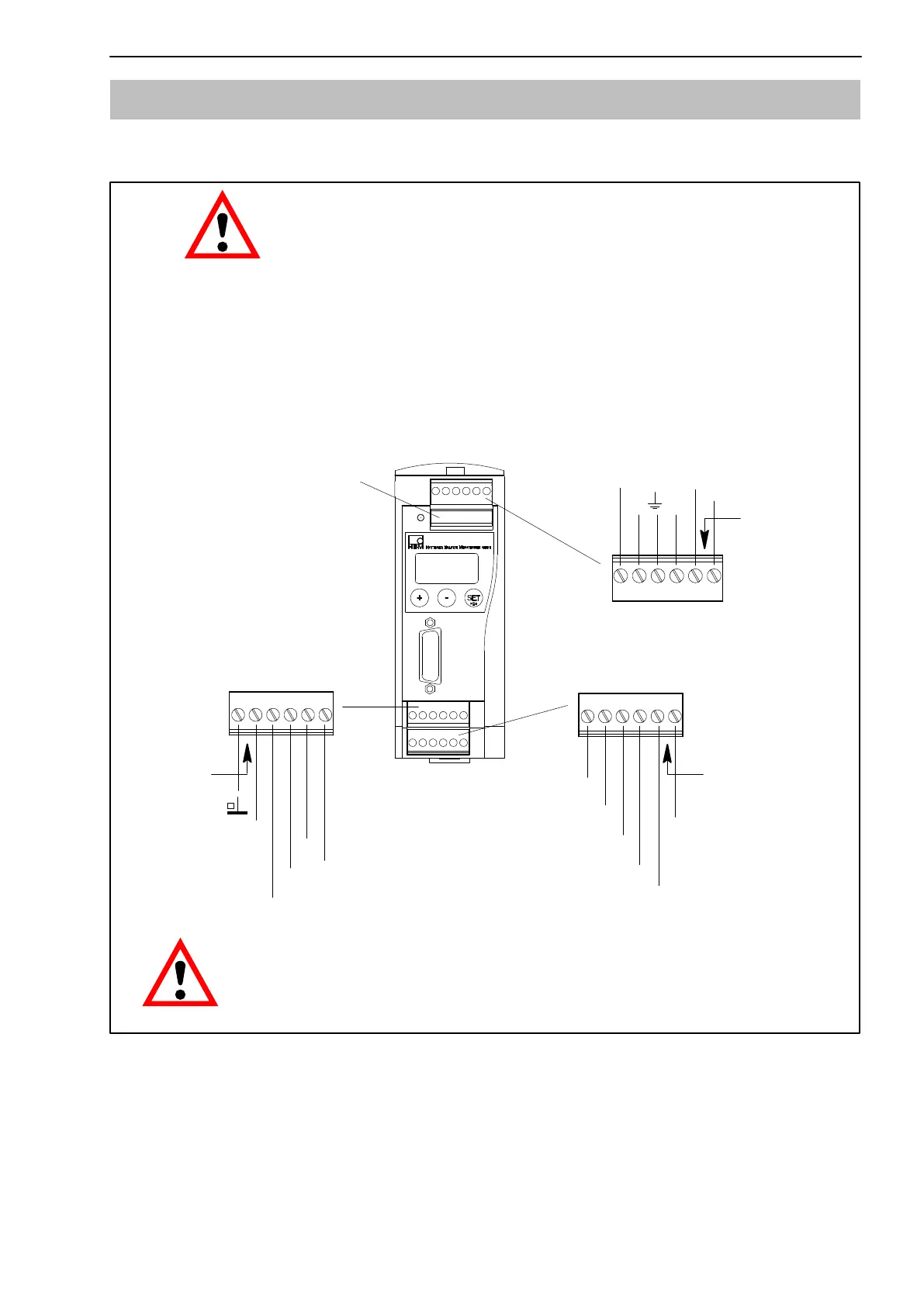

Fig. 4.1: Pin assignment for terminal plugs
The 4 terminal plugs are coded, so they can be inserted in the 4 sockets with
no danger of a mix-up. The sockets are provided with coded lateral guides
and the terminal plugs with coded pins.
