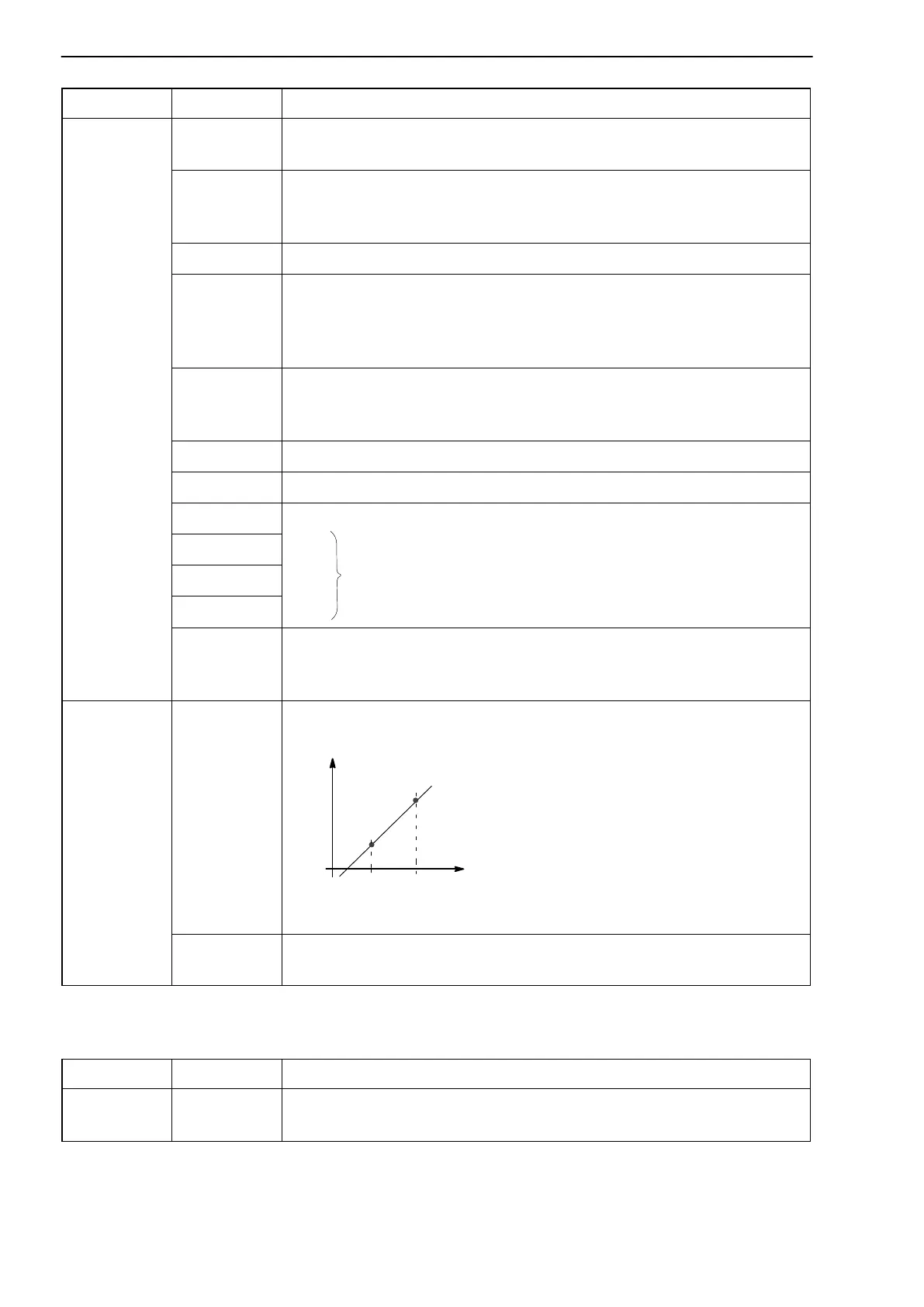

Group Parameters Meaning
TRANS−
DUCER
InpRange 1 MHz, 100 kHz, 20 kHz, 10 kHz, 1 kHz, 5 MImp, 1 GImp
F2
2)
Frequency signal F2 is activated (if rotation speed and
direction of rotation are to be measured, F2 has to be
activated). Signal F2 is 90
o
out-of-phase.
ZeroIndx Zero index: Evaluating the zero signal
Frq x 4 Frequency quadrupling when F2 is activated
(F2 deactivated: frequency doubling). When frequency
quadrupling is enabled, input characteristics must be adapted,
as double the input count is evaluated.
Direct. The direction of rotation information is analysed when F2 is
activated
2)
. A negative direction of rotation as defined by
HBM is shown by a - (minus) sign.
Threshol Switching threshold from which the input signal is detected
GltchFlt Suppresses interference spikes with a duration of t3.2 μs
Zero kHz
Zero kNm
NVal kHz
NVal kNm
Transducer
errors
active
(Enable hardware input for transducer error recognition)
TRANSD.-
CALIBRAT
P1Meas.?
P1 kHz
P1 kNm
1)
Physic.
Unit
kHz
P1
P2
P1Meas.? YES 0kHz
P1 Enter 50 kNm
(physic. unit)
P2Meas.? YES 10 kHz
P2 Enter 70 kNm
Note
:
If
the
zero
point
is
modified,
P1
and
P2
will
be
lost.
Acceptance of signals emitted by transducer in case of defined
loading
Shunt Shunt mismatch On/Off
(automatically switched off after approx. 3 minutes).
1)
Depending on the unit selected
2)
Please refer to the Operating Manual for your transducer
Group Parameters Meaning
CONDITIO
NING
Difference tare/zero: the zero (>0<) affects the gross and
net values. The Tare (>T<) only affects the net value.
Setting input characteristics by using
transducer sensitivity
