Operating the Data Recorder
40 A3169-8.0 HBM: public CX22B / CX22B-W
6.2.3 Connection via WLAN
The connection via WLAN can be implemented in two
different ways:
► You can set up a direct connection to the CX22B‒W
wirelessly from your PC or tablet. This type of connec
tion is known as an Adhoc network .
► You can integrate the CX22B‒W into an existing wire
less network. This requires a configured Access Point
and information regarding the network name, login
and password.
Setting up the CX22B‒W for Adhoc operation

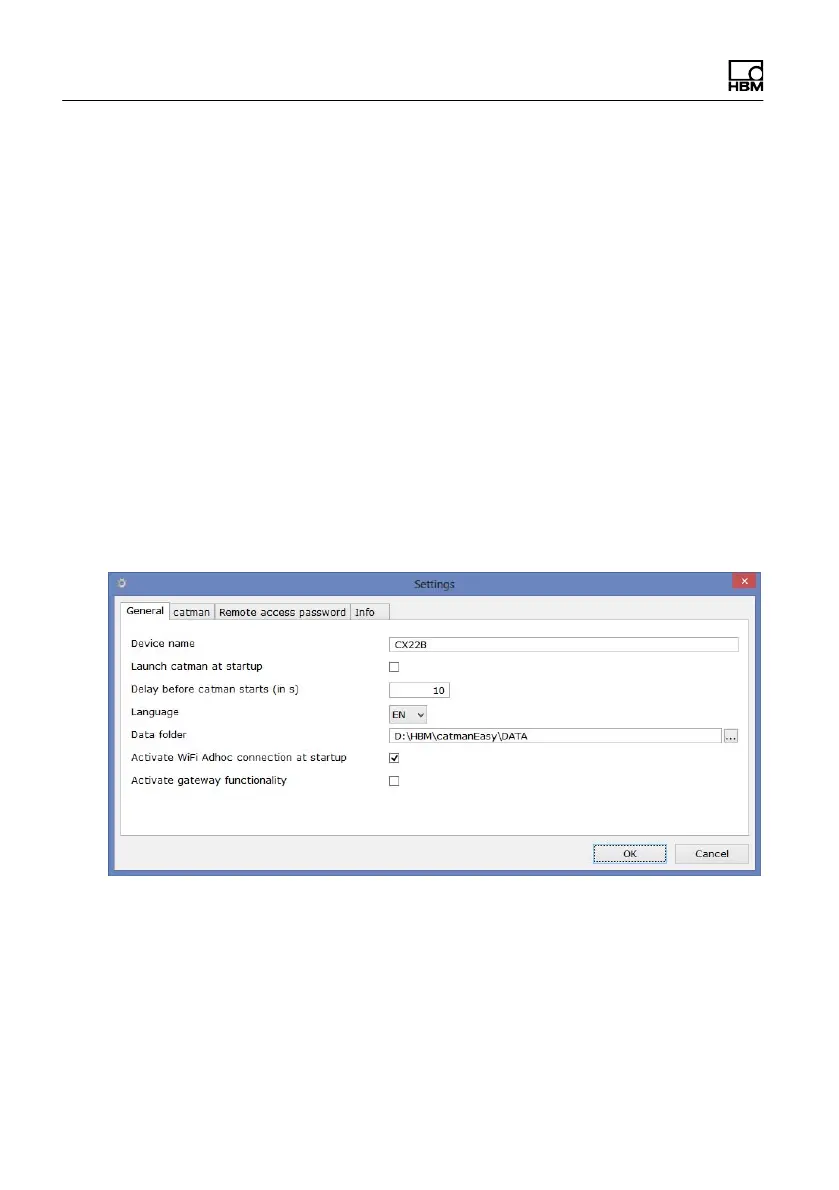

► Make the following setting: Activate WLAN Adhoc
connection on startup
► Save the changes permanently (the Data Recorder is
rebooted after this action. The WLAN connection that
was previously set-up is lost).
► You can then remove the network cable and use your
PC to find the CX22B‒W wireless network and con
nect to it.
